QIPANG PLC control high-speed straightening and cutting machine with servo motor
High-speed straightening and cutting machine configuration parameters
1.Two servo motors, traction 1.5 kW with 1:10 planetary reducer, cut off 1.5 kW
2.Cut-off system plc touch screen electronic cam system
3.Brand of servo motor
4. Body size is 1850mm long, 780mm wide and 1300mm high. Weighs about 498 kg
5.The total weight of the automatic payoff machine is 90 kg
6.Control method has inverter analog control system
7.Dimension of pay-off machine: minimum diameter 250mm and maximum 500mm
8.Payoff machine weight is about 90 kg
9.Speed: the fastest 158 meters per minute
Item | Parameter |
Wire feeding motor | 1.5KW servo motor |
Wire cutting motor | 2.2KW servo motor |
CNC system | PLC |
Wire diameter | 1mm-4mm |
Number of wire feeding groups | 2 groups feeding |
Output speed | 60-100 m/min |
Length error | ±0.5mm |
Wire cutting length | Arbitrary |

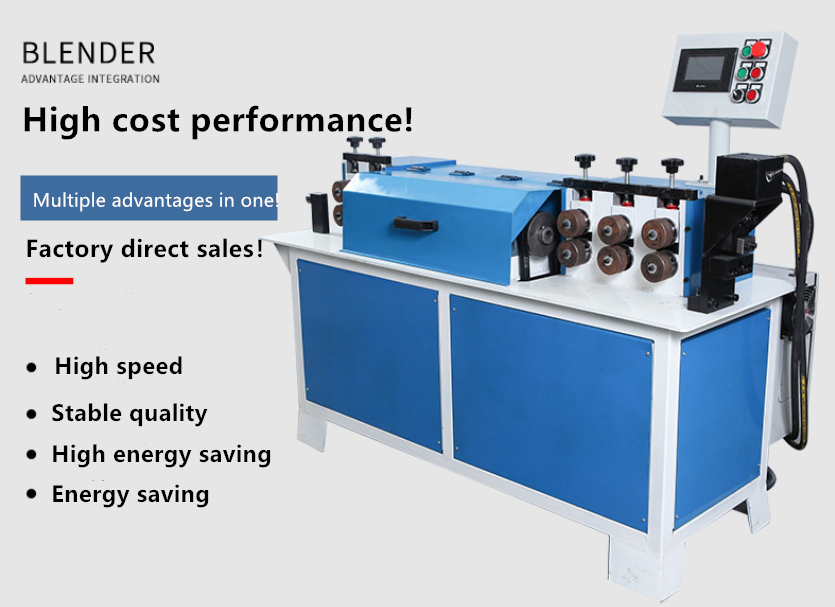

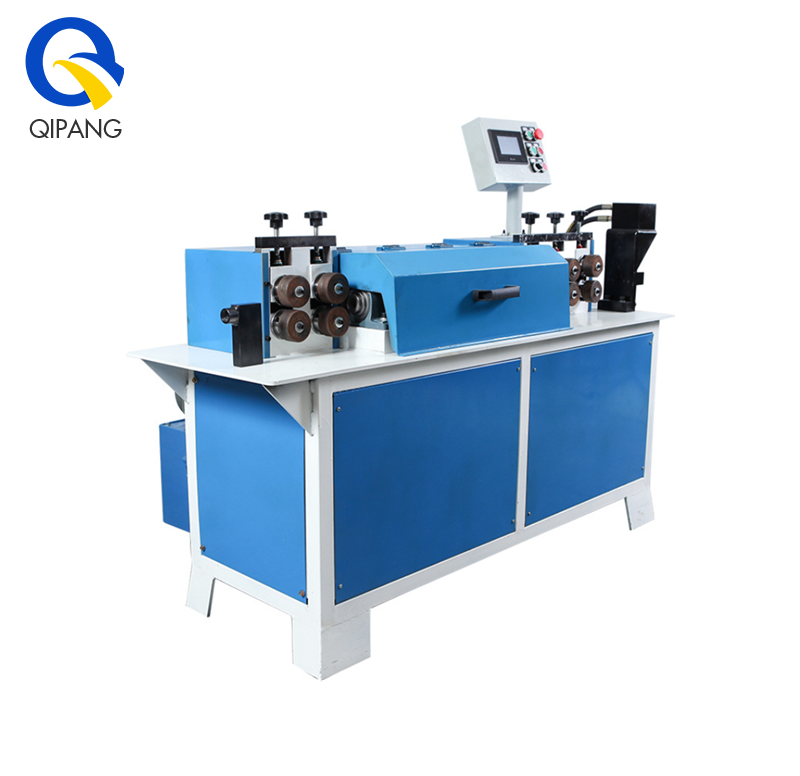

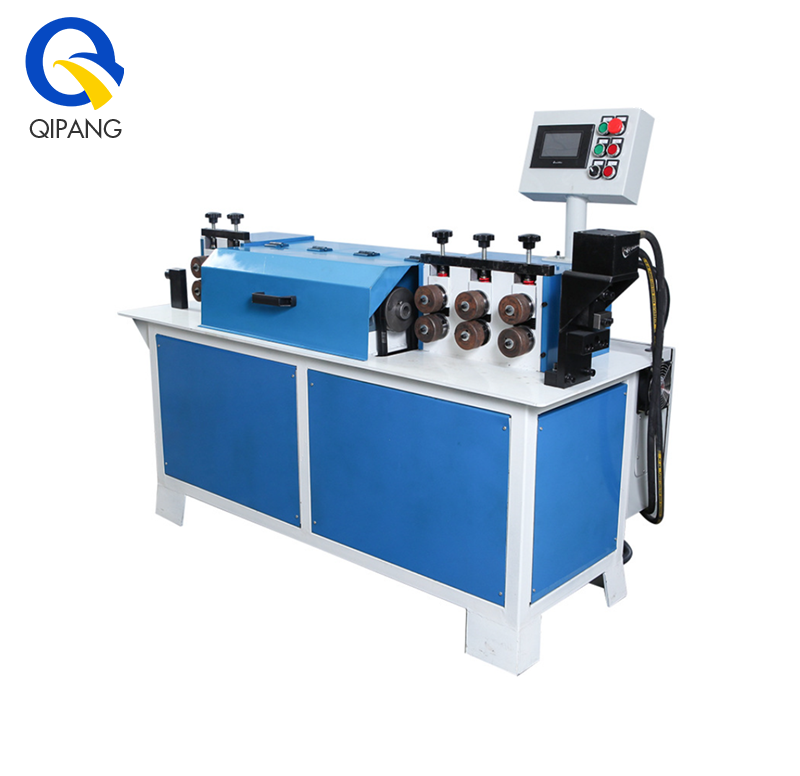

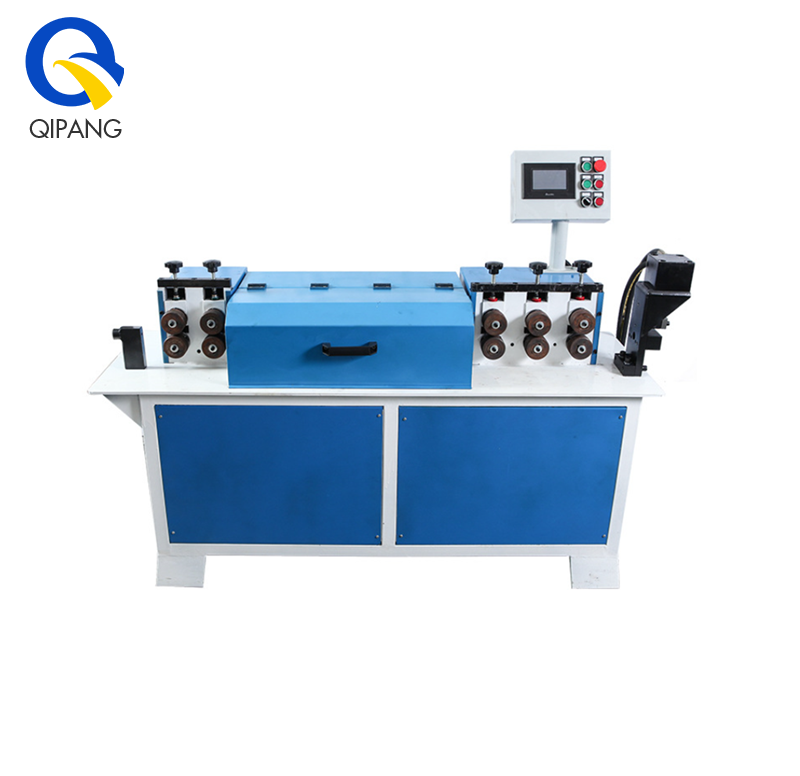

Picture display:
QIPANG PLC control high-speed straightening and cutting machine with servo motor
About us:
Shanghai Qipang Industrial Co., Ltd. is a manufacturer from R & D to manufacturing. Standard equipment is mature and can be customized according to customer needs. Special machines can achieve ideal results. The equipment can be used for straightening and cutting of various metal wires without scratches on the surface. The cutting length error is 0.005, the length is infinitely adjustable, and the man-machine integrated touch screen control system can save customers' manpower. The company's main wire range is 0.08 to 15 mm. It can be customized, and the fastest can reach 150 meters per minute. Copper / iron / aluminum / gold / Silver / Stainless Steel / High Carbon Steel / Covered Wire / ...
After-sales service:
After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.
FAQ:
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.
Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
Q:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
