wire machine for cutting and straightening welding steel straightening and cutter machine straighten precision iron wire wire straightening and cutter machine wire straightener cutting machine
Product Description

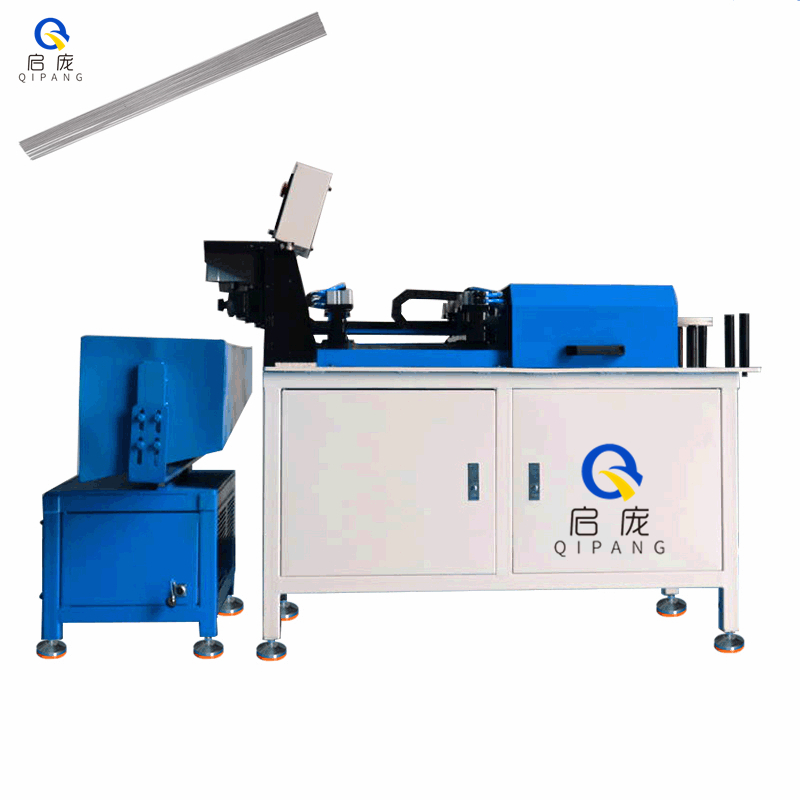

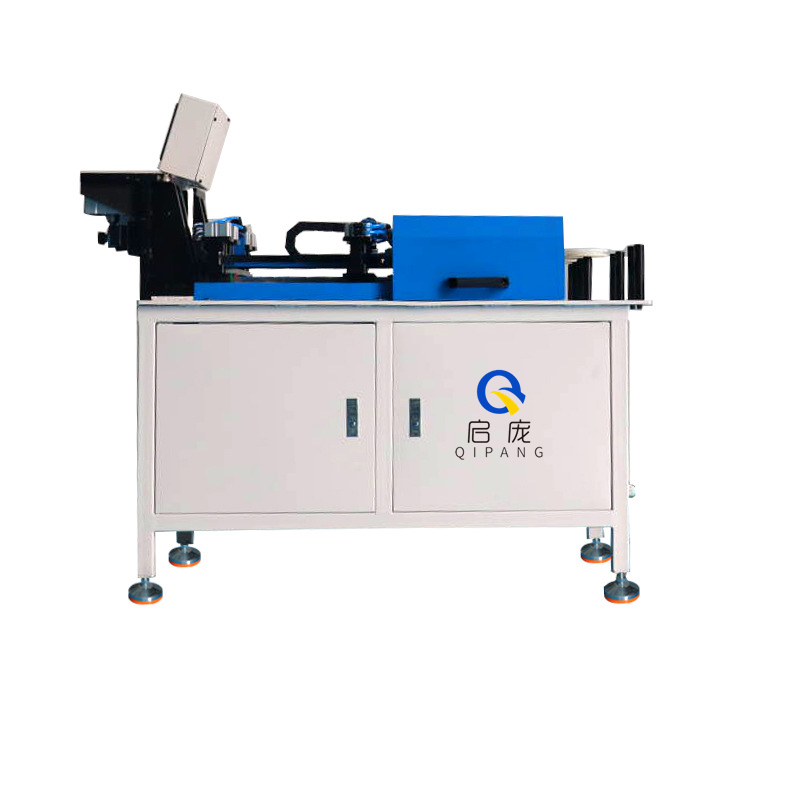

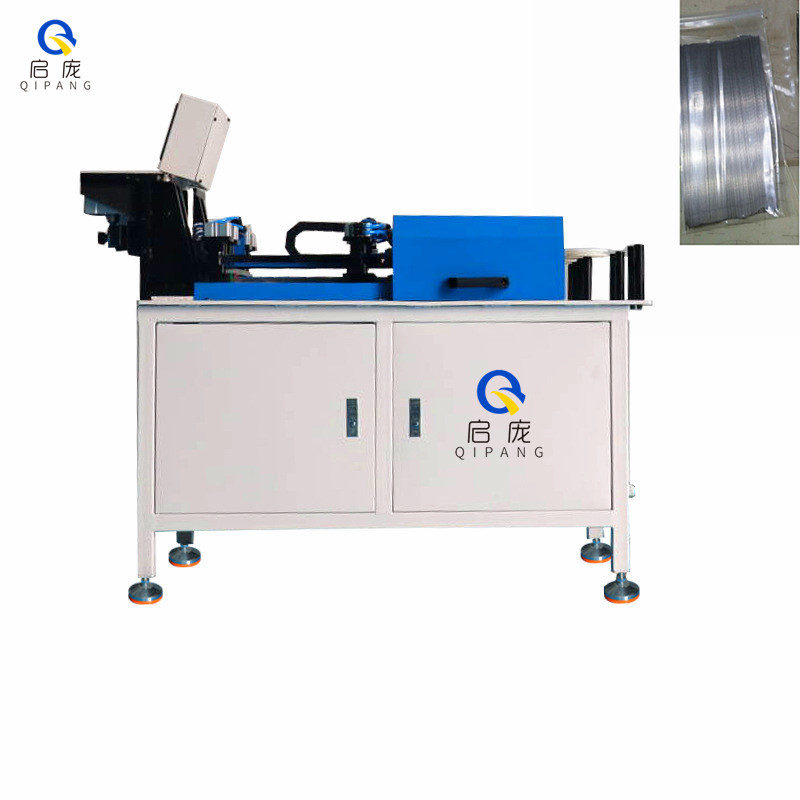

Rod straightening machine is suitable for φ0.2-φ1.2.
Suitable amterial: stainless steel wire, spring wire, iron wire and other non-ferrous metal wires. suitable for coil materials, and can straighten two wires of different wire diameters and the same length at the same time. The cutting length needs to be provided by the customer.
1. First pass the metal wire into the straightener, bring it to the blade through the straightener, and then drag a certain distance away from the blade.
2. Adjust the straightening block in the straightener. After adjusting the straightening block to the proper position, press the straightening block tightly.
3. Press the start button and input the required product cutting length on the display screen. After inputting, click the reset button on the display screen, wait for the reset light on the display screen to turn green, and the reset is now complete. After the reset is complete, click the start button, and the machine starts to work.
Specefication | |
Wire diameter(mm) | 0.2-1.2 |
Raw material | Coiled metal wire(stainless steel/spring wire) |
Cutting length(mm) | 5-500 |
Cutting error(mm) | ±5mm |
Voltage(KW) | 2 |
Mains | three-phase four-wire power cable |
Servo-actuator(KW) | 0.75 |
Straightening motor(KW) | 0.75 |
Control method | PLC |
Pls tell me the following questions, so we can send you accurate quotation with additional discount:
1. What's the diameter of your wire? Minimum and maximum range.
2. Does the raw material come in rolls?
3. Have you used it before? Now do you have any pictures you want to send to us?
4. Do you mind the scratches of wire surface? 5. If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely.
Shanghai QiPang Industrial Co., Ltd. Founded in 2008, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises. We believe that quality is survival, so we only provide you the best products. High quality products, in line with international standards, well received by domestic and foreign customers. All staff in our company are professionally trained, so we can recommend the most suitable equipment for you. Every machine has to pass strict inspection before it goes out. Any questions about the machine will be answered within 24 hours. Welcome to be our new customer! Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.
Package and transport
Other products
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the
machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems
