Qipang is proud to introduce its Industrial Wire Straightener, a cutting-edge solution for wire straightening in industrial applications. This advanced machine is designed to accurately straighten wires of various materials, sizes, and shapes, providing superior performance and efficiency for wire processing tasks. With its robust construction, advanced features, and user-friendly design, the Industrial Wire Straightener by Qipang is the ultimate choice for businesses looking to optimize their wire processing operations.

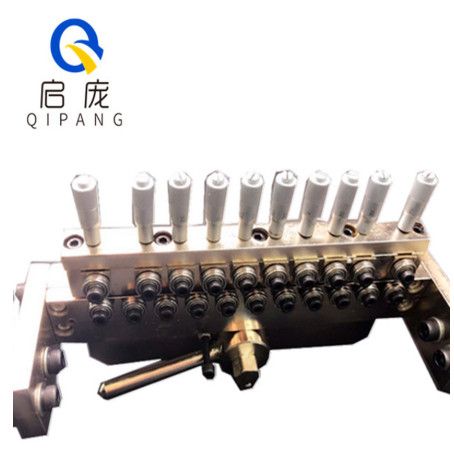

Industrial Wire Straightener
QIPANG 0.8mm-1.5mm wire straightener tool with graduated scale for straightening copper wires,steel wired 608z 608zz
Mainly used on drawing machines
1， Single and dual plane straightener models JZQ 0.8-1.5/18 AV
2， Eccentric roller open/closing device (lever)
3，From 5 ~ 9rollers per group (9) or (9+9)，From 5 ~ 19 rollers per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)
4，Roller diameters 23mm /22 (0.906")，Customizable 7-120mm (0.27559"-4.724409")
5，Adjustable rollers on the upper row
6, Rollers available for light or heavy duty applications
7，Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
8，Rollers are standard "V" groove profiles but can be provided with "U" grooves 9，according to customer requirements
*Wire Guide included
Industrial Wire Straightener Parameter :

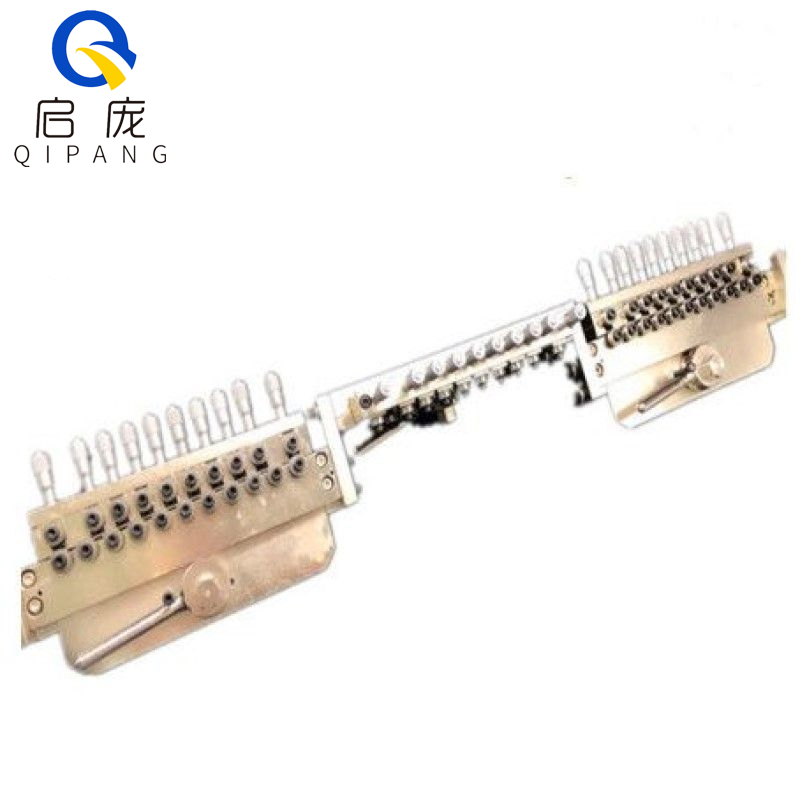

JZQ0.8mm-1.5mm 18 AV:wire straightener with double unit, roller diameter is 23mm.
Calibration straight bar specifications: Φ0.8mm-Φ1.5mm
Straightening wheel diameter : Φ23mm
Weight of the straightener : bare metal 8 kg, even packing about 10 kg
Straightener size: length 290mm * width 135mm * height 135mm
AB: A means with handle; B means with bottom plate; AB means both with handle and bottom plate.
Straightening bar material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, iron wire, etc.
Straightening wheel grooves are:V-groove,(customizable R-groove, H-groove)
Form of straightener: single group: horizontal straightener; combination: vertical + horizontal straightening form
Straightening roller adjustment: overall opening and closing + 13straightening wheels for independent movement adjustment
Key Features of Industrial Wire Straightener
◆Precision Straightening: The Industrial Wire Straightener by Qipang is equipped with high-precision straightening rollers that can effectively straighten wires with accuracy up to 0.1mm. This ensures consistent results and eliminates the need for manual straightening, saving time and effort.
◆Versatility: The machine is capable of straightening wires of various materials, including steel, stainless steel, aluminum, and copper, with diameters ranging from 0.5mm to 12mm. It can handle wires with different shapes, such as round, square, and hexagonal, making it suitable for a wide range of industrial applications.
◆High Efficiency: The Industrial Wire Straightener is designed for high-speed wire processing, with a maximum straightening speed of up to 60m/min. This allows for efficient production and increased throughput, reducing downtime and maximizing productivity.
◆Easy Operation: The machine features a user-friendly control panel that allows operators to easily set and adjust the straightening parameters, such as straightening angle, feeding speed, and roller pressure, to meet the specific requirements of their wire processing tasks. The machine also has built-in safety features, such as emergency stop buttons and overload protection, ensuring safe and reliable operation.
◆Durability and Reliability: Qipang is known for its high-quality engineering, and the Industrial Wire Straightener is no exception. It is built to withstand heavy-duty use in industrial environments and is made from durable materials that are resistant to wear and corrosion, ensuring long-term reliability and minimal maintenance requirements.
◆Customizable Options: Qipang understands that different industries have unique wire processing needs, and offers customizable options for the Industrial Wire Straightener, such as additional rollers, automatic wire feeding systems, and integrated cutting units, to tailor the machine to specific requirements.
Industrial Wire Straightener Applications
●Wire manufacturing: Straightening wires before further processing, such as cutting, bending, or welding, to ensure precise and consistent results.
●Construction: Straightening wires used in reinforcement bars for concrete structures, such as bridges, highways, and buildings, to meet strict quality standards.
●Automotive: Straightening wires used in automotive components, such as springs, clips, and fasteners, to ensure optimal performance and safety.
●Electronics: Straightening wires used in electronic components, such as connectors, coils, and sensors, to ensure precise alignment and functionality.
●Aerospace: Straightening wires used in aerospace components, such as aircraft cables, harnesses, and actuators, to meet stringent quality requirements.

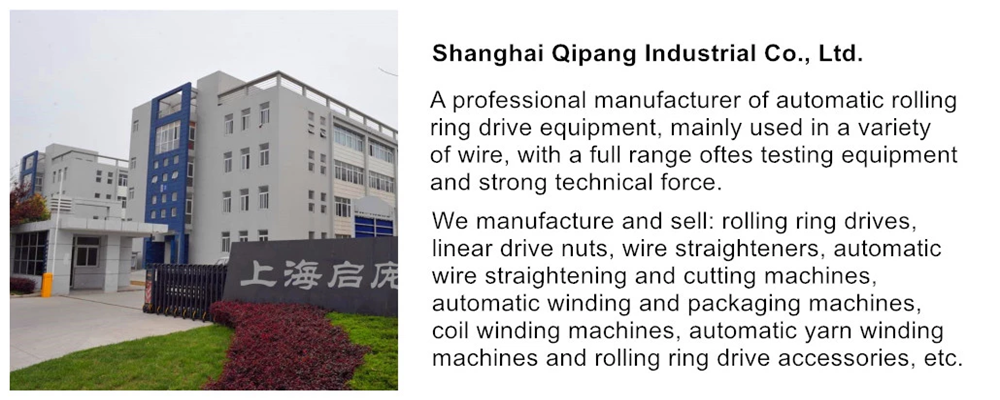

Our company:
Shanghai Qipang Industrial Co.,LTD.are specialized in producing wire straighteners. We are two companies in qipang group, one is Shanghai Qipang Industrial Co.,LTD. which has a superior geographical location. Its head office is located in Shanghai, which is connected with Shanghai port.The factory is located in kunshan city, Kunshan Qipang Mechanical and Electrical Equipment Co.,LTD.which is the junction of jiangsu province and Shanghai city, with convenient transportation and advanced technology.The company has a wealth of enterprise resources, excellent corporate culture, strong corporate philosophy, to serve customers for the
purpose, committed to creating a leading brand in the industry, and the domestic brand to the world, is one of the outstanding representatives of the rapid economic development of the 21st century.
We have been producing straighteners for ten years.We are the best in our field.We mainly have wire straightener roller,feeding straightener, PLC control,straightener and cutting machine ，pipe bender , necking machine and so on. Straightener suitable for wire and pipe with diameters ranging from 0.05mm to 30MM.
The straightener can also be customized according to the buyer's requirements. Our products are of high quality and low price, and have good after-sale service.We will provide video teaching installation and adjustment, so you don't have to worry about buying it and not using it. Our partners include the United States, Canada, Russia, Vietnam, Thailand, Poland, and many other countries.Choose us you won't .
Payment
We accept the Escrow.
Please contact us for additional information on how to pay or any inquiries regarding payment.
Shipment
We are not responsible for undeliverable address. We reserve the right to charge the shipping fee again for returned items due to wrong address.Item will be sent out by within 24-48 hours after clear payment (excluding weekend & holiday).
Arrival time
Air Mail: 15-30 days
EMS: 5-10 days
Occasionally, it may delay due to your local Customer clearance. If not get item after 30 days, please contact us to solve it.
We don't offer combine shipping.
We are not responsible for duty or taxes of your country.
Return
1 Year Warranty, Bid in confidence!
All items are 100% Brand New. All the items have been tested before dispatch.
We can exchange the item within 30 days after you received it if it is defective. Returned item must have all original packaging and accessories with Approval Return Code.
Buyer are responsible for the returning shipping costs. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item.
It may take up to 3 business days to process your return after we receive your product.
Others
ALL ITEMS will be packed Without retail box.
We strive to earn 100% perfect "Five-Star" scores from you. The star-scores are very important to us. If anything about your transaction did not meet your expectations. PLEASE LET US KNOW AND GIVE US THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave feedback.
Qipang's Industrial Wire Straightener is a cutting-edge solution that offers precision, versatility, efficiency, and durability for wire processing in industrial applications. With its advanced features, user-friendly design, and customizable options, it is the ultimate choice for businesses looking to optimize their wire straightening operations. Whether it's for wire manufacturing, construction, automotive, electronics, aerospace, or other industries, the Industrial Wire Straightener by Qipang is the reliable and efficient solution to achieve high-quality and consistent wire straightening results.
