Home > Qipang Product > Wire Straighteners

QIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire StraightenerQIPANG wire straightener techniques product 5 wheels Welding Wire Straightener

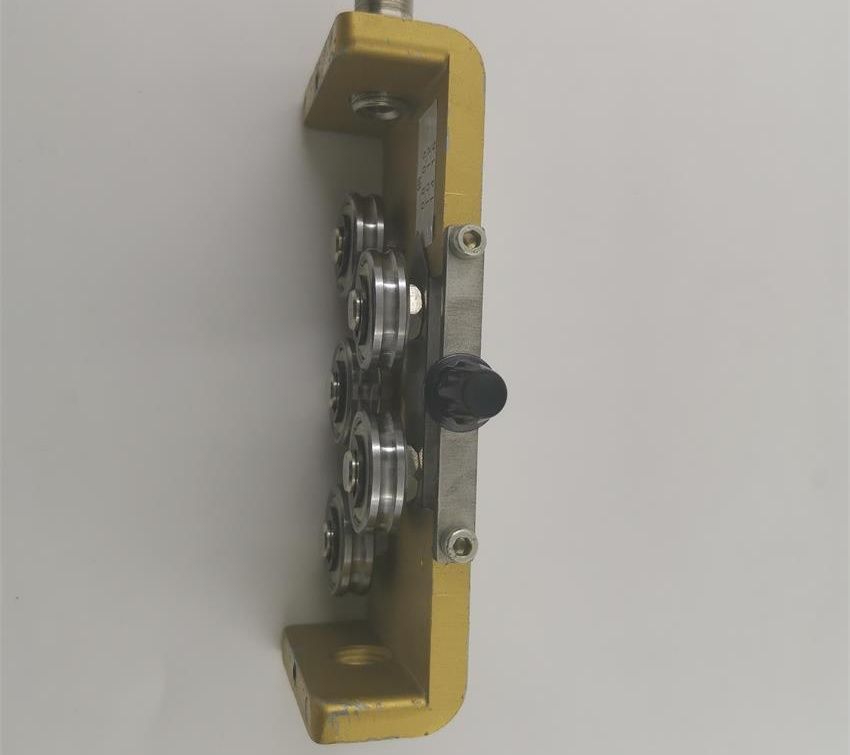

QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener

5 wheels metal straightening machinery

The parameter is following:

1.Straightens cored wire up to 1/8 in (3.2mm) and solid wire up to 3/32 in (2.4mm).

2.5 rollers per group

3.5 wheels Welding Wire Straightener Roller diameters 29 mm (1.142")

4.5 wheels Welding Wire Straightener Adjustable rollers on the upper row

5.5 wheels Welding Wire Straightener Rollers are standard "U" groove profiles

6.5 wheels Welding Wire Straightener Incoming and outgoing bushings are compatible with existing incoming and gun receiver bushings.

7.5 wheels Welding Wire Straightener weight 0.45kg



Share:
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener
  • Description

QIPANG wire straightener techniques product 5 wheels Welding Wire Straightener


Our company specializes in R&D and production of a straightener suitable for various welding wires (secondary protection welding wire, aluminum welding wire, flux-cored welding wire). The diameter of the welding wire can be adjusted to 0.8-2.8mm, using professional V-shaped straightening wheels and imported bearings. It can be adjusted manually according to the different bending and straightening of the welding wire. It has the function of repairing and correcting the bending of the welding bead caused by the unsmooth wire feeding.



5 wheels metal straightening machinery

1.Straightens cored wire up to 1/8 in (3.2mm) and solid wire up to 3/32 in (2.4mm).

2.5 rollers per group

3.5 wheels metal straightening machinery Roller diameters 29 mm (1.142")

4.5 wheels metal straightening machinery Adjustable rollers on the upper row

5.5 wheels metal straightening machinery Rollers are standard "U" groove profiles

6.Incoming and outgoing bushings are compatible with existing incoming and gun receiver bushings.

7.5 wheels metal straightening machinery weight 0.45kg


Straightener Type


ModelTypeWire Diameter (Solid)Roller Diameter (mm/inch)Roller Qty  (pcs)structuregroove
JZQ 0.05-0.2/38AVV-7φ0.05-0.2mm7(0.276)38quick clamping V
JZQ 0.2-0.5/34AVV-12φ0.2-0.5mm12(0.472)34V
JZQ 0.5-0.8/26AVV-16φ0.5-0.8mm16(0.630)26V
JZQ 0.8-1.5/5/18AVV-23φ0.8-1.5mm23(0.906)5/18V
JZQ 1.5-3/5/18AVV-30φ1.5-3mm30(1.181)5/18V
JZQ 3-4/18AVV-32φ3-4mm32(1.260)18V
JZQ 4-7/14/18/22AVV-42φ4-7mm42(1.654)14/18/22unclampingV
JZQ 5-8/14/18/22AVV-54φ5-8mm54(2.126)14/18/22V
ModelTypeTube/Pipe Diameter (Hollow)Roller Diameter (mm)Roller Qty                  (pcs)structuregroove
JZQ 1-3/14/18 BU/RU-301-3mm3018/14quick clamping U/R
JZQ 4-10/14/18/22 BU/RU-424-10mm4214/18/22unclampingU/R
JZQ 10-20/14/18/22 BU/RU-5410-20mm5414/18/22unclampingU/R
I.  Different groove types can be customized.
II.  Quick clamping is straightener with a handle for easy opening and closing the rollers

QIPANG wire straightener techniques product 5 wheels metal straightening machinery

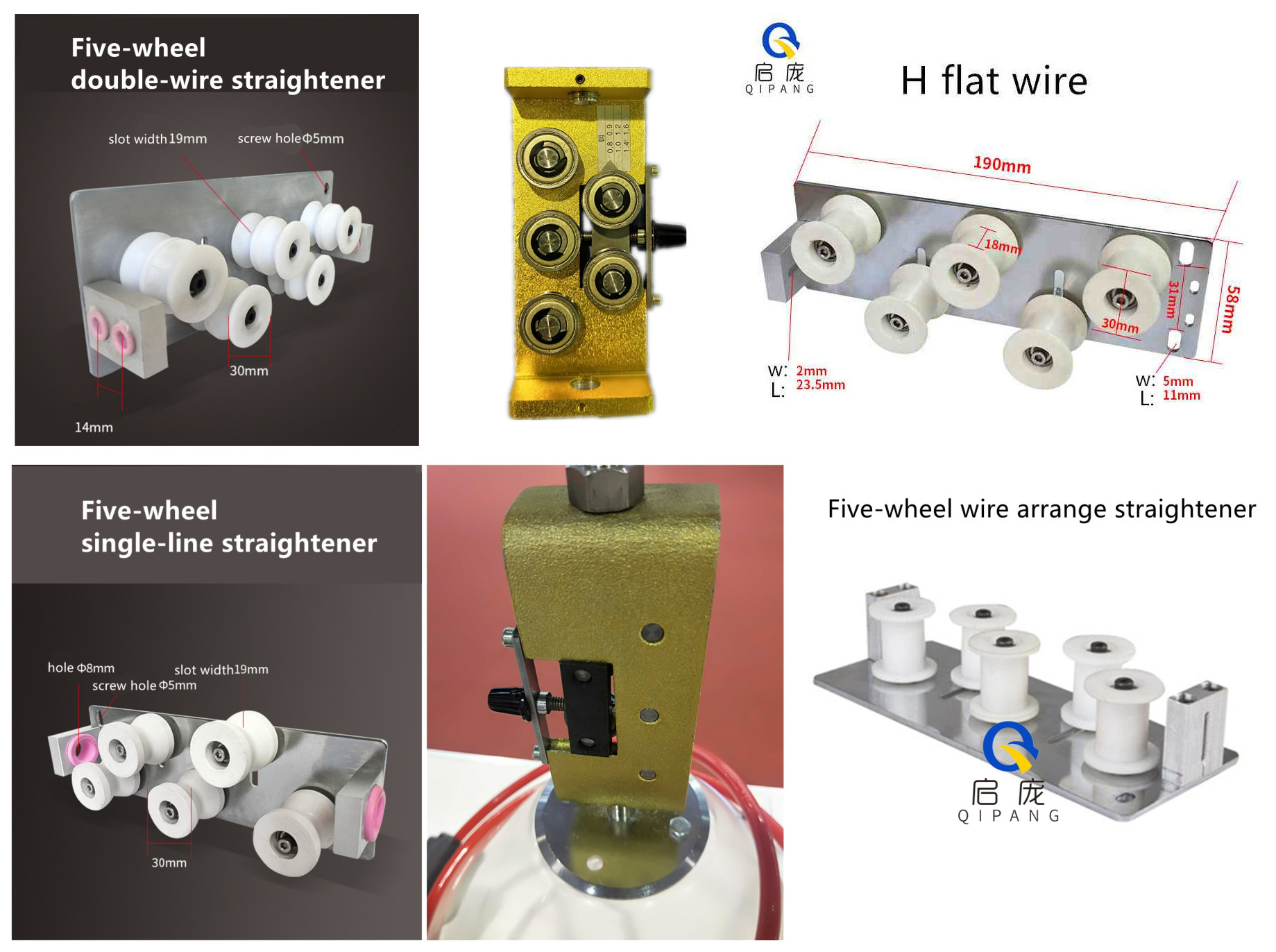

Straightener series

H flat Straightener for Wire Cable Stripping Machine Accessories Straightening Machine Tool


Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


1,What's the diameter of your steel wire ? Minimum and maximum range,How to choose the right straightener according to their own material?

2,Does the raw material come in rolls, in bundles, Hollow roll or solid material?

3,Have you used it before? Now do you have any pictures you want to send to us?

4,If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely :Whatsapp:+8613672630866/Wechat:+8618916332415


About us

With more than 10 years of experience:

QIPANG has established an excellent reputation in the industry through the highest quality products designed and manufactured by outstanding engineering teams and providing our customers. After more than 10 years of continuous supply and maintenance of the highest quality machinery, tools, and accessories to the wire straightening industry, this excellent word of mouth continues today.QIPANG PR70-V middle

Committed to customer satisfaction:

QIPANG is known worldwide for developing and selling a wide range of straightening tools and accessories. We consistently use the highest quality materials and equipment to build our products, which has always been our corporate philosophy.

Here, we are committed to making quality and service satisfaction to our customers around the world. Whether our customers need standard products or custom-made products, QIPANG has the following qualities:

1. 10 years of development,manufacturing, market experience

2. A wide range of tool components

3. highest quality requirements and guarantees

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory

7. Guaranteed risk-free warranty management

8. Solutions, from the very beginning.



In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.

Since 2009, the metal products series machine has been provided.



After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.



FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.


Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.



Q:What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
