Product name: American imported artistic wire tool-wire straightener 228S-420
Product size: about 4.5㎝ long
Price Quantity: 1
Straightening range: 0.5-2MM
Weight: 50g
Product description:
This is used to straighten metal wires, copper wires, silver wires, gold-coated wires and so on.
The metal wire is coiled for storage and delivery. It is inevitable that there will be a certain arc when receiving the goods, so be sure to use a straightener to straighten the metal before use, so that the things that come out will look good. This tool is something that must be prepared for metal winding.

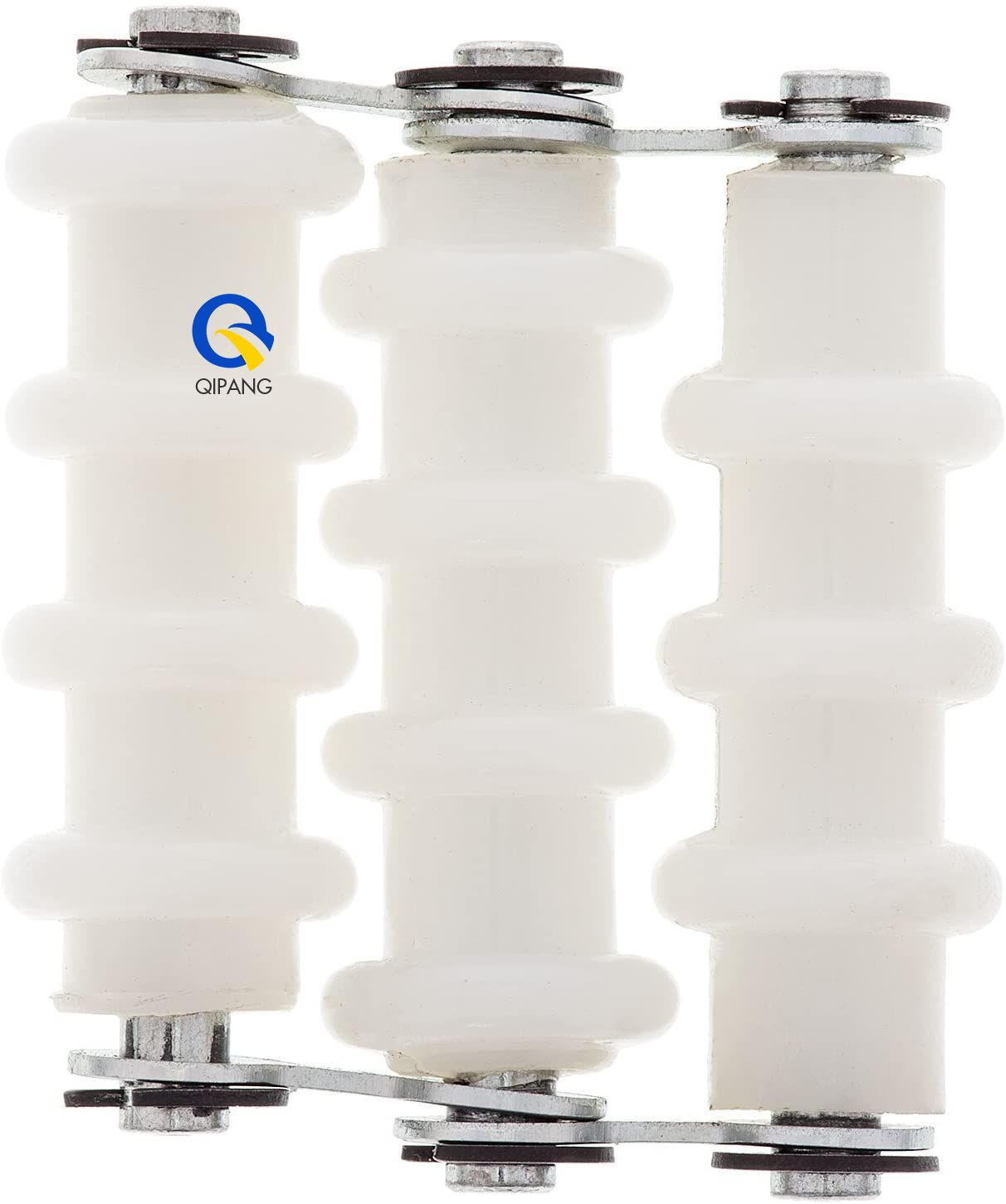

The metal wire straightener is composed of three movable rollers, which can form a triangle. When using, wrap the metal wire in it, clamp the wire end with pliers in the left hand, and hold the straightener with the right hand and pull it upwards.
Repeat a few times to straighten the line (there is a product instruction video above)
Use a straightener to straighten the wire, I personally find it easier to use than nylon flat pliers, save effort and work better.

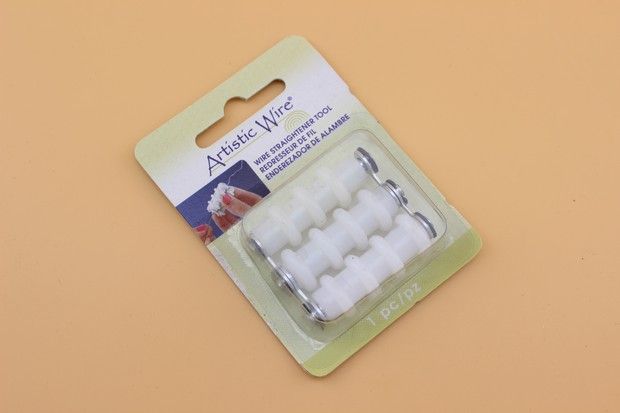

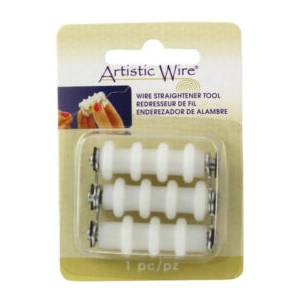

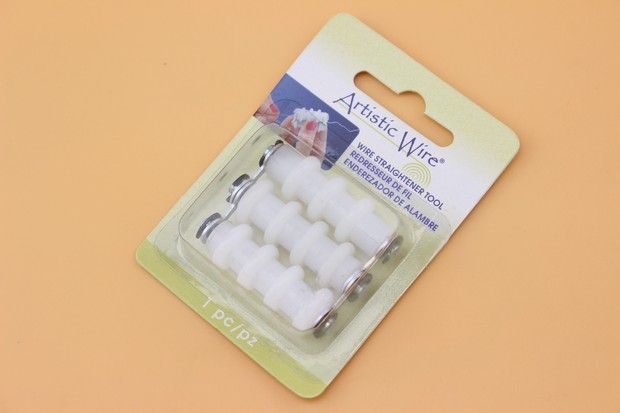

Artistic Wire Tool, Nylon Wire Straightener, 3 Rollers
1, Wire Gauge range 0.5 mm-2mm

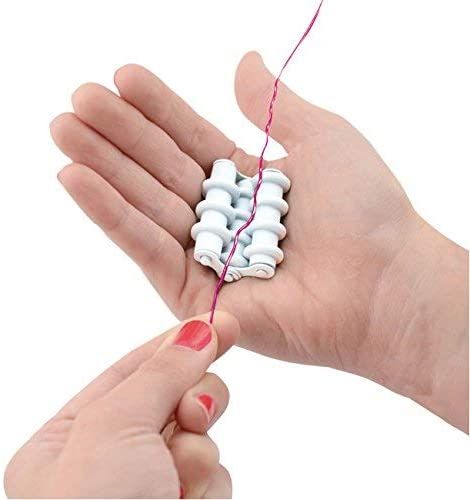

2,The Artistic Wire Straightener tool makes it easy to straighten wire that has been worked. Put the rollers in your hand in the open position with each of the rollers side by side. Lay the end of a piece of wire that requires straightening on the three rollers, then move the rollers until they form a triangle with the wire in the center. Grasp the rollers in one hand holding tightly, then pull the wire through the rollers to straighten. May need to pull through a second time for highly bent wires. Nylon rollers help keep Artistic Wire coating intact.
when the goods are received. Therefore, you must use a straightener to straighten the metal before using it. This tool is something that must be prepared for metal winding.The wire straightener is composed of three movable rollers. The three movable rollers can form a triangle. When using, wrap the metal wire in it. Use the pliers to clamp the thread with your left hand. Hold the straightener with your right hand and pull it upward. Repeat several times to straighten the line
Mainly used on drawing machines
1，Single and dual plane straightener models
2，Eccentric roller open/closing device (lever)
3，From 5 ~ 13 rollers per group (5, 7, 9, 11, 13) or (5+5, 7+7, 9+9, 11+11,13+13)
4，Roller diameters 13 ~ 80 mm (0.5" ~ 3.15")
5. Adjustable rollers on the upper row
6, Rollers available for light or heavy duty applications
7. Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
8，Rollers are standard "V/T" groove profiles but can be provided with "U" grooves 9，according to customer requirements
*Wire Guide included
Straightener Type
| Model | Type | Wire Diameter (Solid) | Roller Diameter (mm/inch) | Roller Qty (pcs) | structure | groove |
| JZQ 0.05-0.2/38AV | V-7 | φ0.05-0.2mm | 7（0.276） | 38 | quick clamping | V |
| JZQ 0.2-0.5/34AV | V-12 | φ0.2-0.5mm | 12（0.472） | 34 | V | |
| JZQ 0.5-0.8/26AV | V-16 | φ0.5-0.8mm | 16（0.630） | 26 | V | |
| JZQ 0.8-1.5/5/18AV | V-23 | φ0.8-1.5mm | 23（0.906） | 5/18 | V | |
| JZQ 1.5-3/5/18AV | V-30 | φ1.5-3mm | 30（1.181） | 5/18 | V | |
| JZQ 3-4/18AV | V-32 | φ3-4mm | 32（1.260） | 18 | V | |
| JZQ 4-7/14/18/22AV | V-42 | φ4-7mm | 42（1.654） | 14/18/22 | unclamping | V |
| JZQ 5-8/14/18/22AV | V-54 | φ5-8mm | 54（2.126） | 14/18/22 | V | |
| Model | Type | Tube/Pipe Diameter (Hollow) | Roller Diameter (mm) | Roller Qty (pcs) | structure | groove |
| JZQ 1-3/14/18 BU/R | U-30 | 1-3mm | 30 | 18/14 | quick clamping | U/R |
| JZQ 4-10/14/18/22 BU/R | U-42 | 4-10mm | 42 | 14/18/22 | unclamping | U/R |
| JZQ 10-20/14/18/22 BU/R | U-54 | 10-20mm | 54 | 14/18/22 | unclamping | U/R |
| I. Different groove types can be customized. II. Quick clamping is straightener with a handle for easy opening and closing the rollers | ||||||
Straightener adjustment diagram
Straightener series
Customer Make QIPANG Wire Straightener
We can design and produce the wire straightener according to customer requirements.
1. Material ( steel,copper )
2. Diameter of steel wire or steel tube or copper tube
3. Operating speed ( m / min )
4. Single plane or double plane
5. If need qucik lever, if need guide roller, if need solid base
Equipment Reconstruction and Update
Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.
1，What's the diameter of your steel wire ? Minimum and maximum range，How to choose the right straightener according to their own material?
2，Does the raw material come in rolls, in bundles, Hollow roll or solid material?
3，Have you used it before? Now do you have any pictures you want to send to us?
4，If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely ：Whatsapp：+8613672630866/Wechat：+8618916332415
About us
With more than 10 years of experience:
QIPANG has established an excellent reputation in the industry through the highest quality products designed and manufactured by outstanding engineering teams and providing our customers. After more than 10 years of continuous supply and maintenance of the highest quality machinery, tools, and accessories to the wire straightening industry, this excellent word of mouth continues today.
In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.
Since 2009, the metal products series machine has been provided.
Committed to customer satisfaction:
QIPANG is known worldwide for developing and selling a wide range of straightening tools and accessories. We consistently use the highest quality materials and equipment to build our products, which has always been our corporate philosophy.
Here, we are committed to making quality and service satisfaction to our customers around the world. Whether our customers need standard products or custom-made products, QIPANG has the following qualities:
1. 10 years of development,manufacturing, market experience
2. A wide range of tool components
3. highest quality requirements and guarantees
4. Flexible development and customization tools
5. Excellent consulting team covering the world
6. Fast spare parts distribution and sufficient inventory
7. Guaranteed risk-free warranty management
8. Solutions, from the very beginning.
In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.
Since 2009, the metal products series machine has been provided.
After-sales service:
After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.
