carbide guide rolls straightening wire bearing Straightener Wire Guide Pulley Track guide roller bearing guide wheel pulley bearing Supplier

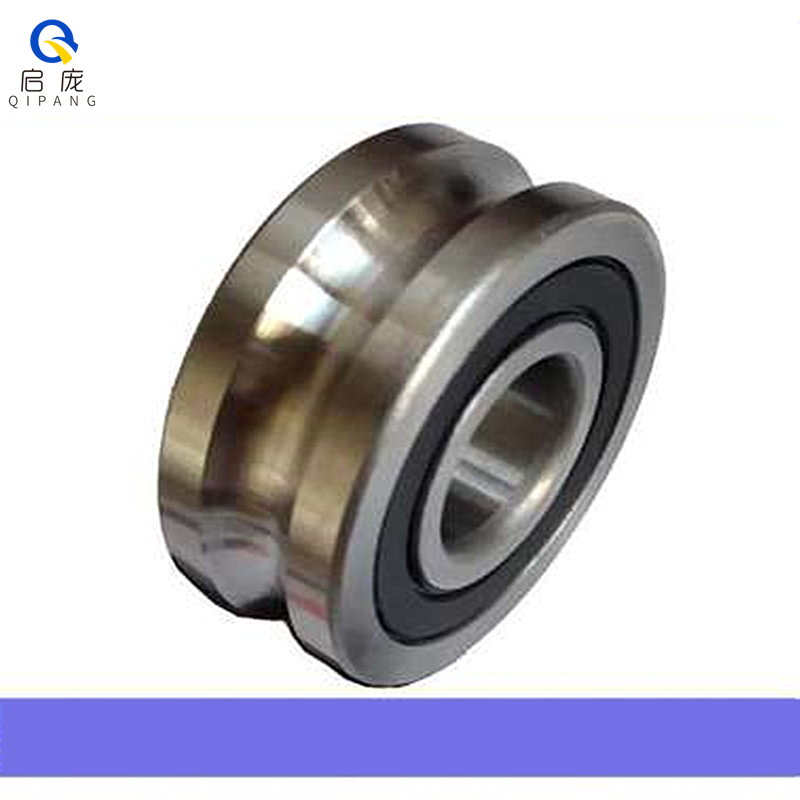

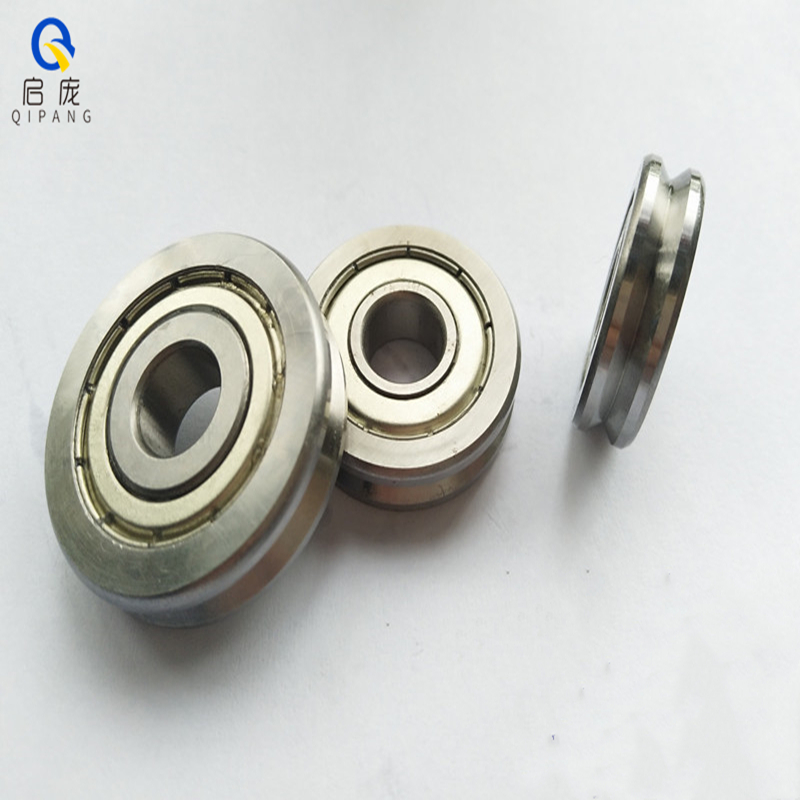

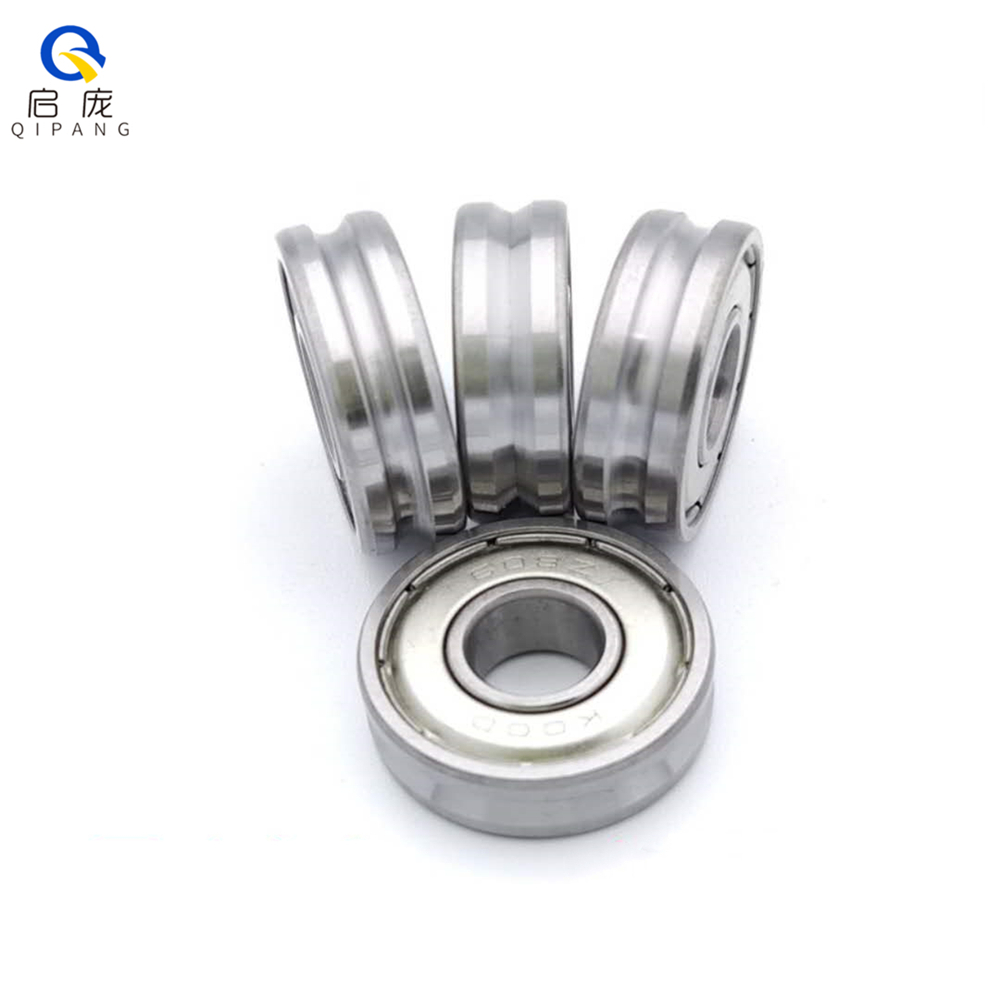

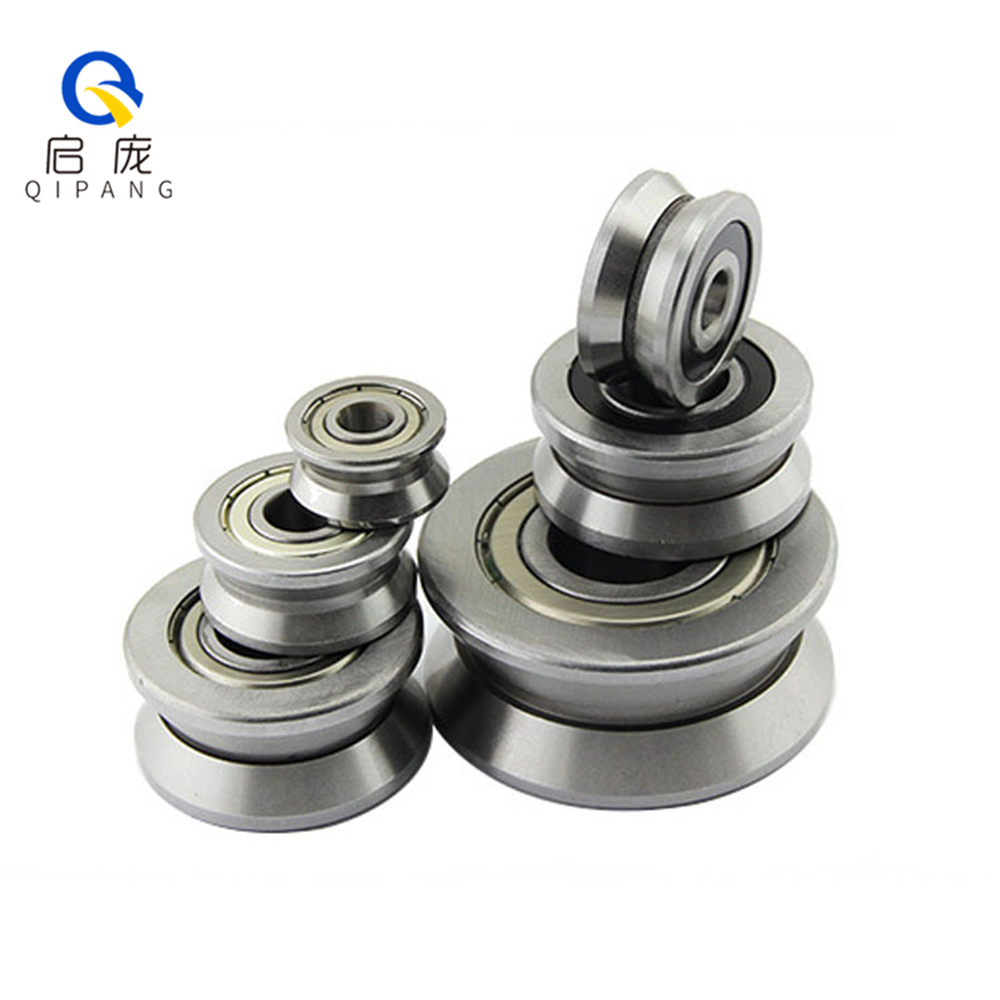

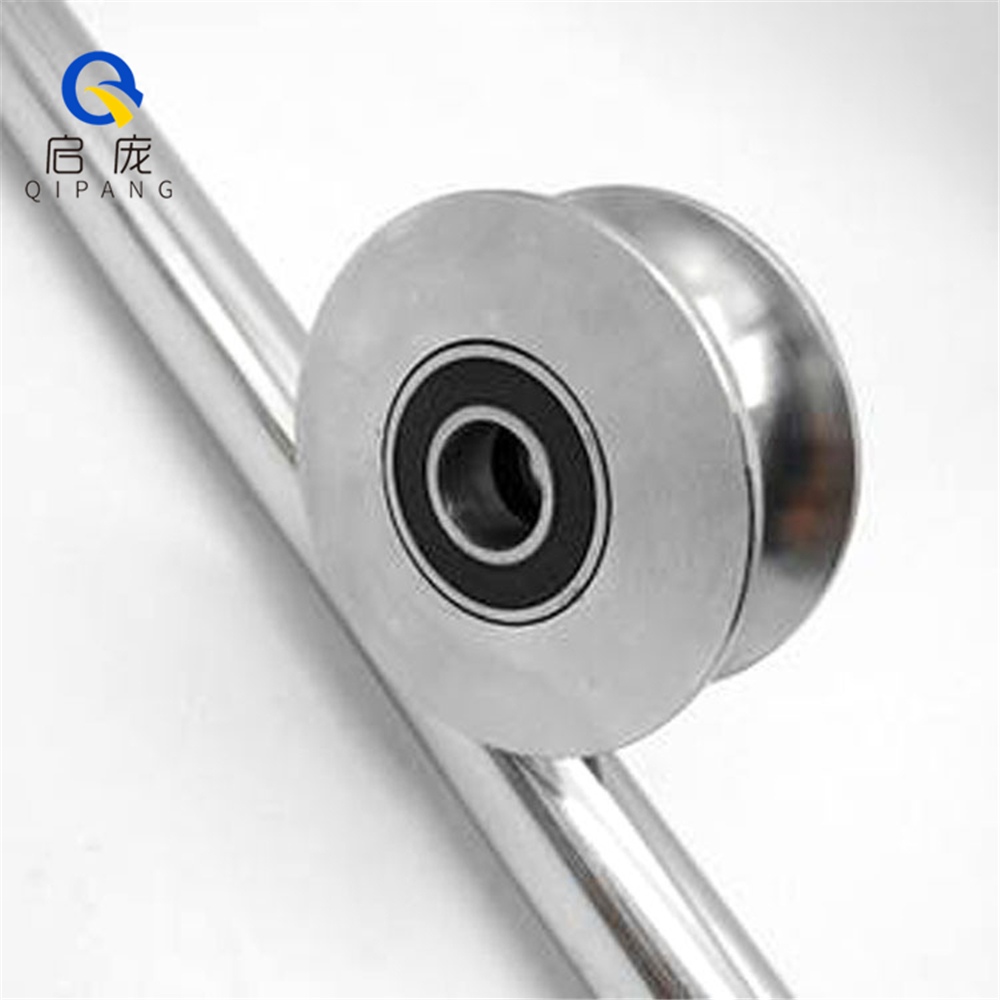

Name:Wire Straightening Rollers
Material: Bearing steel
Package: 5pcs with carton
Weight:0.3kgs
Usage:Part of wire straightener/guide roller
Different shapes of materials are suitable for the straightening wheel groove type, the linear type is suitable for V groove, the bar material is suitable for U groove, and the rectangular flat material is suitable for H groove. There are other more models, please consult Iris for details, WeChat: +8618916332415, Whatsapp: +8613472630866
Inner diameter*outer diameter*height(mm) | Groove | Material | Groove Width(mm) | Groove depth(mm) |
10x32x9 | V/U | Bearing steel | 4 | 1.5 |
10X35X9 | V | Bearing steel | 5 | 2 |
10x40x14 | U | Bearing steel | 8 | |
10x46x16 | V/U/H | Bearing steel | 8 | 3 |
10X37X12/14 | U/V | Bearing steel | 8 | 3 |
10X37X12/14 | U/V | Bearing steel | 6 | 3 |
12x47x12 | U | Bearing steel | 8/6/5/4 | 3/ /2,4/4/3 |
12x47x12 | V | Bearing steel | 8/6/5/4 | 3 |
17X47X12 | U | Bearing steel | 4/5/6/8 | 2/2/3/3 |
17X47X12 | V | Bearing steel | 4/5/6/8 | 2/2/3/3 |
17X47X12 | H | Bearing steel | 4/5/6/8 | 2/2/3/3 |
10X37X12 | U | Bearing steel | 5/4 | 2 |
10X37X12 | H | Bearing steel | 8/7/6/5/4/3 | 3 |
4X12X4 | V | Bearing steel | 1//1.5/2 | 0.4 |
4X12X4 | U | Bearing steel | 2/1.5 | 0.4 |
4X12X4 | V | Bearing steel | 3.5 | 0.6 |
3X10X4 | V | Bearing steel | 2 | 0.4 |
3X10X4 | U | Bearing steel | 2 | 0.4 |
20x62x30 | U | Bearing steel | 10 | 5 |
20x62x22 | V | Bearing steel | 18/16/12/10 | 5 |
20X62X22 | U | Bearing steel | 16/14/12/10 | 5 |
20X62X22 | U | Bearing steel | 8/6 | 4/3 |
20X62X22 | H | Bearing steel | 16/15/12/10/8 | 5 |
20X52X20 | H | Bearing steel | 15 | 3 |
20X52X20 | U | Bearing steel | 4 | 5/6 |
20X52X20 | V | Bearing steel | 10 | 3 |
8X22X7 | U/V | Bearing steel | 2 | 0.5 |
