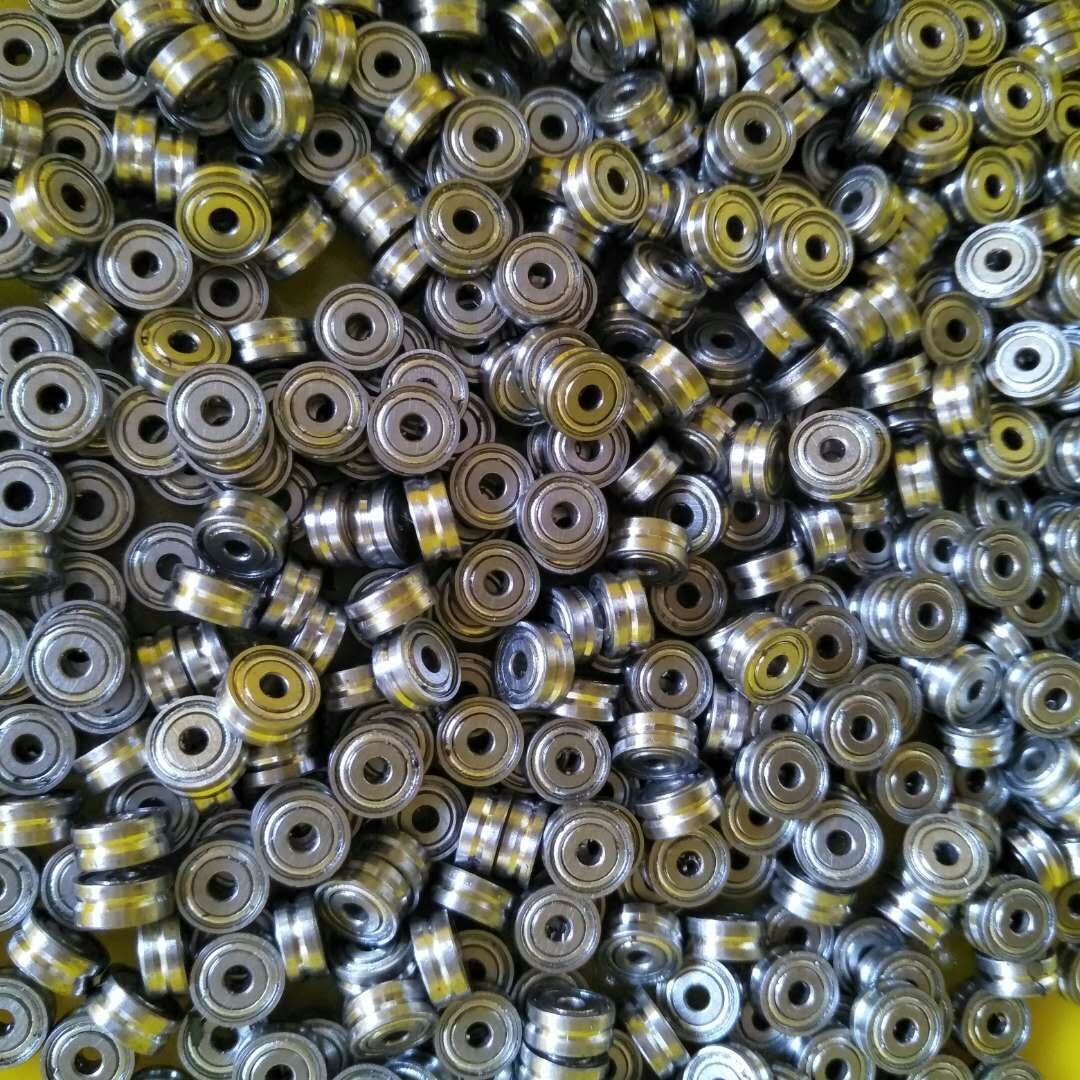

Guide Rail bearing grooved track guide wheel roller bearing for wire sliding door track roller bearing Wholesale

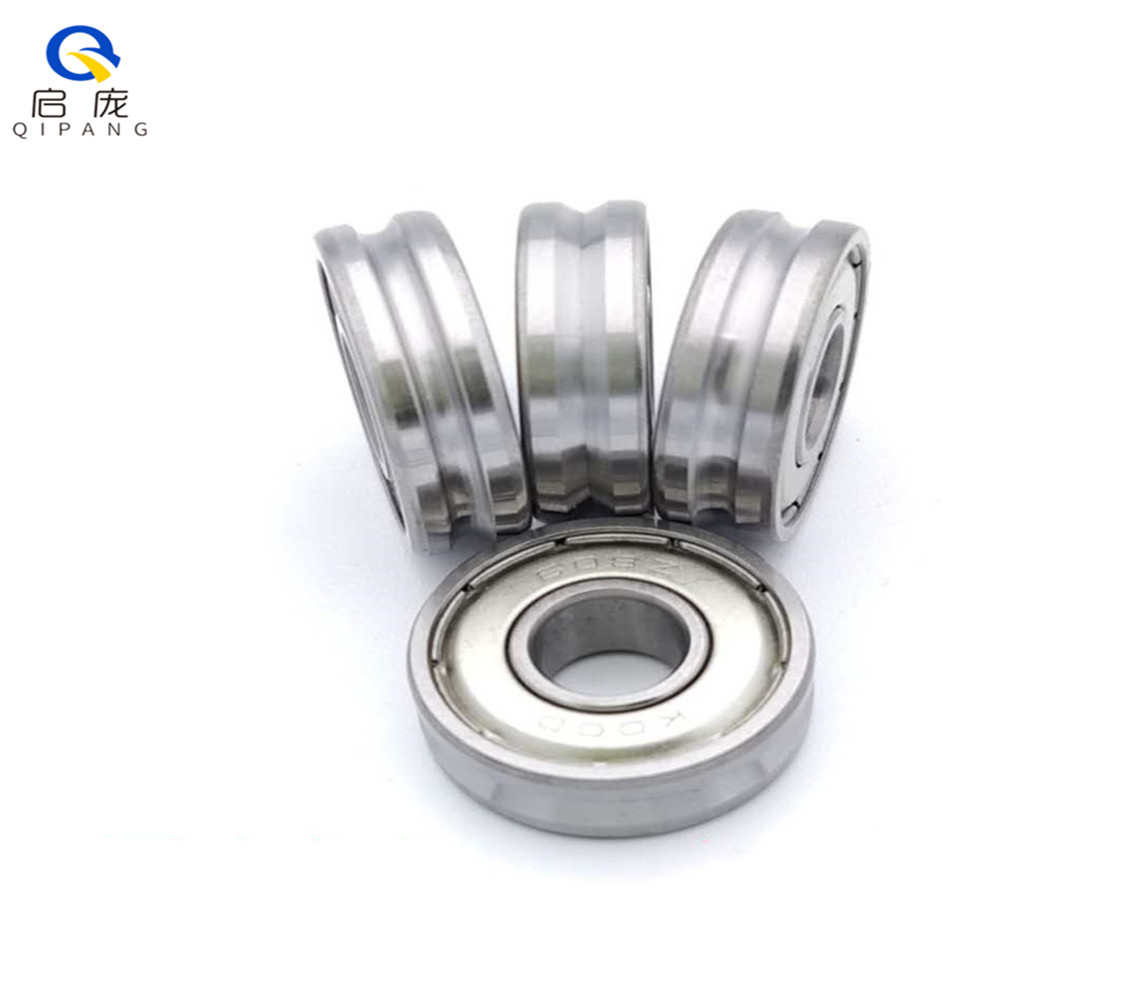

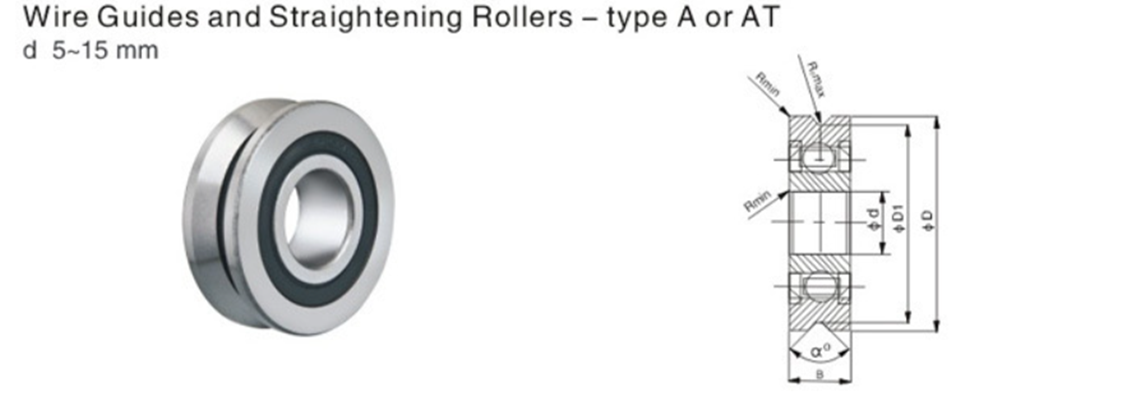

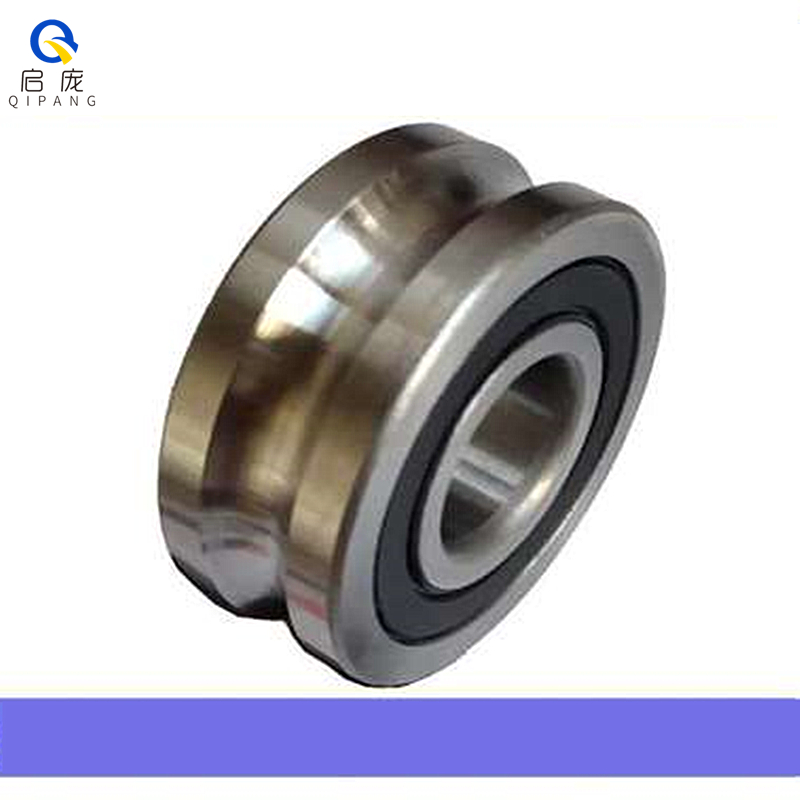

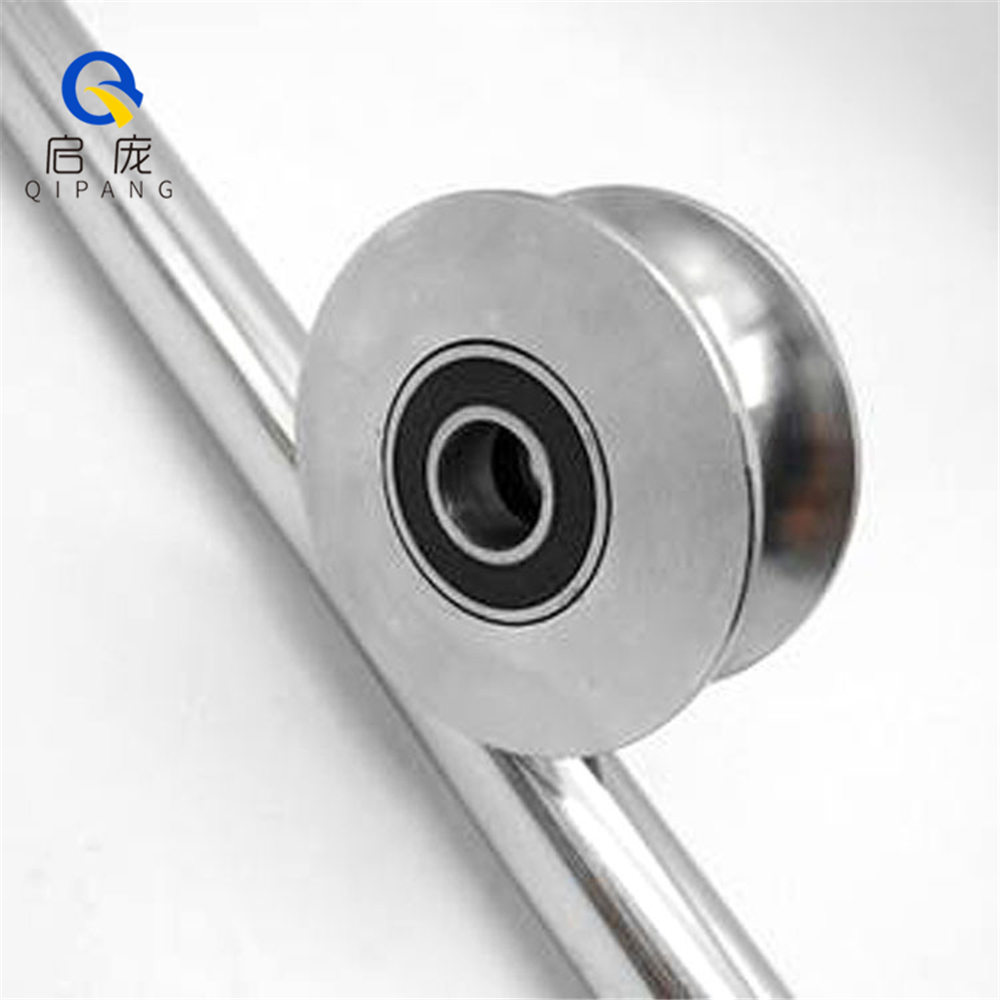

Name：Wire Straightening Rollers
Material: Bearing steel

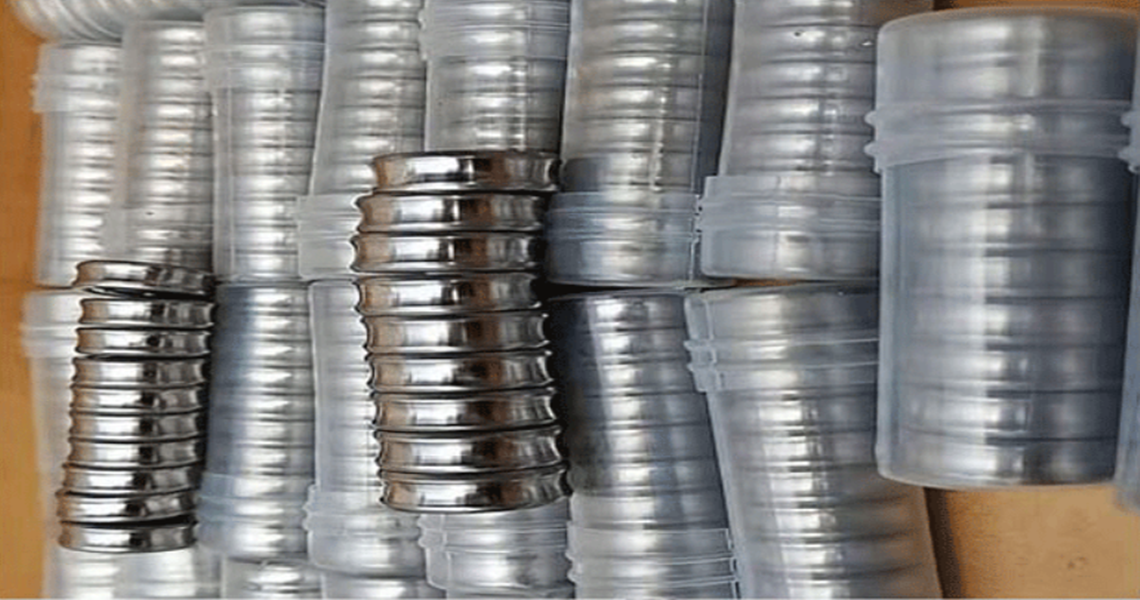

Package: 5pcs with carton
Weight：0.3kgs
Usage：Part of wire straightener/guide roller

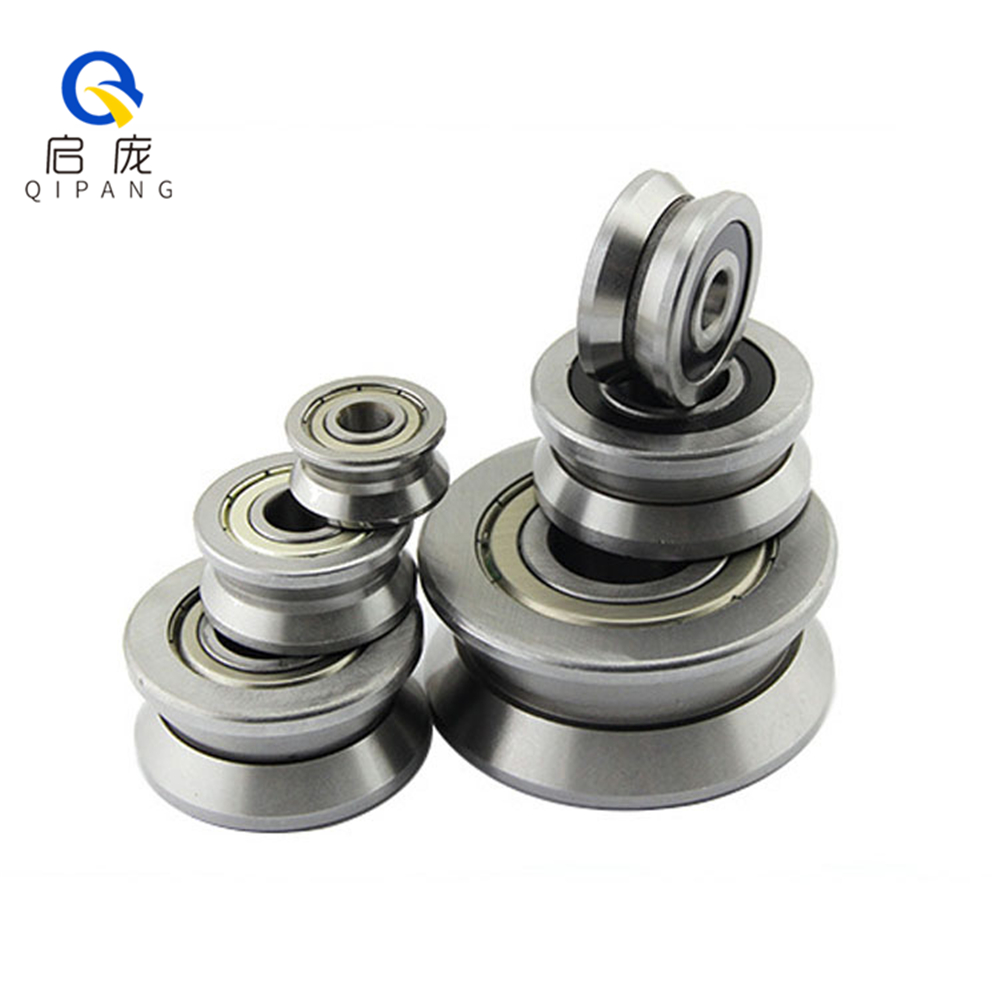

Different shapes of materials are suitable for the straightening wheel groove type, the linear type is suitable for V groove, the bar material is suitable for U groove, and the rectangular flat material is suitable for H groove. There are other more models, please consult Iris for details, WeChat: +8618916332415, Whatsapp: +8613472630866
| Inner diameter*outer diameter*height（mm） | Groove | Material | Groove Width（mm） | Groove depth（mm） |
| 10x32x9 | V/U | Bearing steel | 4 | 1.5 |
| 10X35X9 | V | Bearing steel | 5 | 2 |
| 10x40x14 | U | Bearing steel | 8 | |
| 10x46x16 | V/U/H | Bearing steel | 8 | 3 |
| 10X37X12/14 | U/V | Bearing steel | 8 | 3 |
| 10X37X12/14 | U/V | Bearing steel | 6 | 3 |
| 12x47x12 | U | Bearing steel | 8/6/5/4 | 3/ /2，4/4/3 |
| 12x47x12 | V | Bearing steel | 8/6/5/4 | 3 |
| 17X47X12 | U | Bearing steel | 4/5/6/8 | 2/2/3/3 |
| 17X47X12 | V | Bearing steel | 4/5/6/8 | 2/2/3/3 |
| 17X47X12 | H | Bearing steel | 4/5/6/8 | 2/2/3/3 |
| 10X37X12 | U | Bearing steel | 5/4 | 2 |
| 10X37X12 | H | Bearing steel | 8/7/6/5/4/3 | 3 |

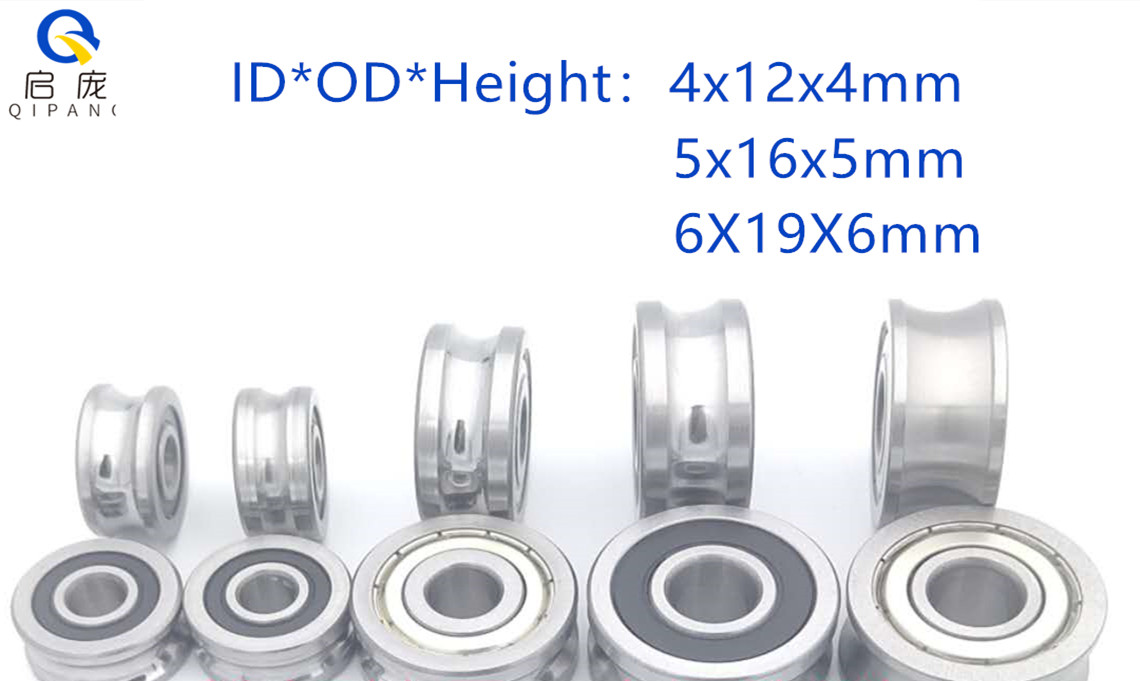

| 4X12X4 | V | Bearing steel | 1//1.5/2 | 0.4 |
| 4X12X4 | U | Bearing steel | 2/1.5 | 0.4 |
| 4X12X4 | V | Bearing steel | 3.5 | 0.6 |
| 3X10X4 | V | Bearing steel | 2 | 0.4 |
| 3X10X4 | U | Bearing steel | 2 | 0.4 |
| 20x62x30 | U | Bearing steel | 10 | 5 |
| 20x62x22 | V | Bearing steel | 18/16/12/10 | 5 |
| 20X62X22 | U | Bearing steel | 16/14/12/10 | 5 |
| 20X62X22 | U | Bearing steel | 8/6 | 4/3 |
| 20X62X22 | H | Bearing steel | 16/15/12/10/8 | 5 |
| 20X52X20 | H | Bearing steel | 15 | 3 |
| 20X52X20 | U | Bearing steel | 4 | 5/6 |
| 20X52X20 | V | Bearing steel | 10 | 3 |
| 8X22X7 | U/V | Bearing steel | 2 | 0.5 |

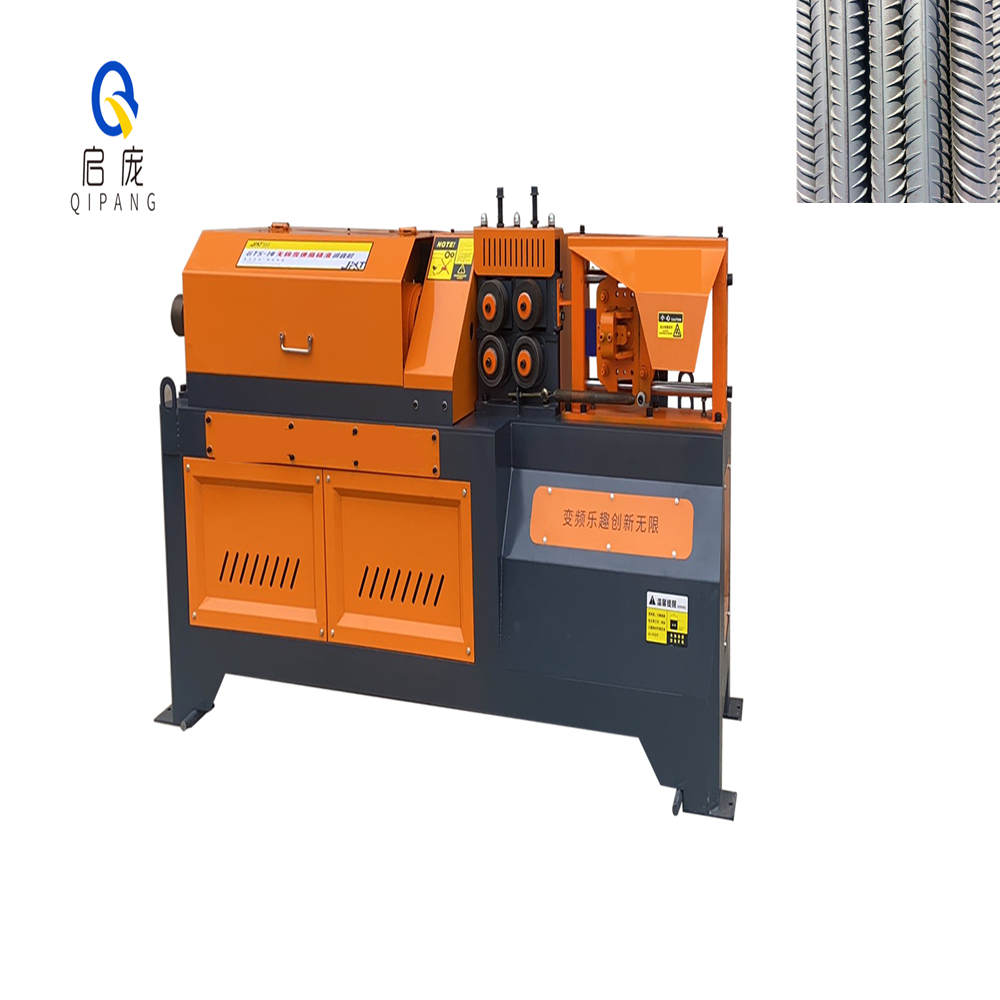

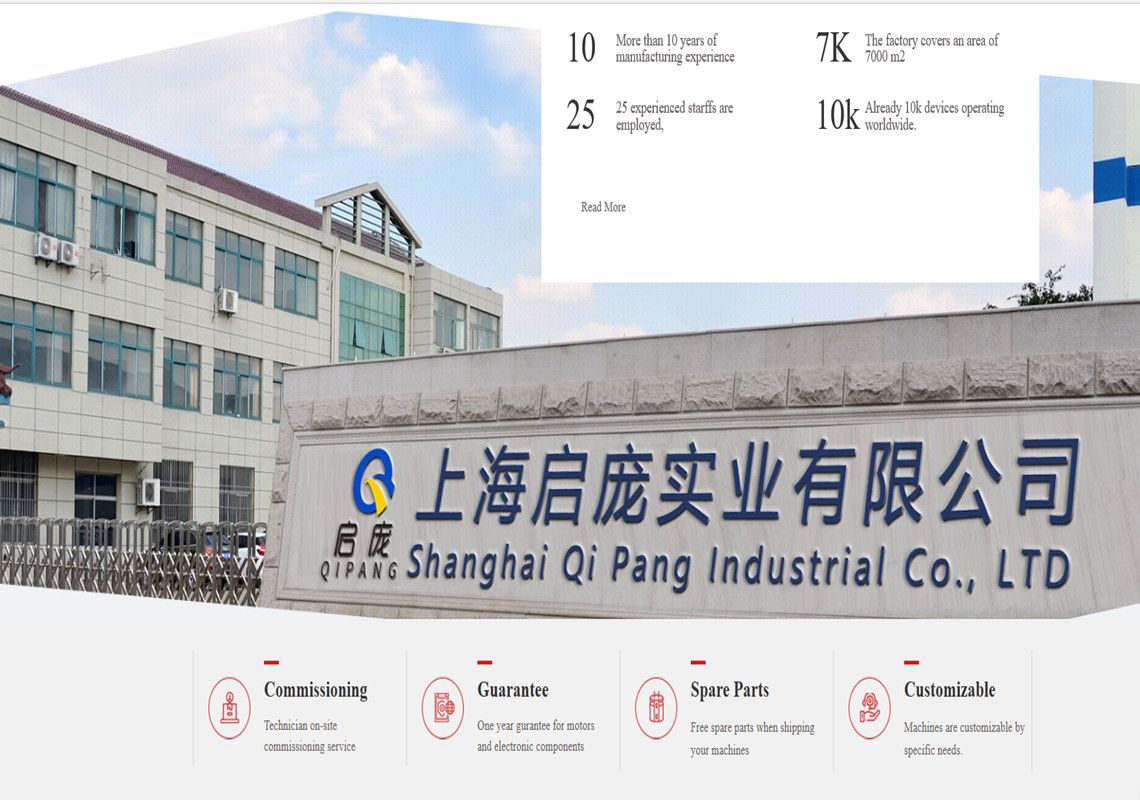

Shanghai QiPang Industrial Co., Ltd. Founded in 2008, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises. We believe that quality is survival, so we only provide you the best products. High quality products, in line with international standards, well received by domestic and foreign customers. All staff in our company are professionally trained, so we can recommend the most suitable equipment for you. Every machine has to pass strict inspection before it goes out. Any questions about the machine will be answered within 24 hours. Welcome to be our new customer! Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.
