Home > Qipang Product > Wire Guide Rollers

QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machineQIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machineQIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machineQIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machineQIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine

QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine

In more than 10 years of activities, QIPANG has been able to continue to grow and develop, gaining a world-leading position in the production of equipment for the metal wire, cable and pipe industries.

QIPANG has long-term cooperation with important customers, and believes that important customers are reliable partners for those who need high-quality wire straighteners, wire guides,  cutting devices and Forming and bending machine, suitable for solid wire 6-14mm, pipe diameter less than 20mm.

Share:
  • QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine
  • QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine
  • QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine
  • QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine
  • QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine
  • Description

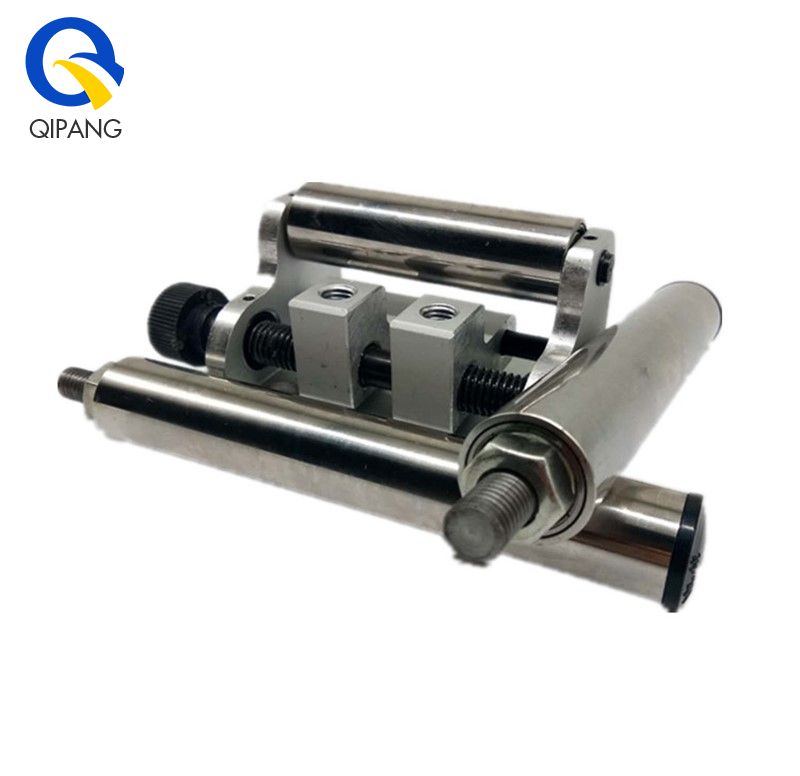

QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine




Product description:

Within its wide products range Qipang offers the wire guide model QP and XD, suitable for both round wires and strips. The QP and XD structure makes it possible to assemble the rollers in different configurations, horizontal, vertical or oblique in order to suit the different materials shapes.

The rollers suface is ground and hardened and on customer demand for a minum of 5 devices ordered, Qipang can provide rollers surface chrome plating treatment. The wire guide is available in seven sizes with maximum rollers opening as follows:

35mm、40mm、42mm、54mm/55mm、64mm、75mm、95mm

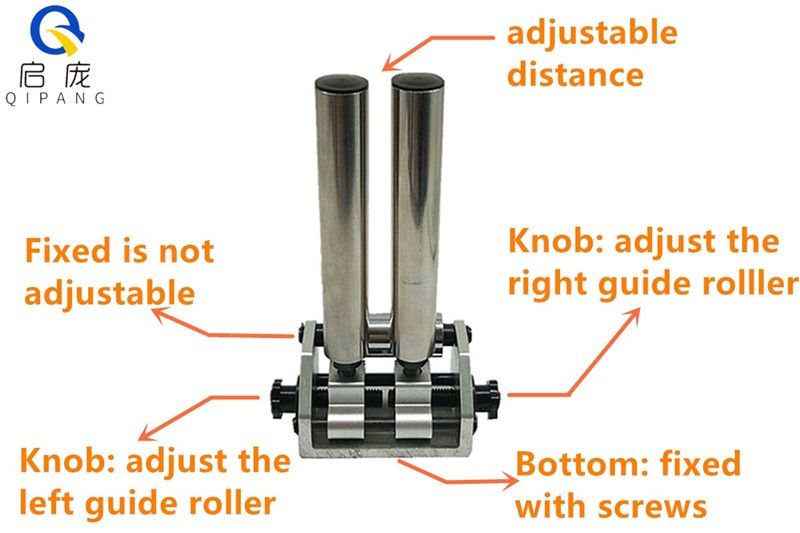

QIPANG GP3-20/30/40/50/60 stable three rollers wire

Three rollers wire & cable guides parameters:

ModelMax adjustable range mmScrew eye mmBase mmHorizontal roller length mmVertical roller length mm
QP204070*40
100*65Dia. 25, length 84Dia. 25, length 80
QP304070*60100*80
Dia. 25, length 84Dia. 25, length 150
QP4055
72*72125*90
Dia. 32, length 106Dia. 32, length 200
QP507590*104
132*161
Dia. 38, length 132Dia. 38, length 250
QP6095104*110
140*180
Dia. 38, length 150Dia. 38, length 250
XD203540*42
95*64
Dia. 25, length 67Dia. 25, length 150
XD303560*6295*80
Dia. 25, length 67Dia. 25, length 150
XD404270*80
126*106Dia. 32, length 101Dia. 32, length 200
XD5054
102*110160*132Dia. 38, length 130Dia. 38, length 250
XD6064119*110
180*150
Dia. 38, length 150Dia. 38, length 250

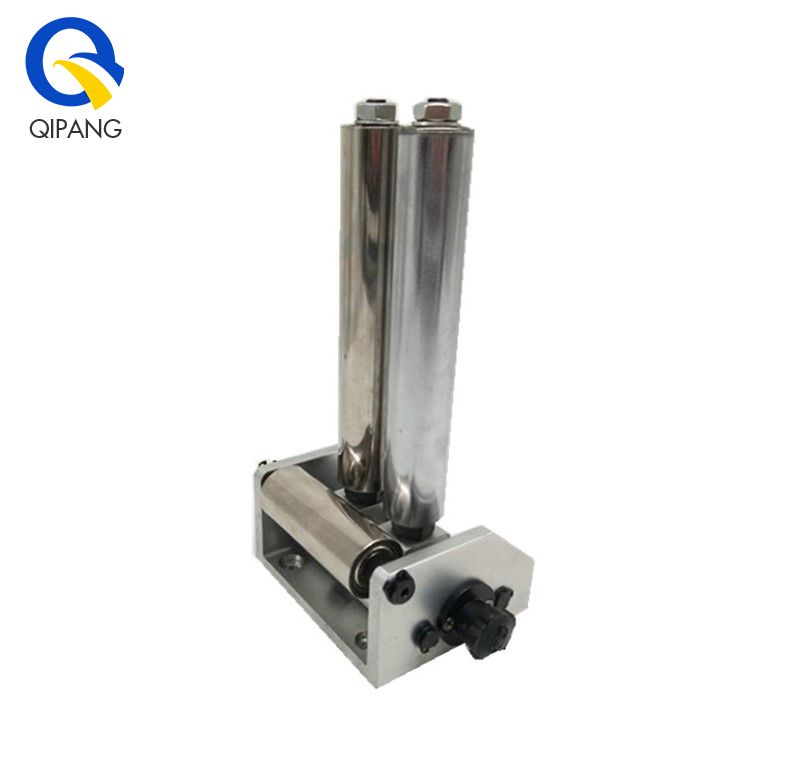

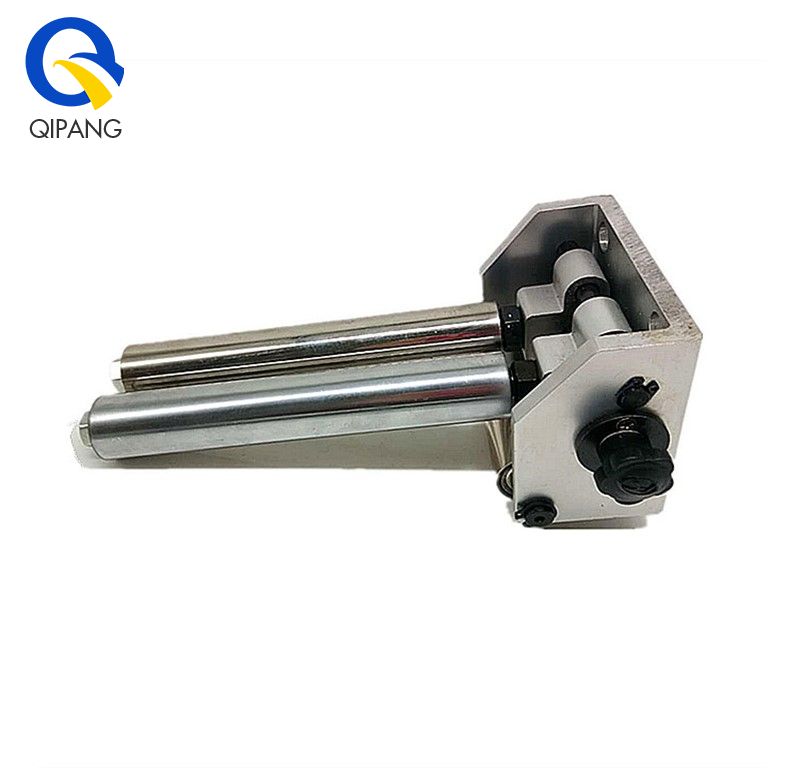

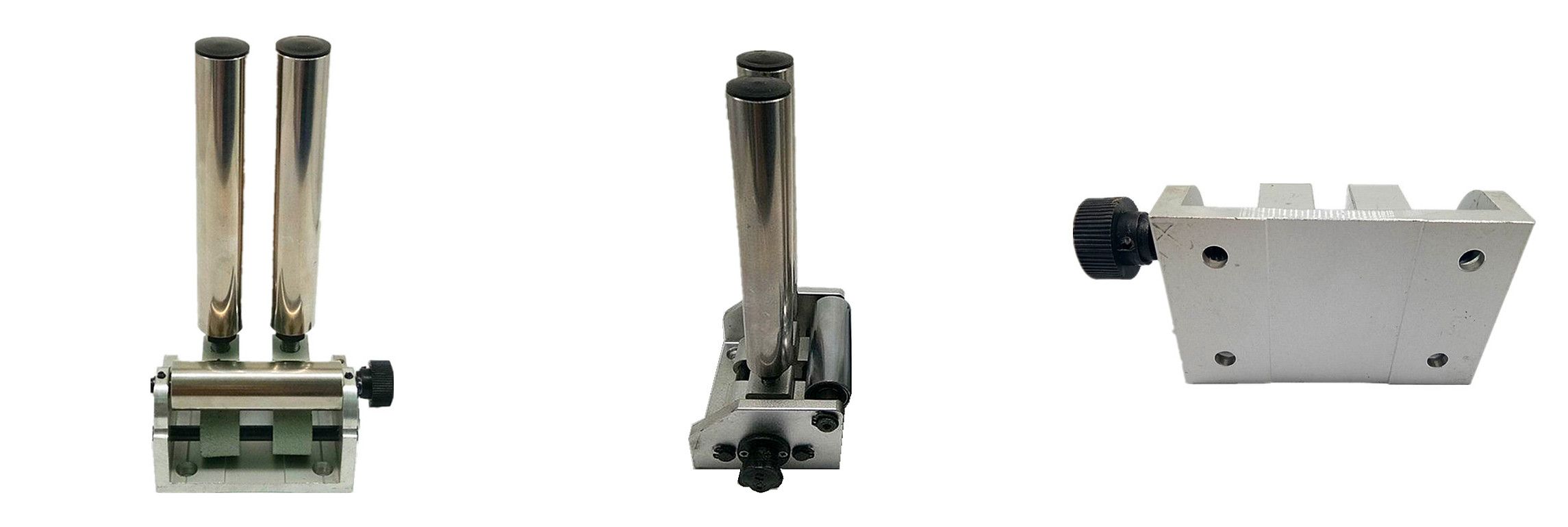

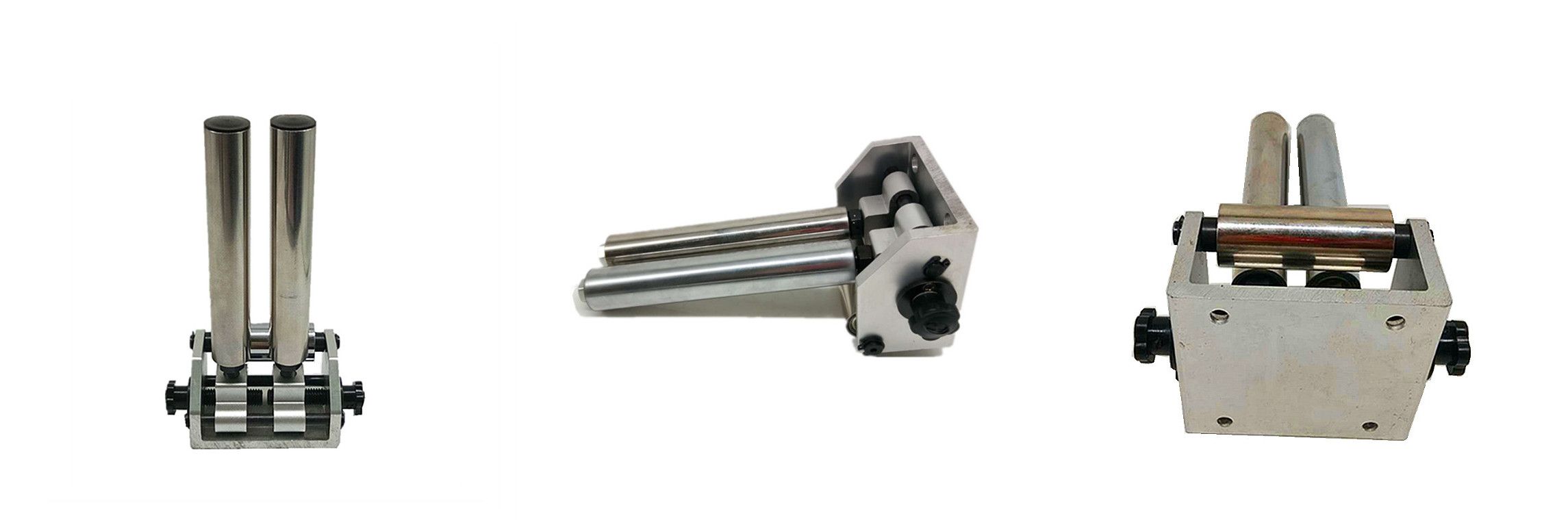

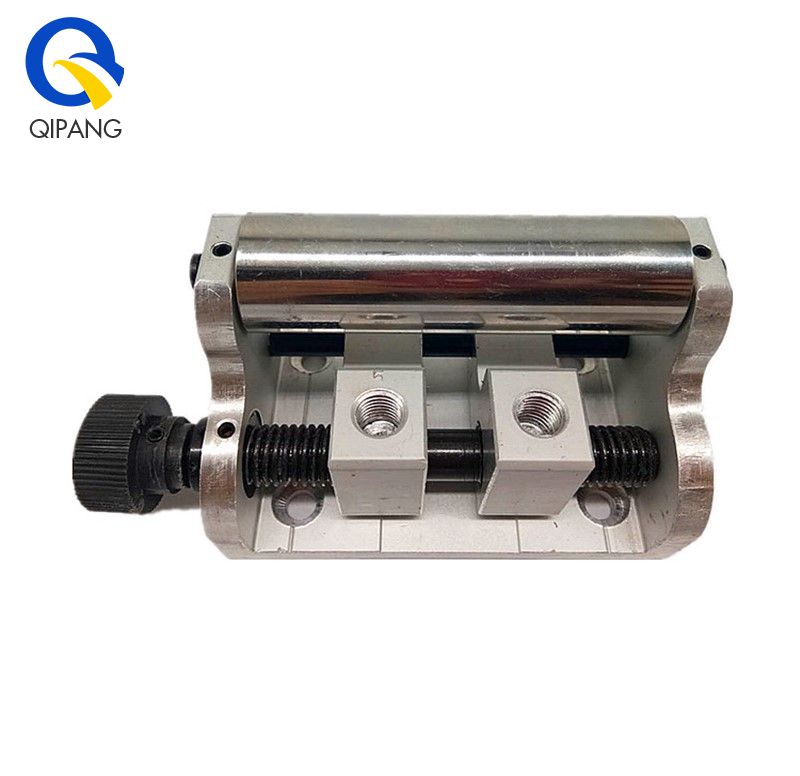

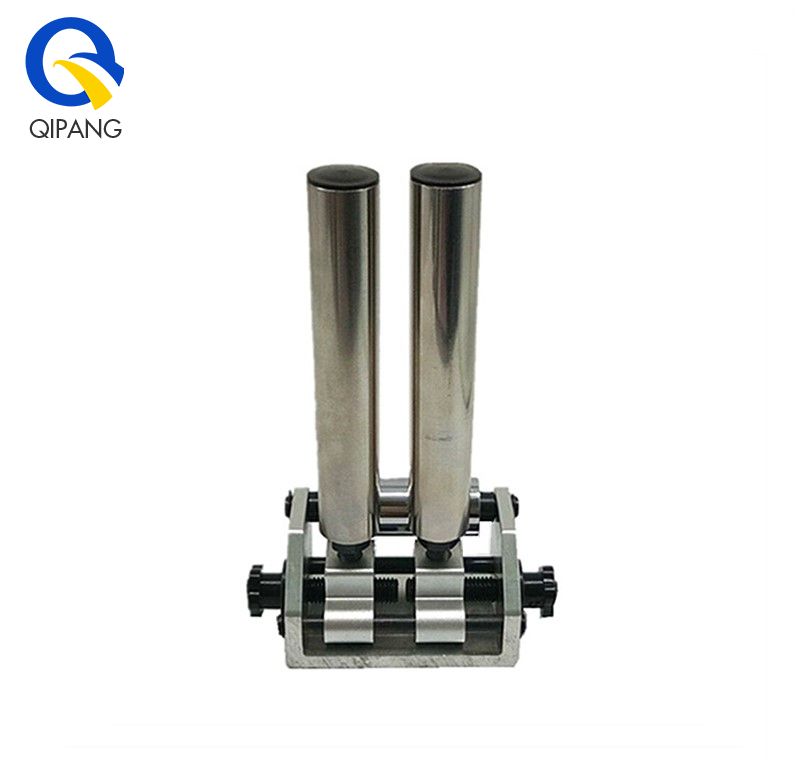

Three rollers wire & cable guides picture shows:

QIPANG GP3-20/30/40/50/60 stable three rollers wire

QIPANG GP3-20/30/40/50/60 stable three rollers wire

QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine

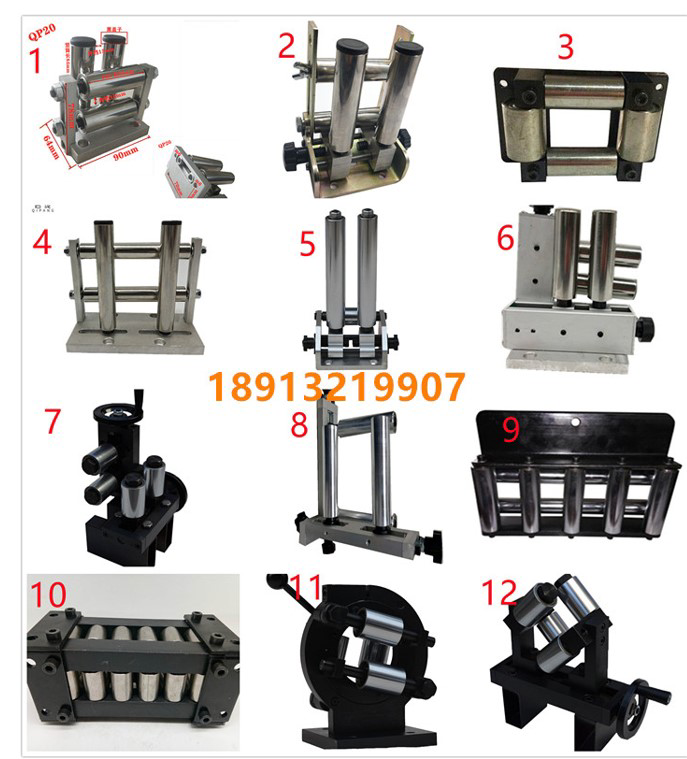

Other types:


QIPANG GP3-20/30/40/50/60 stable three rollers wire


About Qipang:


In more than 10 years of activities, QIPANG has been able to continue to grow and develop, gaining a world-leading position in the production of equipment for the metal wire, cable and pipe industries.



QIPANG has long-term cooperation with important customers, and believes that important customers are reliable partners for those who need high-quality wire straighteners, wire guides,  cutting devices and Forming and bending machine, suitable for solid wire 6-14mm, pipe diameter less than 20mm.



CNC machining center has 10  sets, high machining precision, forming precision can be controlled, fast speed, high efficiency.   Since 1997, QIPANG working methods have been provided by the wishes of the founders David wang, from 360 ° control of the supply chain from equipment design to parts production. Continued investment in product development keeps QIPANG  at the forefront and provides competitive products in terms of quality and price.



Since 2011, in addition to the equipment used to process wires, cables and pipes, which has been a feature of the QIPANG product range, QIPANG has put its capabilities and expertise into practice in the manufacture of thread cutting machines equipped with unwinders. A major achievement and international honor in the company's history, the production of machines serving the thread industry is destined to be more and more, providing customers around the world with customized solutions designed according to specific needs to provide products designed for each production Designed for reality.


The high quality of QIPANG products, efficient after-sales service, and an extensive network of agents and distributors ensure that the customer's attention is always received from the moment of purchase to the product life cycle.

The company's consistent principles are quality, timely delivery, reasonable prices and after-sales service.


After-sales service:

After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.

QIPANG GP3-20/30/40/50/60 stable three rollers wire


QIPANG GP3-20/30/40/50/60 stable three rollers wire & cable guides for winding machine

FAQ:

Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.


Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.


Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.

Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
