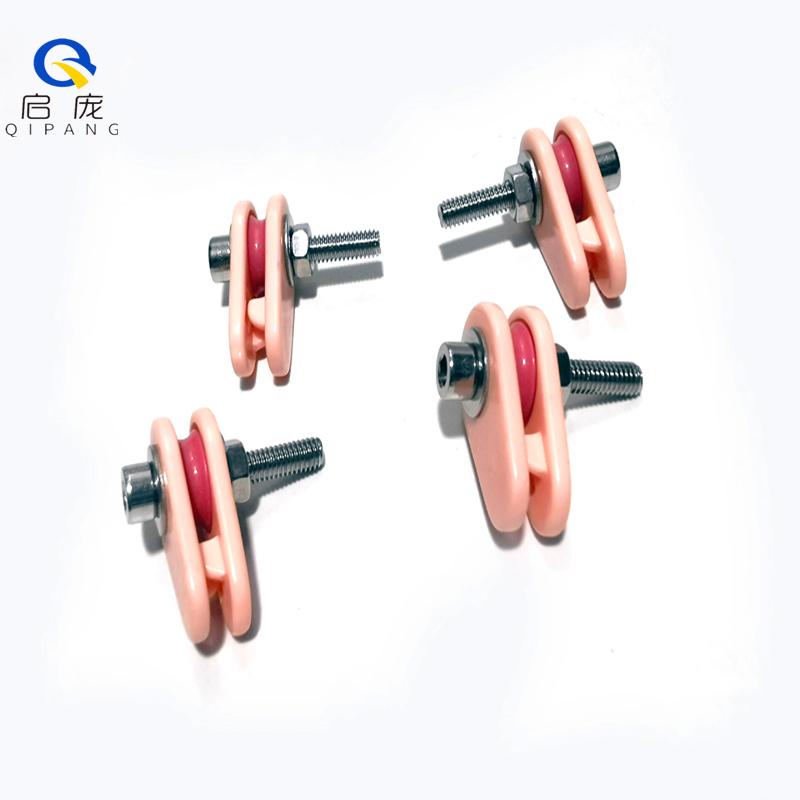

NT003 Preventer for Coil Winding Machine Wire Guide Heads yarn Jump Preventer

NT003 Preventer for Coil Winding Machine Wire Guide Heads  yarn Jump Preventer

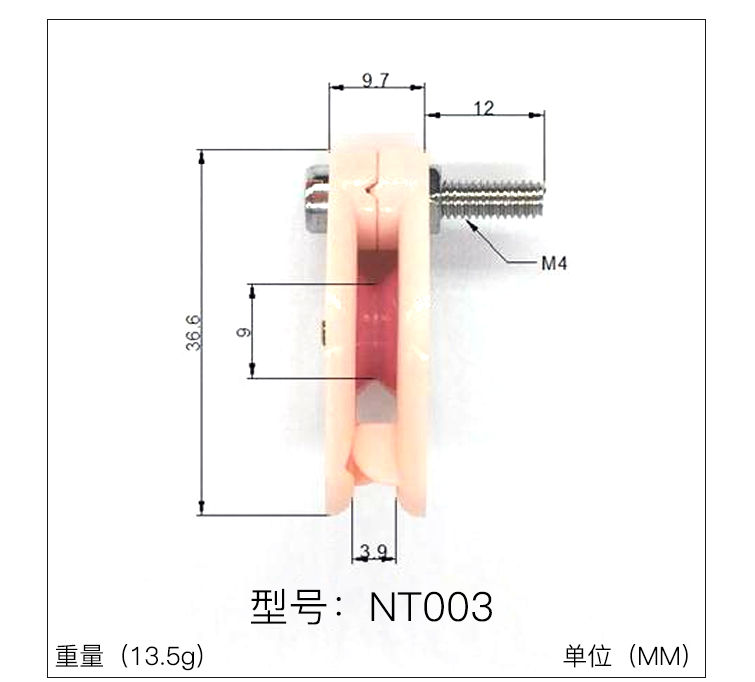

Due to the characteristics of ceramic products, the size on the picture may have a little error, which is a normal phenomenon.

The wire protector is used for enameled wire to change direction greatly and make proper guidance and prevent wire jumping during
winding.In the middle, the enamel ring is made of precision ceramics, which is beyond polishing to Ra. 0.2 porcelain ring is
equipped with high speed bearing, so that the delayed sliding distance between the enameled wire and the porcelain ring is less
than 0.2mm to protect the integrity of the paint film and ensure the runout of the enameled wire within a very small range, and
maintain the stability of tension.


Share:
  • Description
Product Name:
Wire jump preventer NT003
Material:
99.7% Alumina
Place of Origin:
shanghai China
Brand Name:
qipang
Model:
NT004
Material:
99%AL2O3 with steel ball
Function:
Prevent the wire jumping out
Polish:
Fine Polish degree Ra0.2
Bearing:
High speeding bearing
Color:
Pink & Red
Screw Dia:
M4
Weight:
20g
Minimum Order Quantity:
100 Pcs
Packaging Details:
Carton With Foam
Delivery Time:
3 working days
Payment Terms:
T/T, Western Union, Money Gram, Paypal
Supply Ability:
50,000pcs per month
