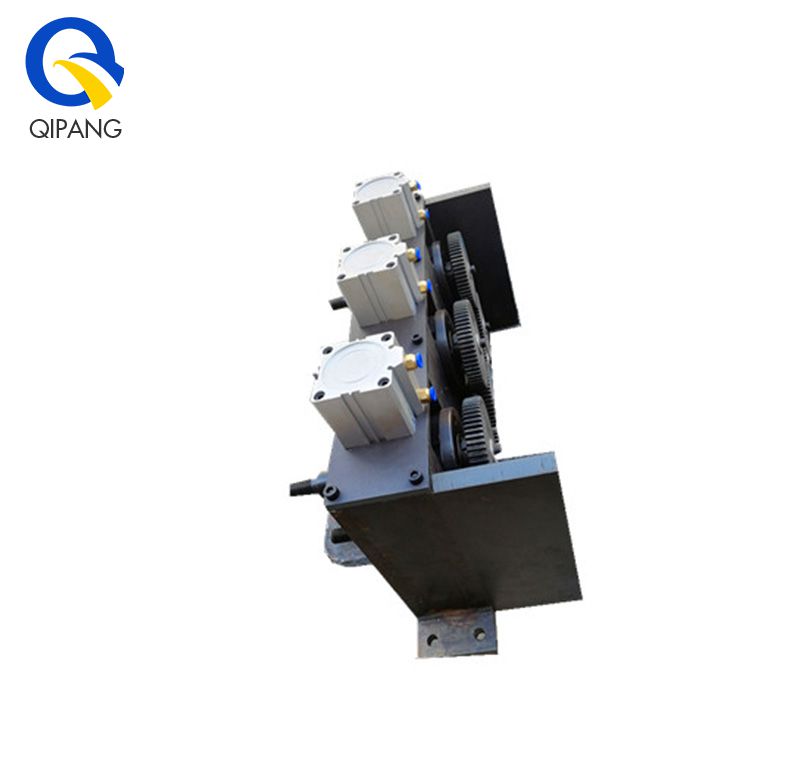

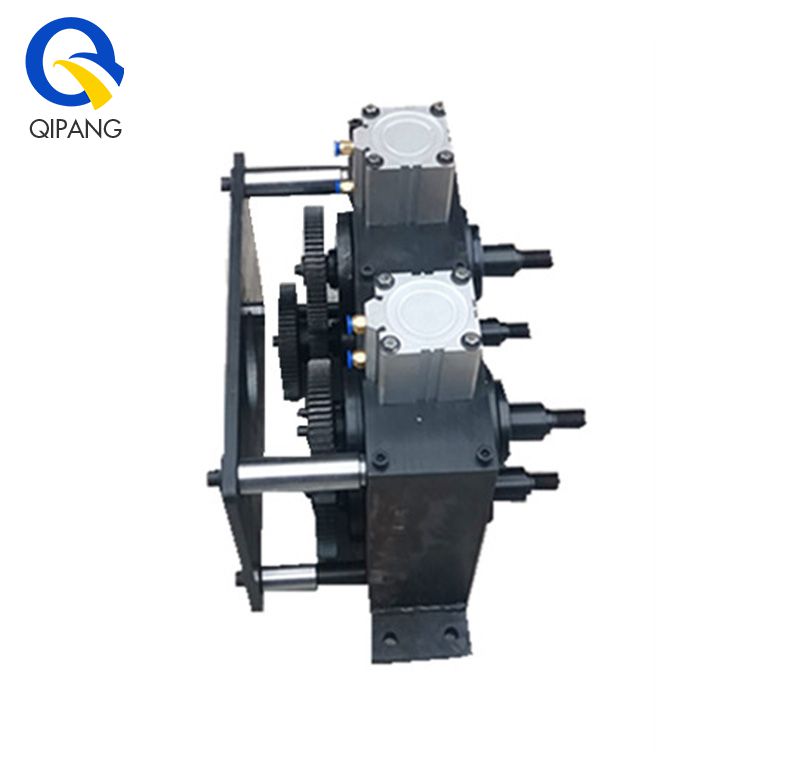

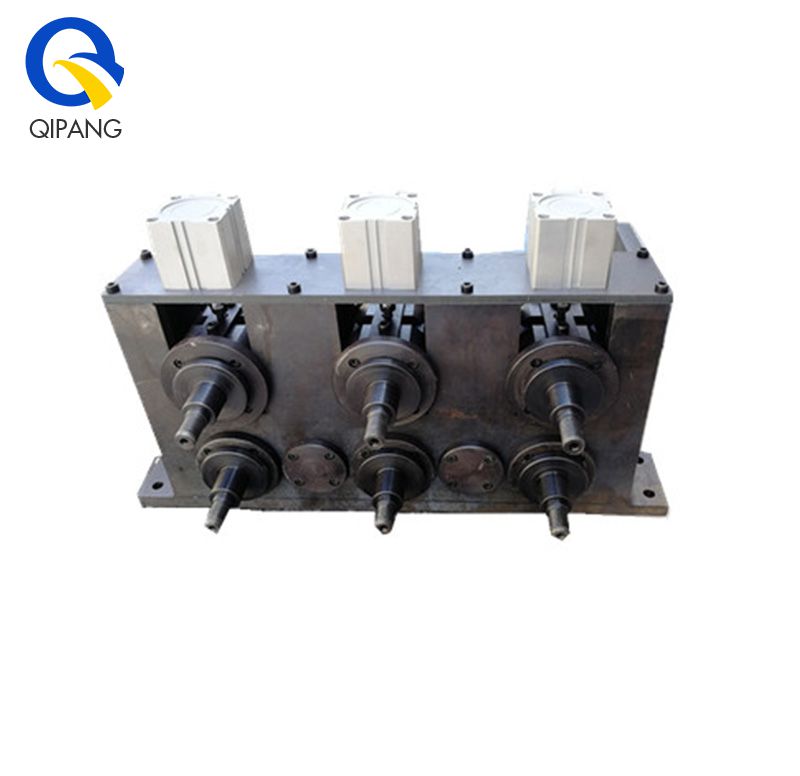

QIPANG affordable new two groups of wire traction feeding mechanism one year warranty

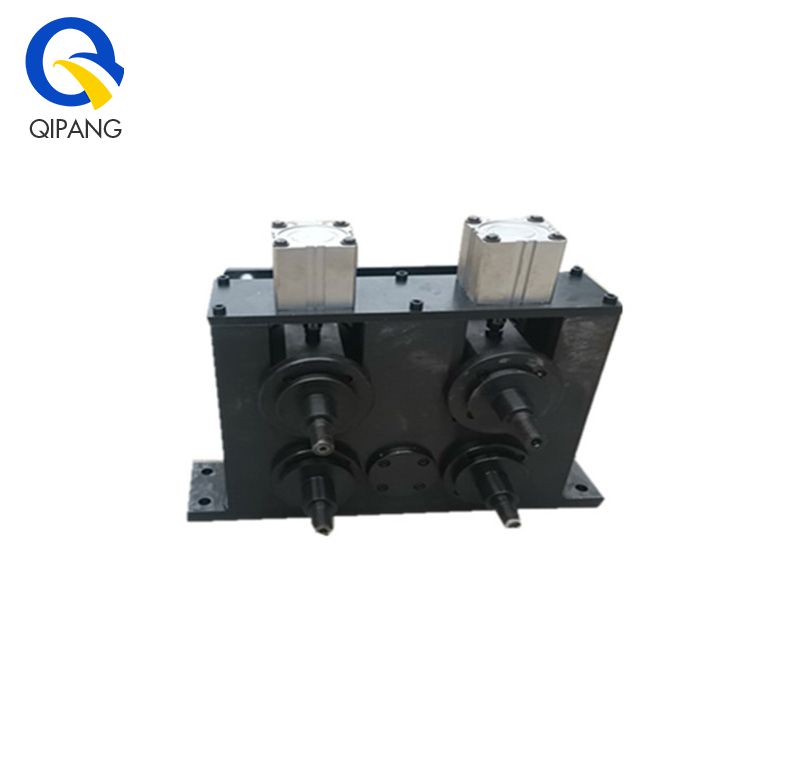

4 rolls feeder(steel material)
Roller dia: 70mm standard
Hardened tool steel rolls

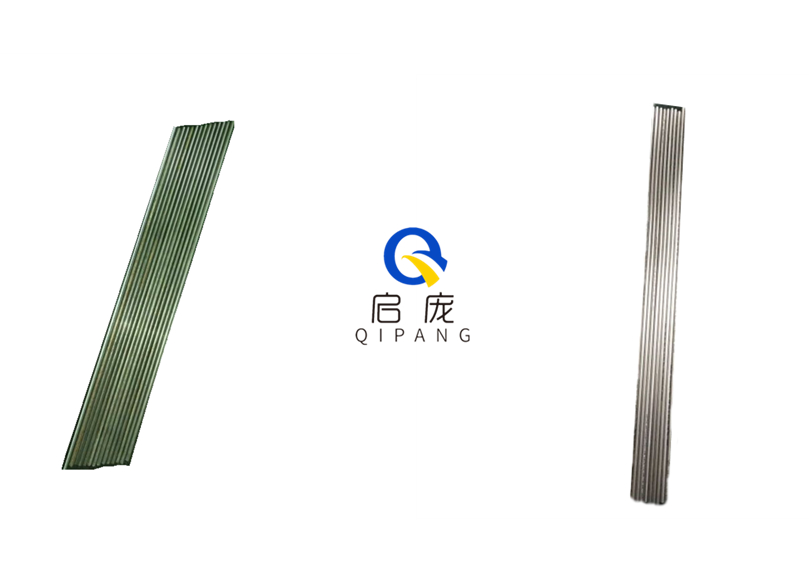

suit for wire material such as the steel wire, copper wire
Ability to handle material diameters 0.5mm to 30mm

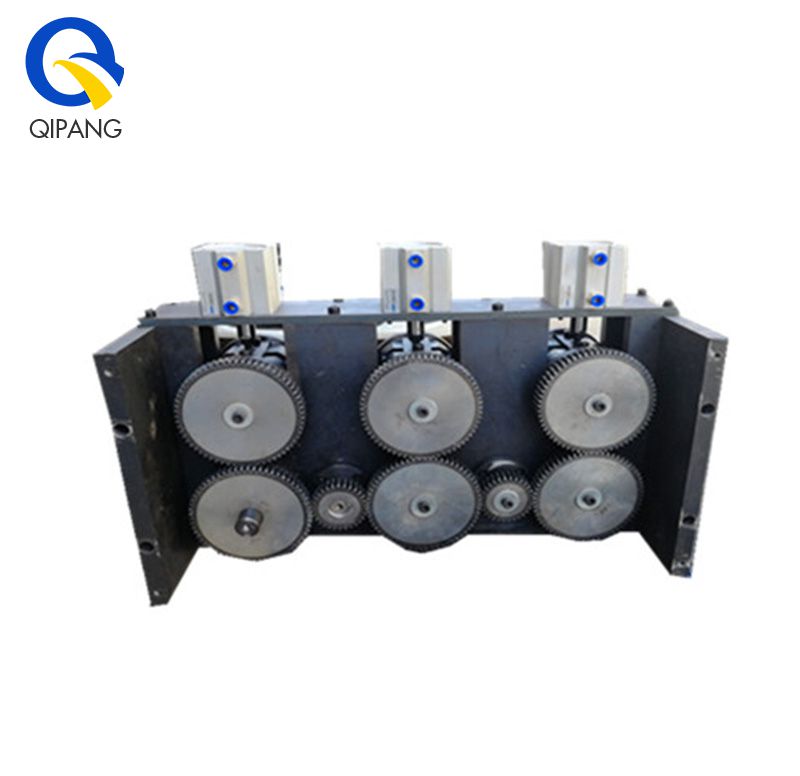

Toothed belt dual driven rolls or chain drive rolls
Various number of rolls, clamping methods, and drive styles for a specific pulling force
Hydraulic, pneumatic, or manual adjustment
Custom built machines that can include feeders and straighteners
Straightener Type

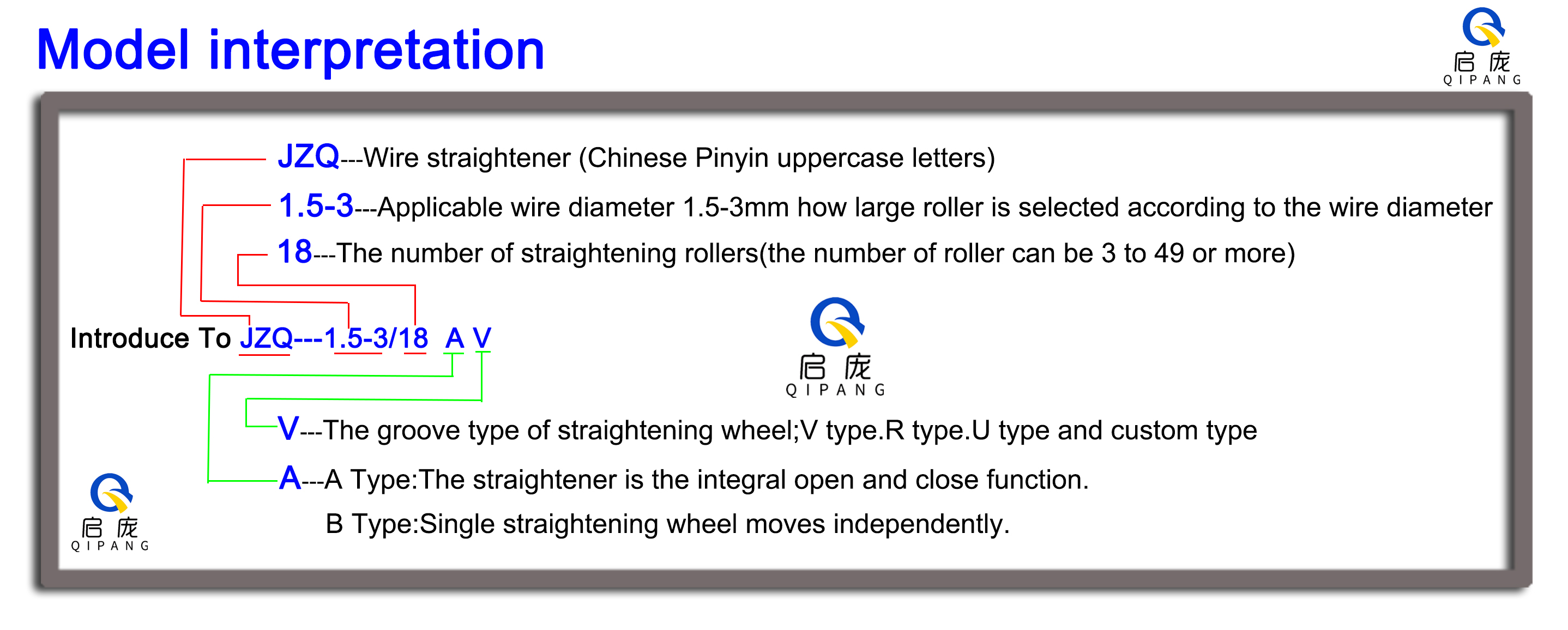

| Model | Type | Wire Diameter (Solid) | Roller Diameter (mm/inch) | Roller Qty (pcs) | structure | groove |
| JZQ 0.05-0.2/38AV | V-7 | φ0.05-0.2mm | 7（0.276） | 38 | quick clamping | V |
| JZQ 0.2-0.5/34AV | V-12 | φ0.2-0.5mm | 12（0.472） | 34 | V | |
| JZQ 0.5-0.8/26AV | V-16 | φ0.5-0.8mm | 16（0.630） | 26 | V | |
| JZQ 0.8-1.5/5/18AV | V-23 | φ0.8-1.5mm | 23（0.906） | 5/18 | V | |
| JZQ 1.5-3/5/18AV | V-30 | φ1.5-3mm | 30（1.181） | 5/18 | V | |
| JZQ 3-4/18AV | V-32 | φ3-4mm | 32（1.260） | 18 | V | |
| JZQ 4-7/14/18/22AV | V-42 | φ4-7mm | 42（1.654） | 14/18/22 | unclamping | V |
| JZQ 5-8/14/18/22AV | V-54 | φ5-8mm | 54（2.126） | 14/18/22 | V | |
| Model | Type | Tube/Pipe Diameter (Hollow) | Roller Diameter (mm) | Roller Qty (pcs) | structure | groove |
| JZQ 1-3/14/18 BU/R | U-30 | 1-3mm | 30 | 18/14 | quick clamping | U/R |
| JZQ 4-10/14/18/22 BU/R | U-42 | 4-10mm | 42 | 14/18/22 | unclamping | U/R |
| JZQ 10-20/14/18/22 BU/R | U-54 | 10-20mm | 54 | 14/18/22 | unclamping | U/R |
| I. Different groove types can be customized. II. Quick clamping is straightener with a handle for easy opening and closing the rollers | ||||||
Straightener adjustment diagram

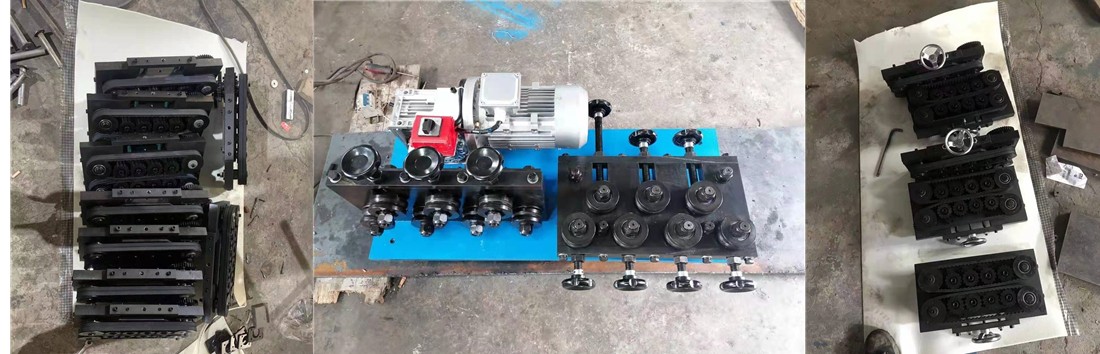

Straightener series
Our company
Shanghai Qibang Industrial Co., Ltd.Founded in 2000, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.
We believe that quality is survival, so we only provide you the best products.
High quality products, in line with international standards, well received by domestic and foreign customers.
All staff in our company are professionally trained, so we can recommend the most suitable equipment for you.
Every machine has to pass strict inspection before it goes out.
Any questions about the machine will be answered within 24 hours.
Welcome to be our new customer!
Wire Straightener Machine After-sales service：
1.Maintenance period: one year
2.Training how to install the machine, training how to use the machine.
3.Engineers available to service machinery overseas.
4.Test the machine before shipment
5.Provide technical guidance relate to use the machine
6.Provide the spare parts at cost price after warranty period
7. Collect the feedback for the machine working
Pls tell me the following questions, so we can send you accurate quotation with additional discount:
1，What's the diameter of your steel wire ? Minimum and maximum range，How to choose the right straightener according to their own material?
2，Does the raw material come in rolls, in bundles, Hollow roll or solid material?
3，Have you used it before? Now do you have any pictures you want to send to us?
4，If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely ：13472630866
Customer Make QIPANG Wire Straightener
We can design and produce the wire straightener according to customer requirements.
1. Material ( steel,copper )
2. Diameter of steel wire or steel tube or copper tube
3. Operating speed ( m / min )
4. Single plane or double plane
5. If need qucik lever, if need guide roller, if need solid base
Equipment Reconstruction and Update
Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.
Before making an order, had better consult with us.
Read more:
https://www.wire-straightener.com/wire-straighteners/
FAQ:
Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q:What is your terms of packing?

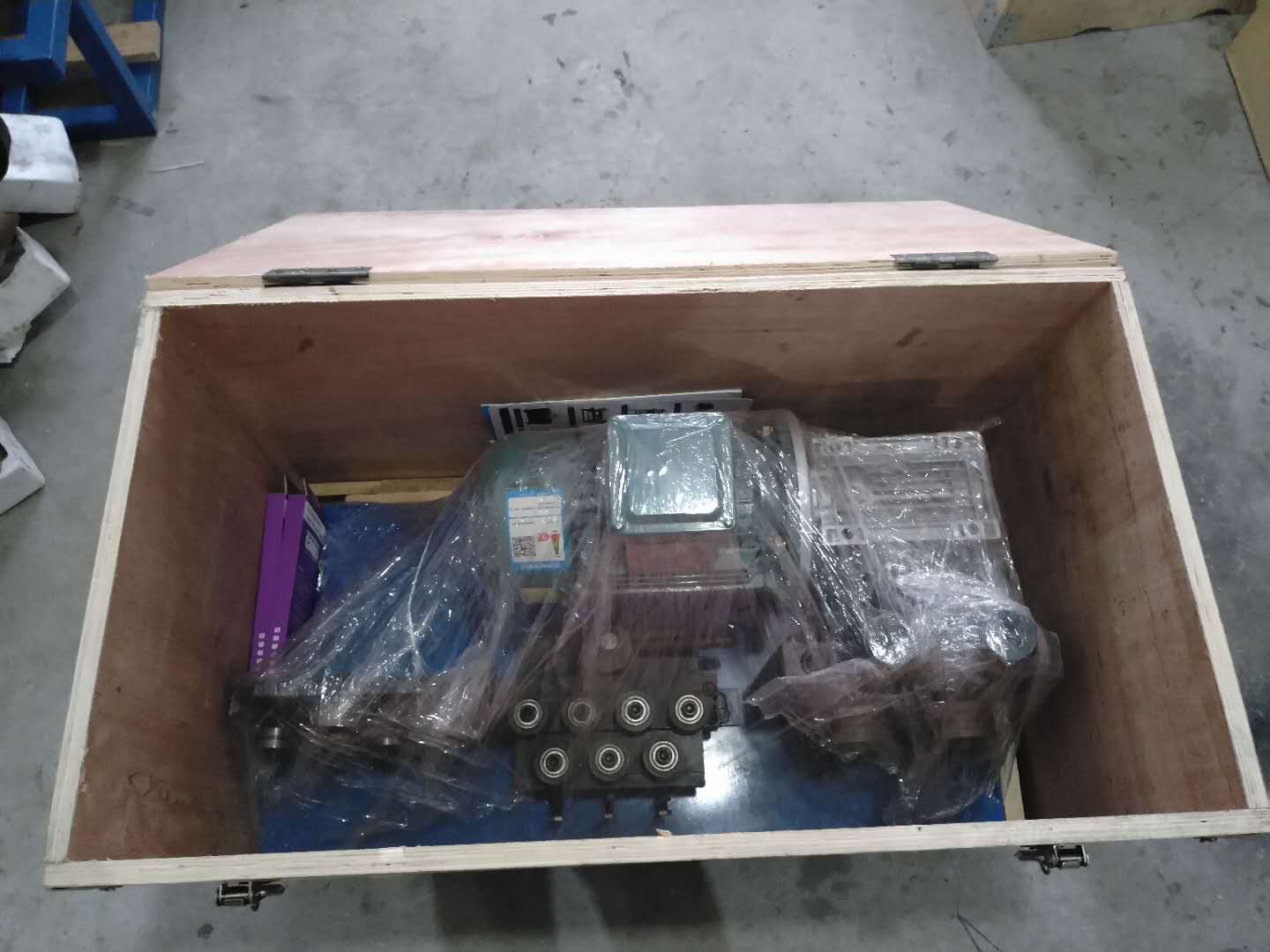

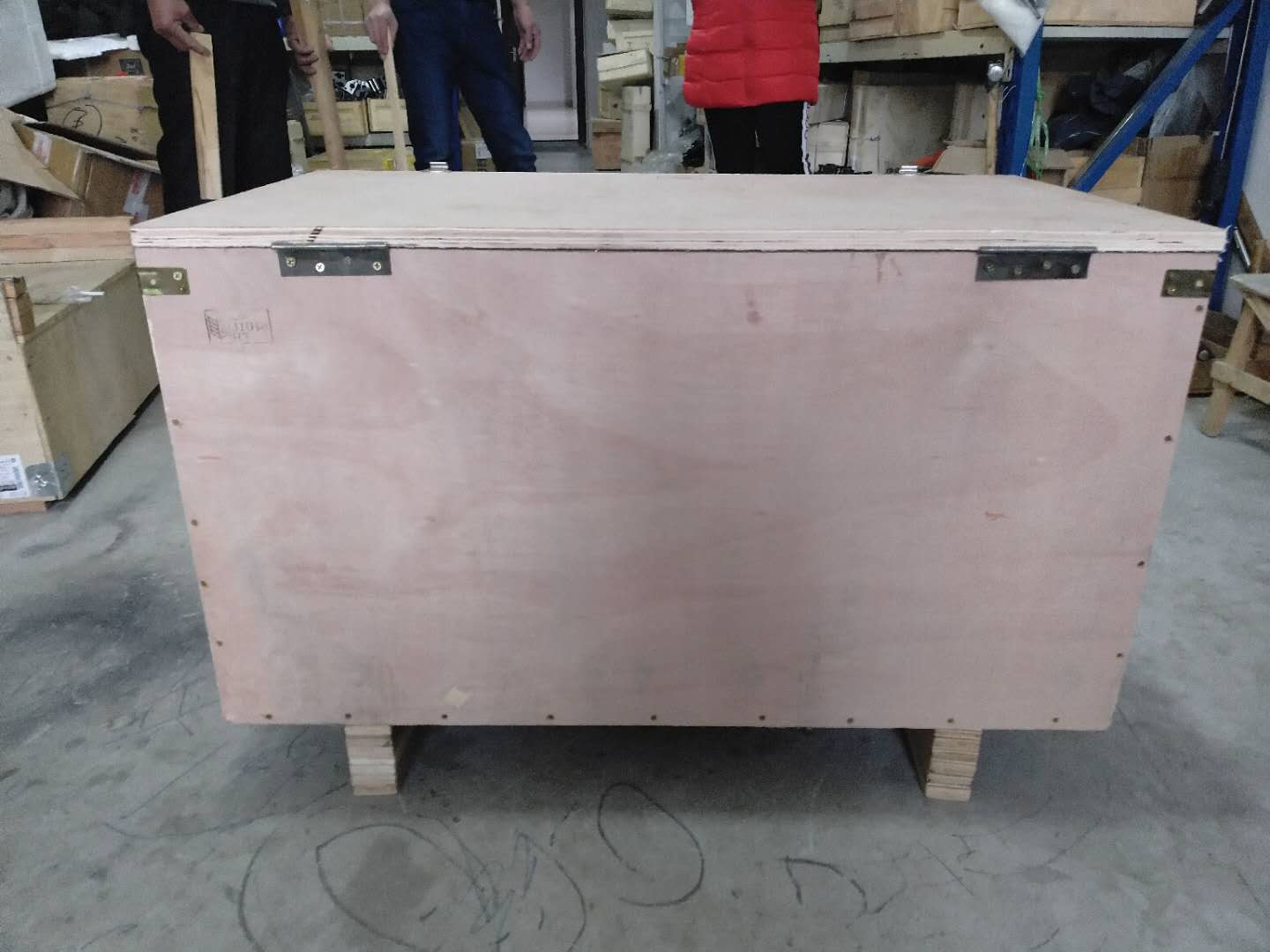

A: Generally, we pack our goods in neutral white boxes or wooden cartons.
Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
