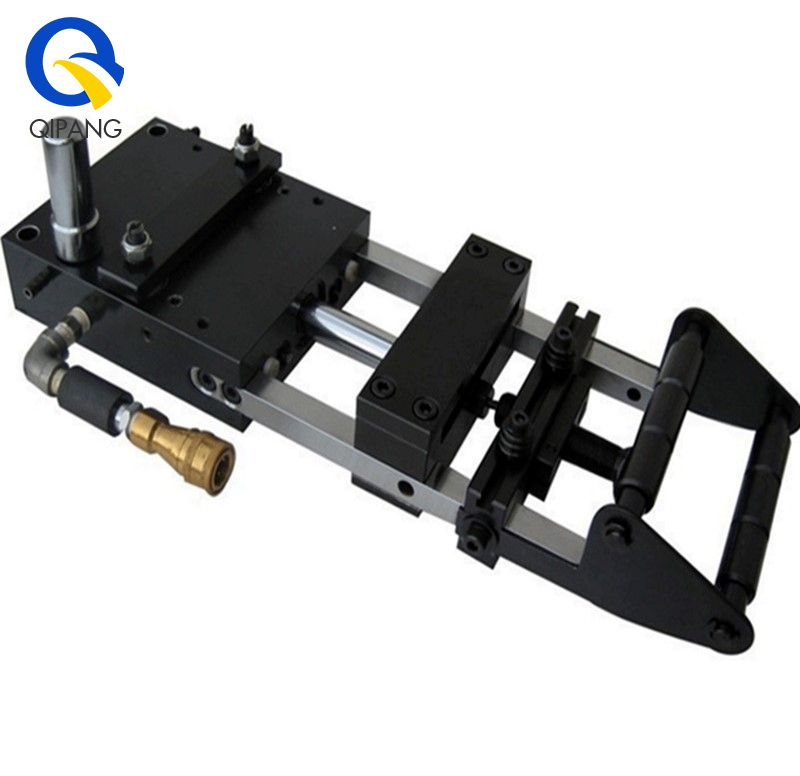

QIPANG latest research and development affordable fancy air feeder principle

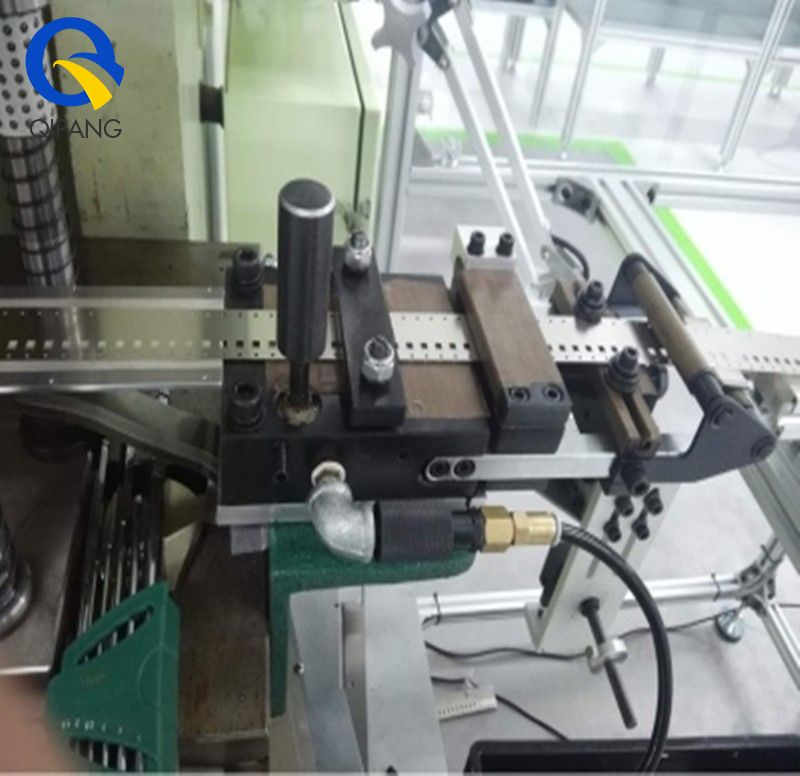

1.Superior versatility.
Air feeder offer unmatched production flexibility. Their cost-effective operation often justifies permanent installation on die sets to minimize job setup time.
2.Easy installation and removal make air feeder the most versatile type of feeding equipment available. Two bolts are all it takes to install one. Stroke length and speed adjustments are positioned for easy access.
3.Feed a variety of material in any direction.
All kinds of coil stock plus paper, plastic, wire, fabrics, foil, tubing, extruded and preformed shapes can be fed at short and long progressions, and at different production speeds. Air feeder are unequalled in handling both thin and delicate materials. Several actuation options allow our feeds to be used on standard production presses, electric presses, hydraulic presses, wire forming machines, multi-slide machines and special machines.
4.We offer a comprehensive range of standard models to feed flat stock up to 16” (406mm) wide, .150” (3.81mm) thick, and in lengths up to 20” (508mm). Pulling capacities of up to 250 pounds (114kg) are available on heavy duty models. Our smallest feed is capable of 260 cycles per minute at a 2” (50.8mm) progression and can cycle much faster at shorter progressions. Special models are available to meet unusual feeding requirements
7 roll straightener

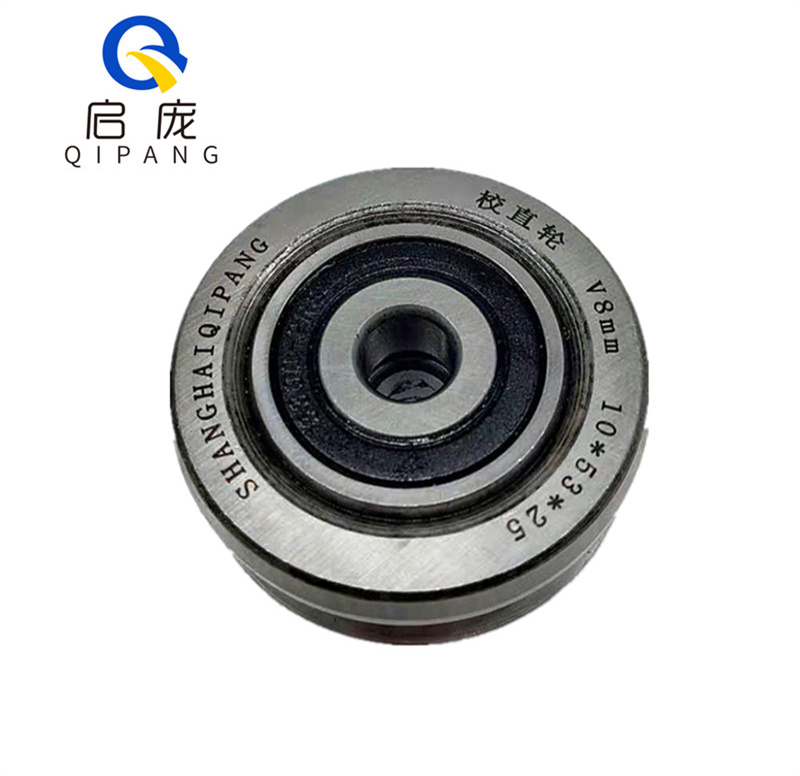

· With 7rollers
· Use for thin diameter and as a wire guide
· Can adjust the screw

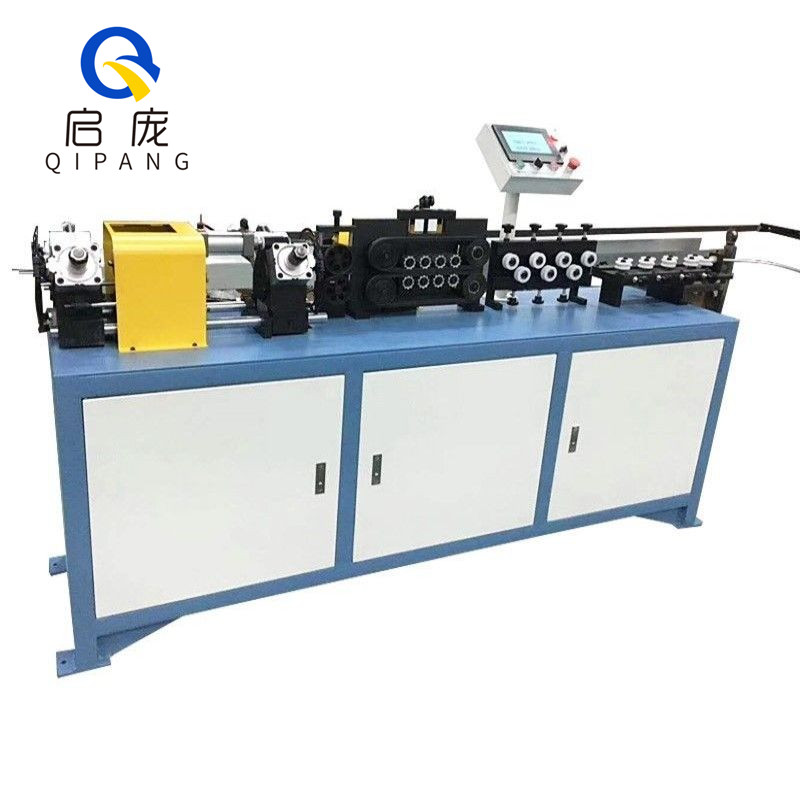

Wire Straightener and Cutter Machine Advantages ：
1. We have CE&SGS certification ，ISO1990 Quality system certification ,so on...
2, Good quality and professional pre - sales, after - sales service
3, 13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Greece), Southeast Asia, etc.
4. Flexible development and customization OEM ODM
5. Excellent consulting team covering the world
6. Fast spare parts distribution and sufficient inventory

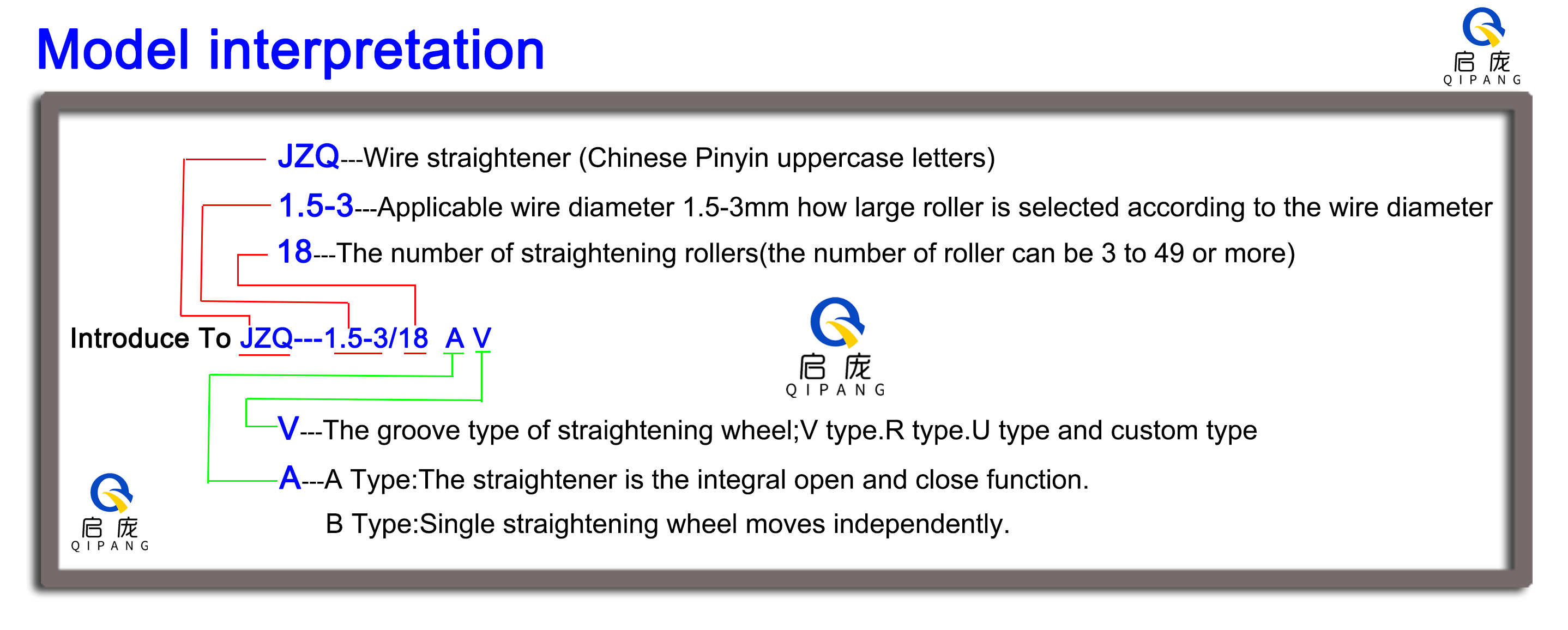

Straightener type introduction:
| Model | Type | Wire Diameter (Solid) | Roller Diameter (mm/inch) | Roller Qty (pcs) | structure | groove |
| JZQ 0.05-0.2/38AV | V-7 | φ0.05-0.2mm | 7（0.276） | 38 | quick clamping | V |
| JZQ 0.2-0.5/34AV | V-12 | φ0.2-0.5mm | 12（0.472） | 34 | V | |
| JZQ 0.5-0.8/26AV | V-16 | φ0.5-0.8mm | 16（0.630） | 26 | V | |
| JZQ 0.8-1.5/5/18AV | V-23 | φ0.8-1.5mm | 23（0.906） | 5/18 | V | |
| JZQ 1.5-3/5/18AV | V-30 | φ1.5-3mm | 30（1.181） | 5/18 | V | |
| JZQ 3-4/18AV | V-32 | φ3-4mm | 32（1.260） | 18 | V | |
| JZQ 4-7/14/18/22AV | V-42 | φ4-7mm | 42（1.654） | 14/18/22 | unclamping | V |
| JZQ 5-8/14/18/22AV | V-54 | φ5-8mm | 54（2.126） | 14/18/22 | V | |
| Model | Type | Tube/Pipe Diameter (Hollow) | Roller Diameter (mm) | Roller Qty (pcs) | structure | groove |
| JZQ 1-3/14/18 BU/R | U-30 | 1-3mm | 30 | 18/14 | quick clamping | U/R |
| JZQ 4-10/14/18/22 BU/R | U-42 | 4-10mm | 42 | 14/18/22 | unclamping | U/R |
| JZQ 10-20/14/18/22 BU/R | U-54 | 10-20mm | 54 | 14/18/22 | unclamping | U/R |
| I. Different groove types can be customized. II. Quick clamping is straightener with a handle for easy opening and closing the rollers | ||||||

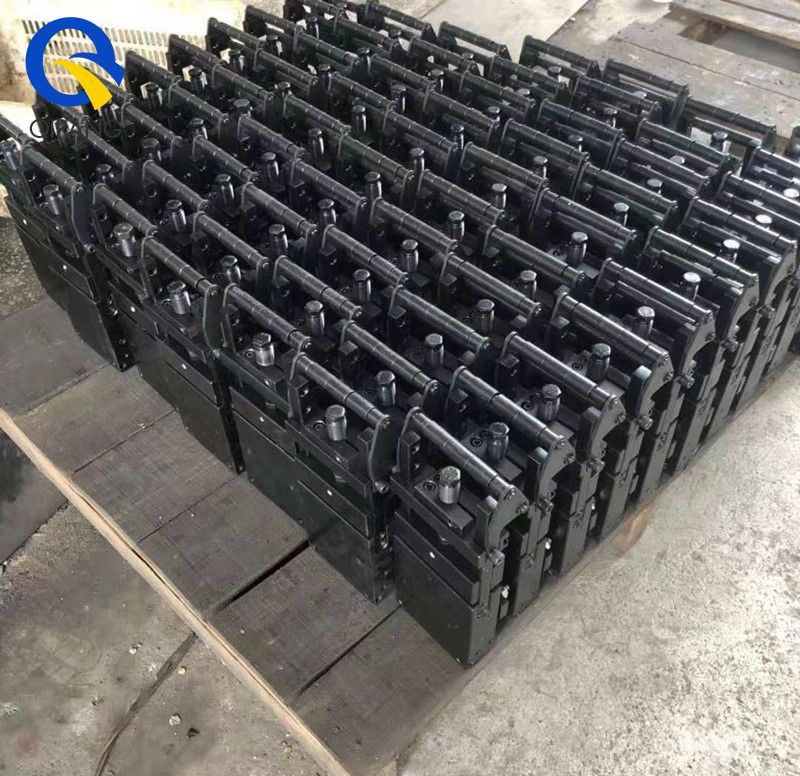

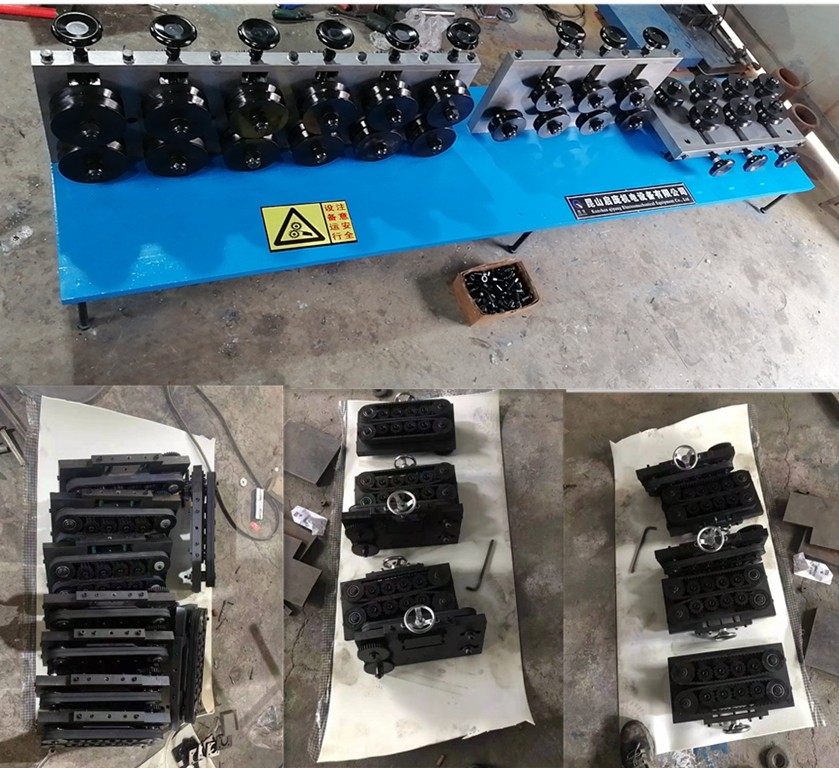

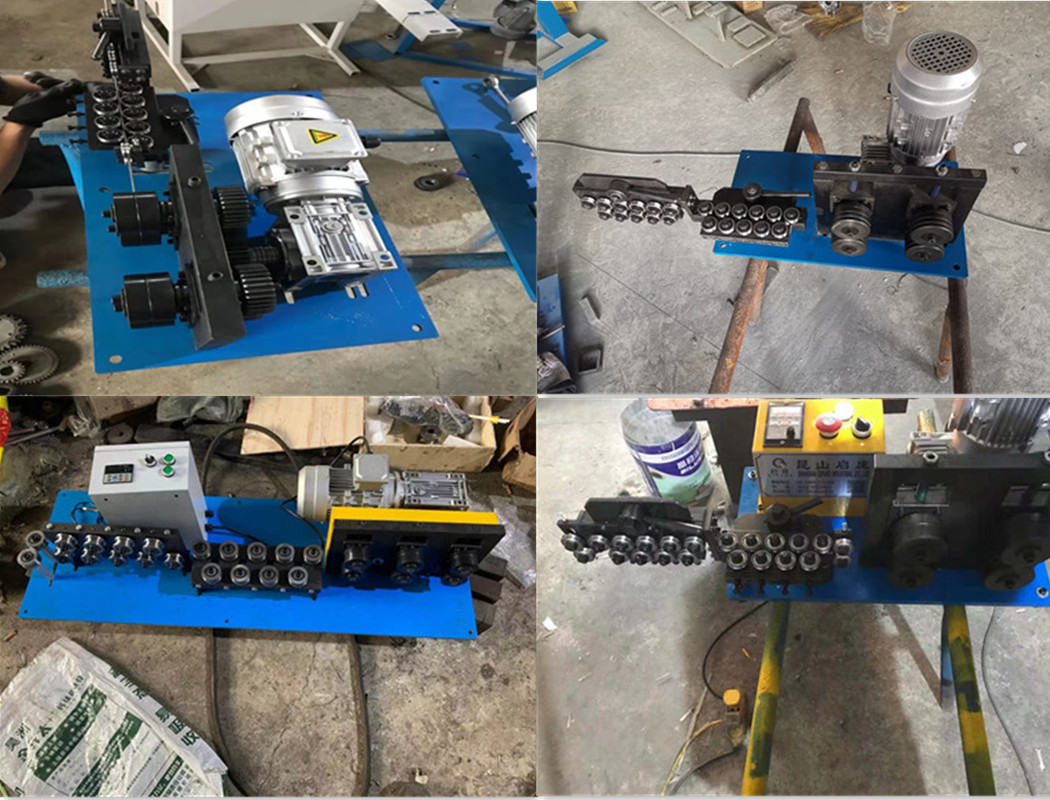

Straightener series
Straightener adjustment diagram

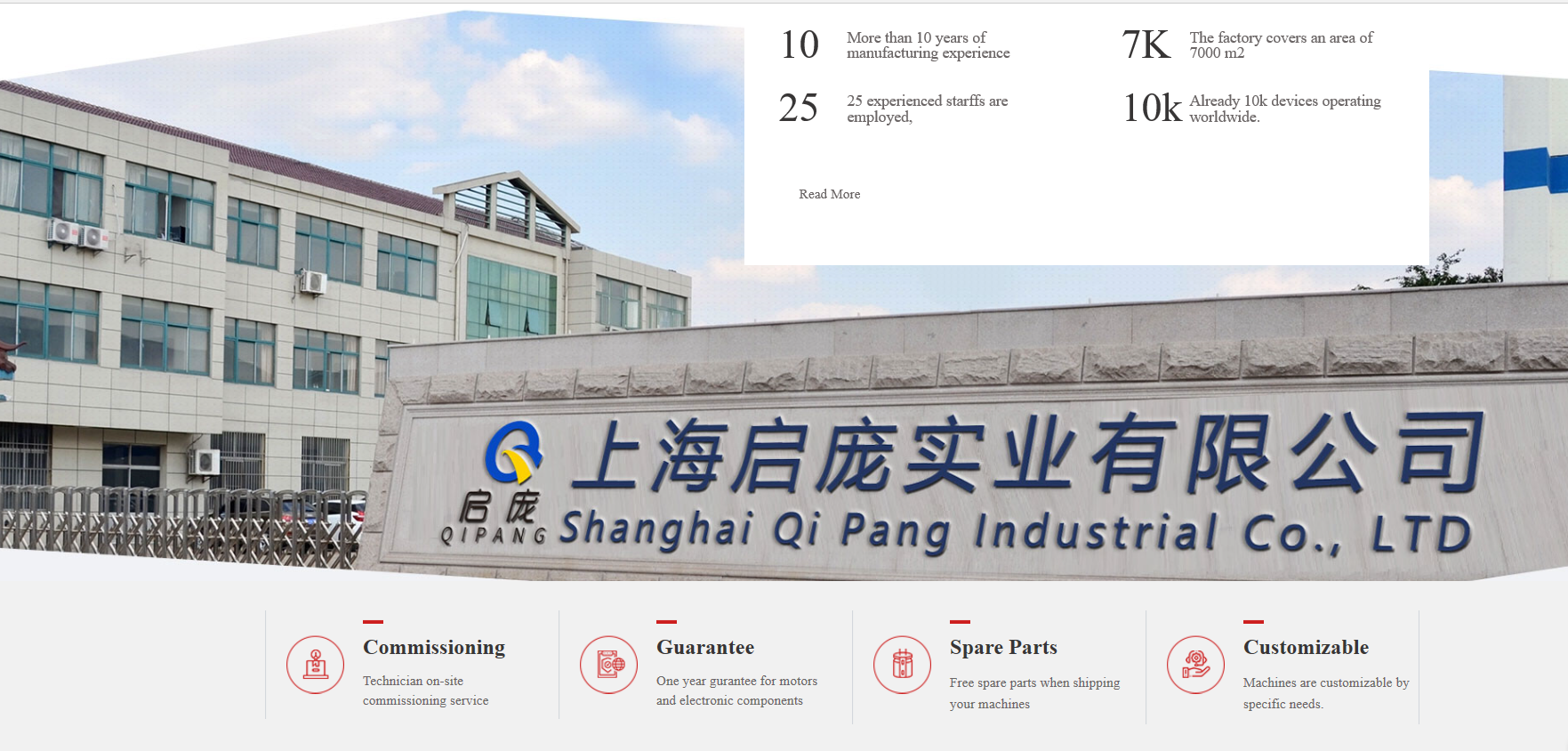

Our Company:

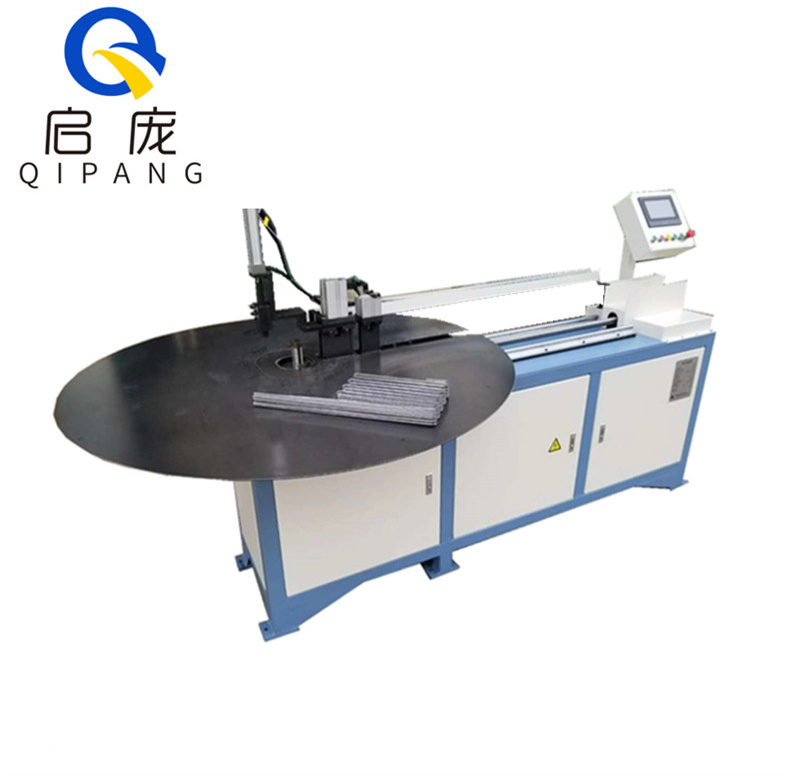

Shanghai Qibang Industrial Co., Ltd.Founded in 2000, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.
We believe that quality is survival, so we only provide you the best products.
High quality products, in line with international standards, well received by domestic and foreign customers.
All staff in our company are professionally trained, so we can recommend the most suitable equipment for you.
Every machine has to pass strict inspection before it goes out.
Any questions about the machine will be answered within 24 hours.
Welcome to be our new customer!
Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and rebar and tube cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.
Wire Straightener Machine After-sales service：
1.Maintenance period: one year
2.Training how to install the machine, training how to use the machine.
3.Engineers available to service machinery overseas.
4.Test the machine before shipment
5.Provide technical guidance relate to use the machine
6.Provide the spare parts at cost price after warranty period
7. Collect the feedback for the machine working
Pls tell me the following questions, so we can send you accurate quotation with additional discount:
1，What's the diameter of your steel wire ? Minimum and maximum range，How to choose the right straightener according to their own material?
2，Does the raw material come in rolls, in bundles, Hollow roll or solid material?
3，Have you used it before? Now do you have any pictures you want to send to us?
4，If you are interested in our products, please contact me as soon as possible, I will offer you some discounts, you can contact me freely ：13472630866
FAQ:
Q:How about your after-sale service?
A:We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q: What are your payment terms?
A:100%TT or prepaid 50% , balance 50% before shipping.
Q: How can I get my order? How can I know you sent the goods?
A:We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes or wooden cartons.
Q: Will you send the installed machine or machine parts?
A:We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
