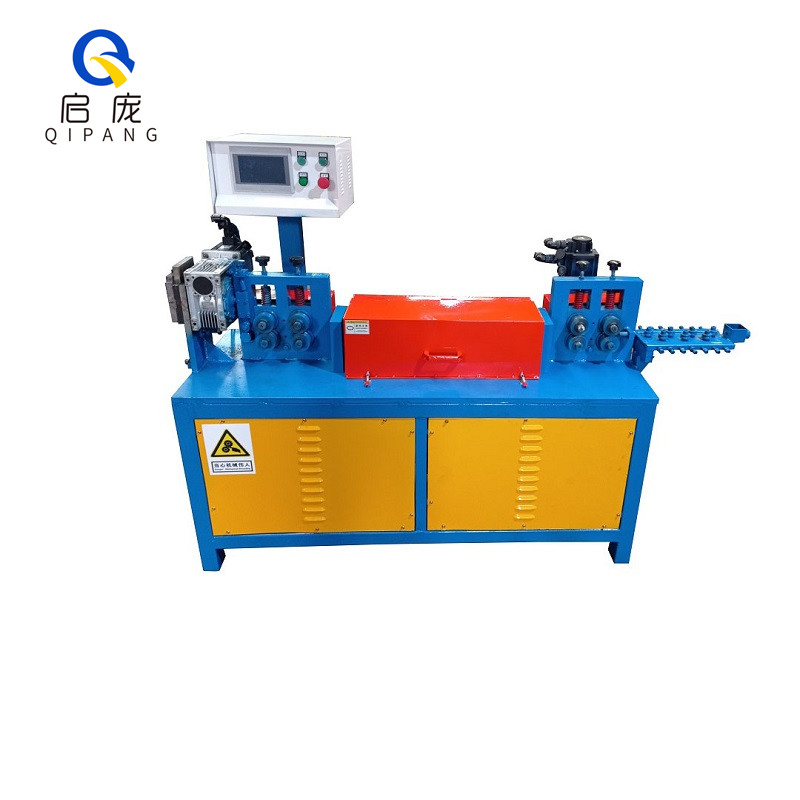

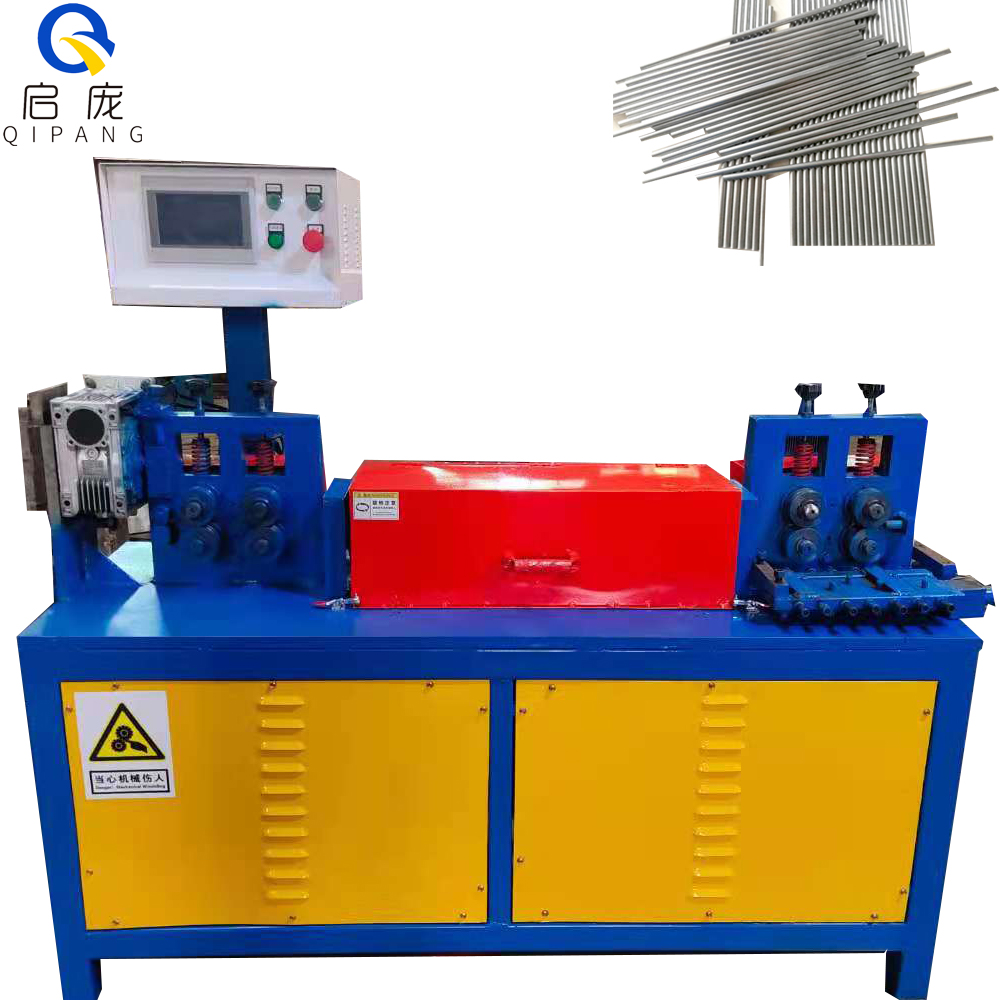

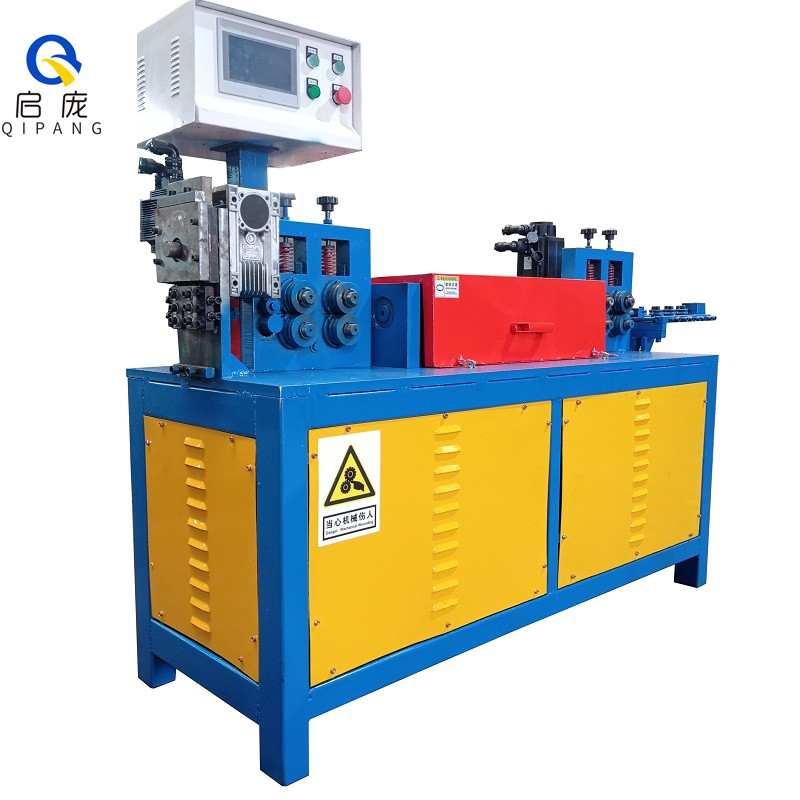

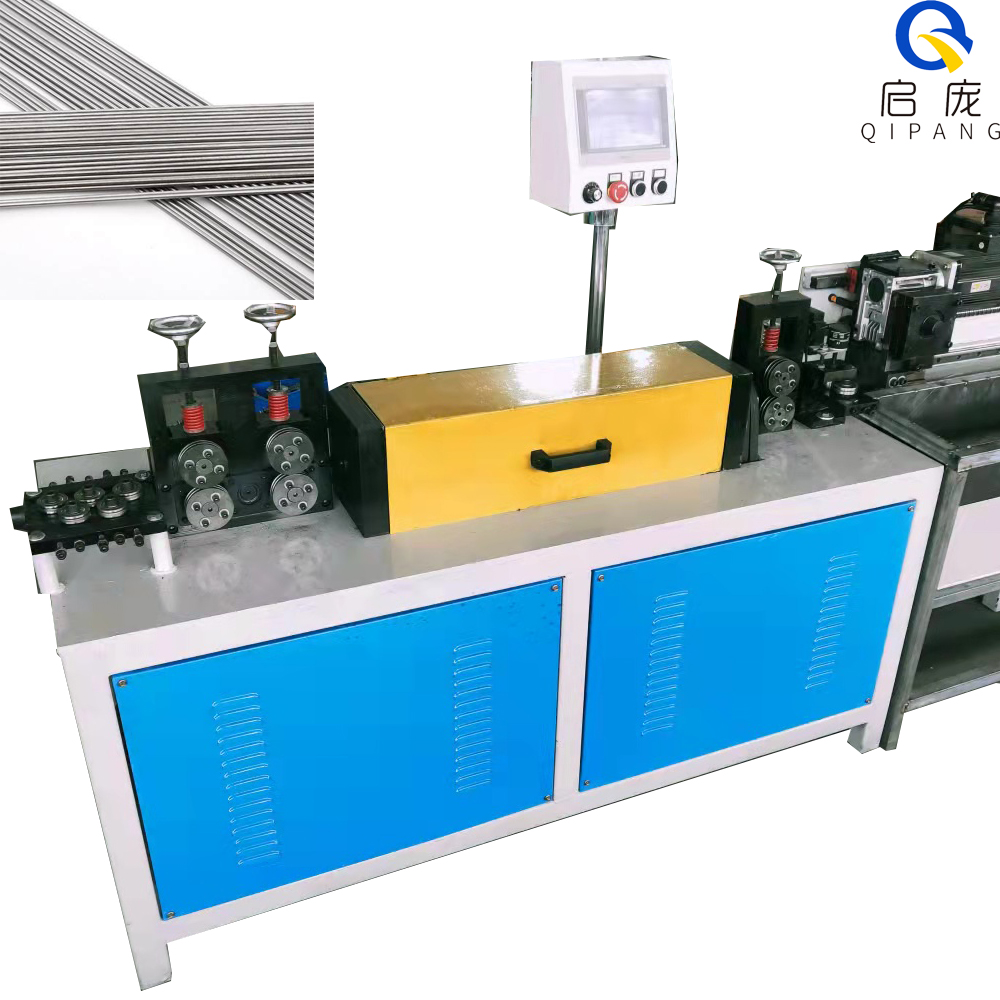

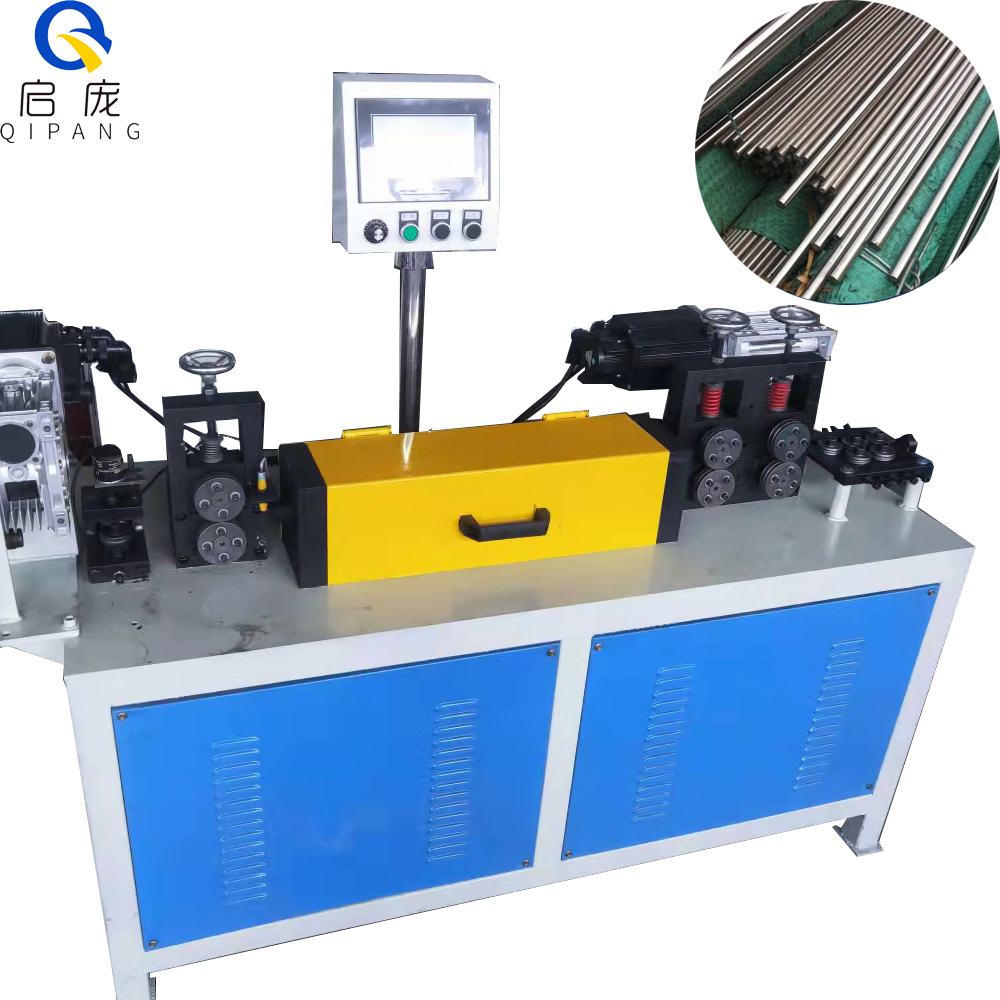

QIPANG 3-6mm straightener machine and cutting machine straightening mechanismQIPANG 3-6mm straightener machine and cutting machine straightening mechanismQIPANG 3-6mm straightener machine and cutting machine straightening mechanismQIPANG 3-6mm straightener machine and cutting machine straightening mechanismQIPANG 3-6mm straightener machine and cutting machine straightening mechanism

QIPANG 3-6mm straightener machine and cutting machine straightening mechanism

QIPANG 3-6mm straightener machine and cutting machine straightening mechanism

1. CE&SGS certification

2. Good quality and professional service

3. 10 years of development,manufacturing, market experience

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory


Share:
  • QIPANG 3-6mm straightener machine and cutting machine straightening mechanism
  • QIPANG 3-6mm straightener machine and cutting machine straightening mechanism
  • QIPANG 3-6mm straightener machine and cutting machine straightening mechanism
  • QIPANG 3-6mm straightener machine and cutting machine straightening mechanism
  • QIPANG 3-6mm straightener machine and cutting machine straightening mechanism
  • Description

QIPANG 3-6mm straightener machine and cutting machine straightening mechanism

1, Single and dual plane straightener models JZQ 8-20/5 BV

2,Quantity of roller in stock 5 ,From 5 ~ 19 rollers

3,Roller diameters 70mm-120mm (2.8688"---4.7245")

4,Adjustable rollers on the upper row

5,   Rollers available for light or heavy duty applications

6,Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)

7,Rollers are standard "V" groove profiles but can be provided with "U" grooves 9,according to customer requirements

8,Electrical appliances: standard 0.75KW+1:30 reducer, speed 10 m/min, motor reducer can choose different power (machine speed and voltage can be customized.)

9,Power supply: 380V, three-phase electricity, 50HZ

10,All components are installed on a table


*Wire Guide included


Straightener Type

1-3 CNC Double Servo Straightening and Cutting Machine
Machine size1.6*0.6*1.4 meters (manual measurement)
Motor power1KW cut-off motor, 2kw feeding motor, 3kw ordinary motor drives the straightening drum

The straightening part generally uses alloy half molds (special material molds can be changed for no scratch effect) (the molds without scratch effect wear faster)
PLC touch screen control system
Whole machine weight460kg
3-6 CNC Double Servo Straightening and Cutting Machine

Machine size1.6*0.6*1.4 meters (manual measurement)
Motor power2KW cut-off motor, 2.6kw feeding motor, 3kw ordinary motor drives the straightening drum

The straightening part generally uses alloy half molds (special material molds can be changed for no scratch effect) (the molds without scratch effect wear faster)
PLC touch screen control system
Whole machine weight460kg


Straightening effect display

QIPANG 1-3mm straightened stainless steel wire straightener machine and cutting machine straightening mechanism


Straightener series

6-25mm straightening  10mm copper pipe  Pipe straightening

Customer Make  QIPANG Wire Straightener

We can design and produce the wire straightener according to customer requirements.


1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base


Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.


Before making an order, had better consult with us.


The picture of factory

QIPANG 1-3mm straightened stainless steel wire straightener machine and cutting machine straightening mechanism



About us

With more than 10 years of experience:

QIPANG has established an excellent reputation in the industry through the highest quality products designed and manufactured by outstanding engineering teams and providing our customers. After more than 10 years of continuous supply and maintenance of the highest quality machinery, tools, and accessories to the wire straightening industry, this excellent word of mouth continues today.


Our Service
FAQ
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading
department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing
department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers
to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,
webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be
offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other
relative files for checking.

Q6 : Will you send the installed machine or machine parts?

We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine
Please contact us once the machine has any problem. Best service will be
offered.
