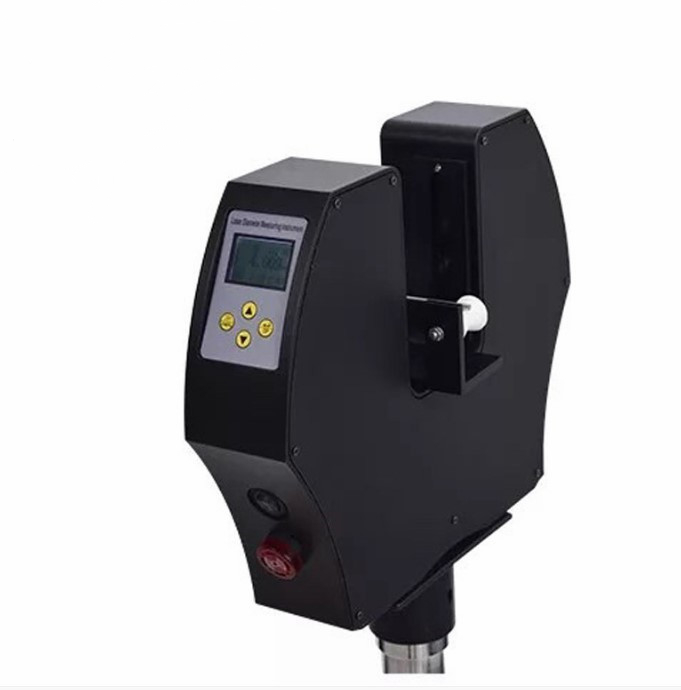

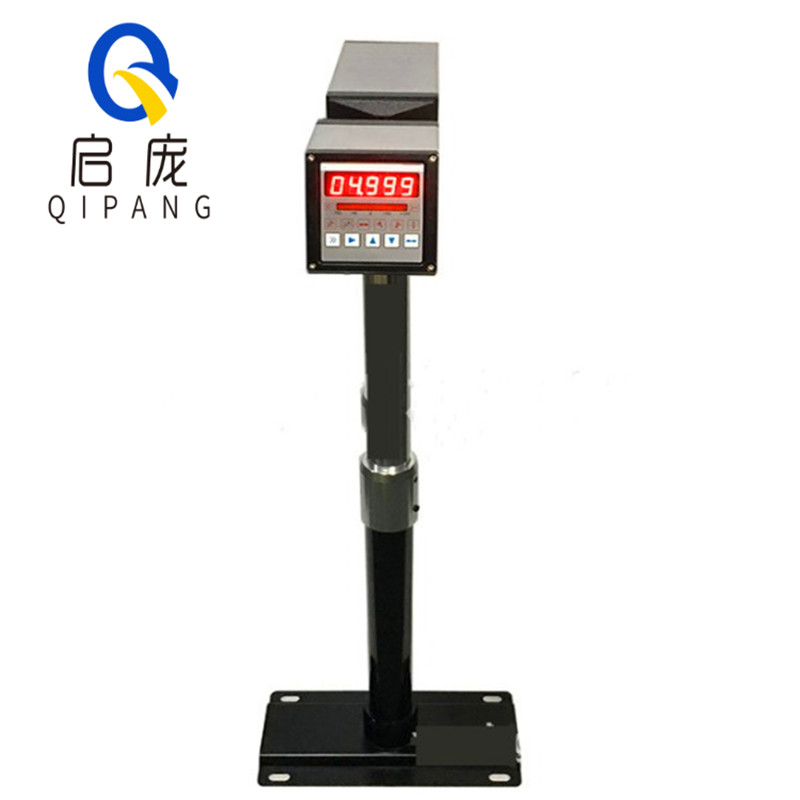

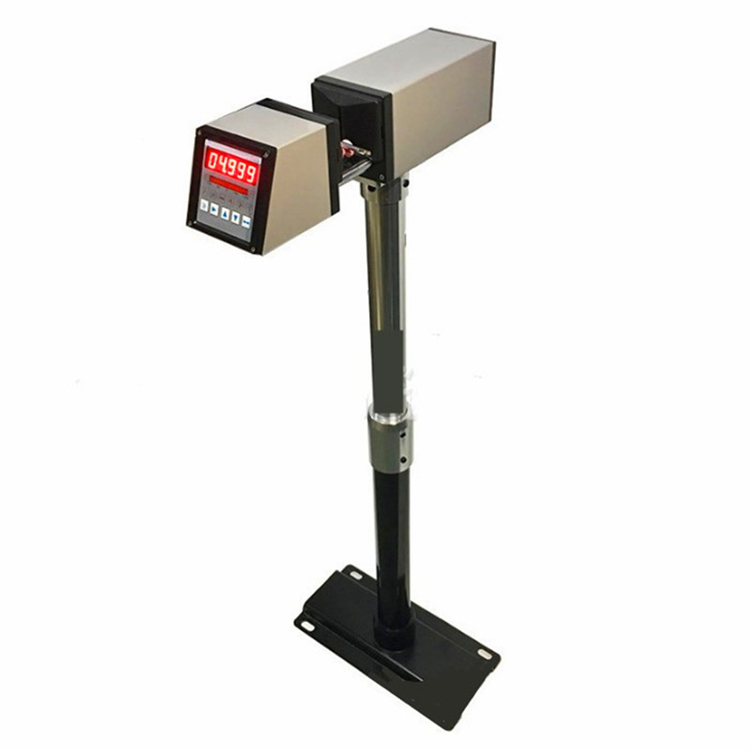

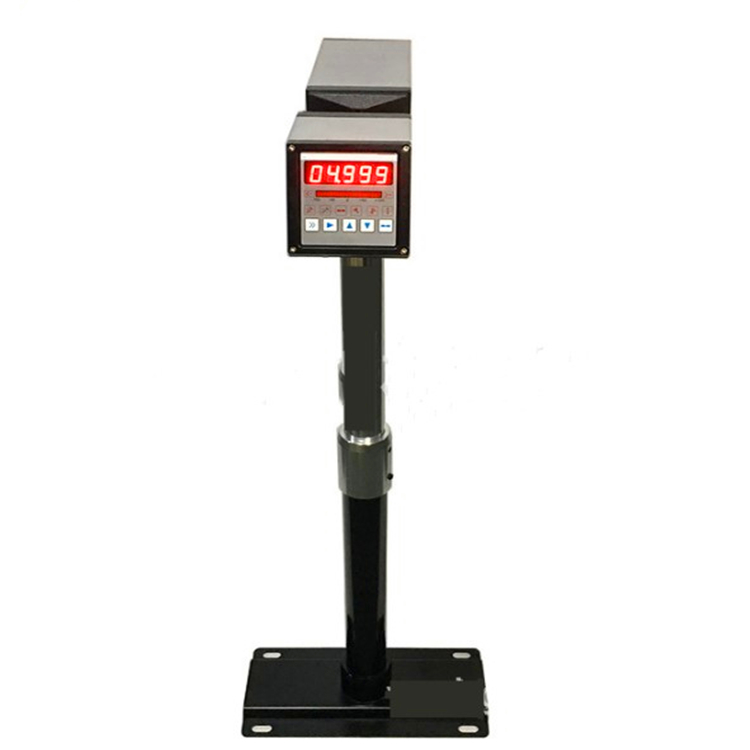

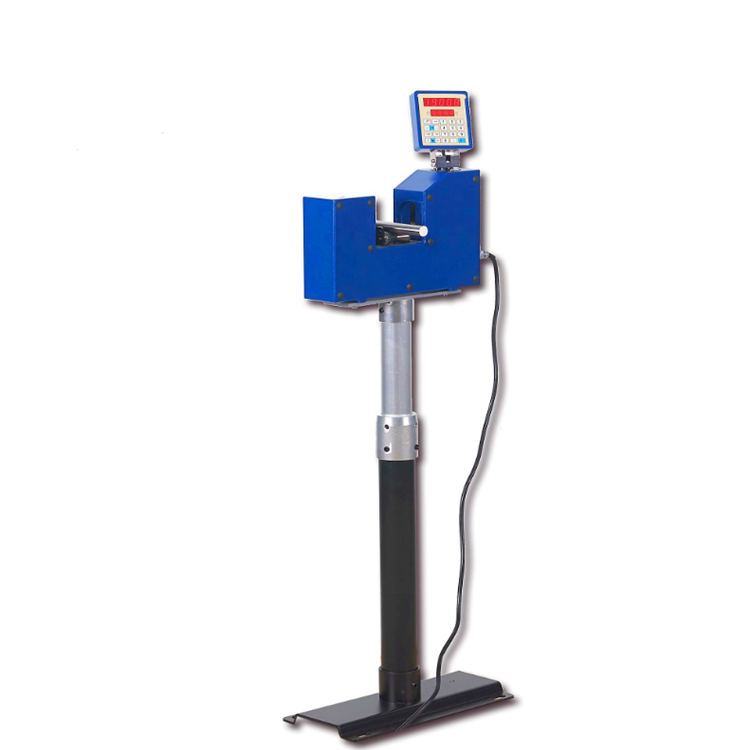

QIPANG 3025 Laser caliper Wire and cable testing equipment laser diameter gauge Diameter measurement

QIPANG 3025 Laser caliper Wire and cable testing equipment laser diameter gauge Diameter measurement measuring round products

1. CE&SGS certification

2. Good quality and professional service

3. 10 years of development,manufacturing, market experience

4. Flexible development and customization tools

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory

QIPANG 3025 Laser caliper Wire and cable testing equipment laser diameter gauge Diameter measurement measuring round products

The main technical parameters
	QP-3025	QP-3040	QP-70/90/100/140
Measuring range	0.1-25mm	0.5-40mm	1-70/120/140mm
Measurement accuracy	±0.002mm	±0.003mm	±0.004mm
Resolution	0.001mm	0.001mm	0.001mm
Lengthwidthheight	29066170mm	40068175mm	50486230mm
Weight	12KG	15KG	17KG

Applications
● Various transparent and translucent objects such as glass tubes and glass rods
● Local area network (LAN) cable
● Coaxial cable
● Optical fiber, flat cable
● Frequency camera cable, communication cable
● Power cables, pipes, wires
Product description ● Non-contact optical measurement
● Multi-angle display on the operation panel
● Laser or LED long-life light source
● Adopt advanced DSP processing technology
● Excellent dust and dirt resistance design
● Protection grade IP65, NEMA4
● S232/485 communication interface
● Fully automatic closed-loop control technology, automatic feedback control wire diameter
● The measurement is not affected by speed and vibration, and the wire diameter exceeds the tolerance automatically.
● Scanning speed 600 times/sec (up to 1400 times/sec at the fastest)

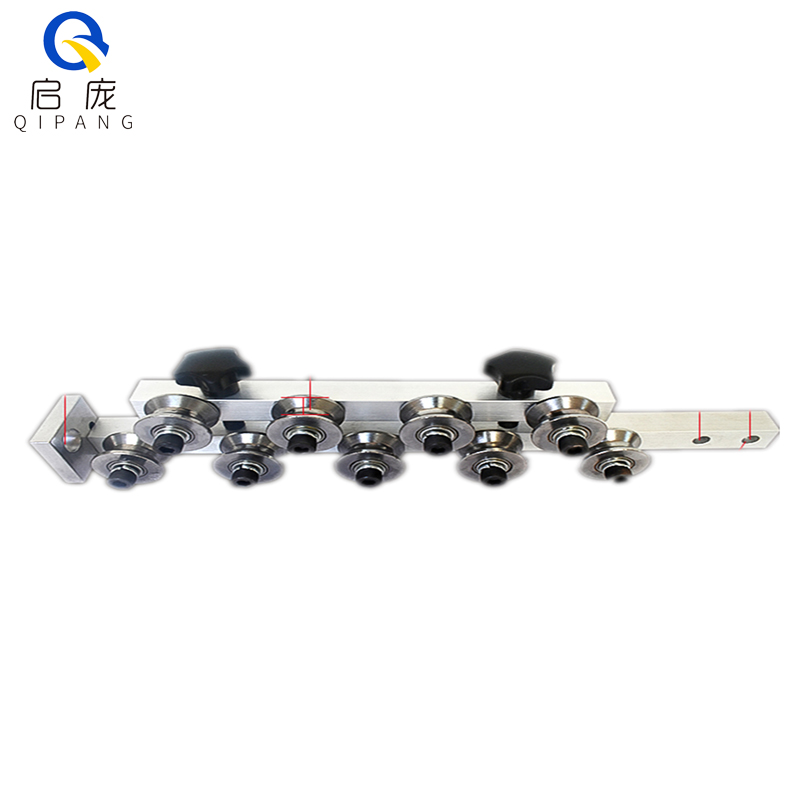

We can design and produce laser mesurement according to customer requirements.Customer Make QIPANG Wire Straightener

1. Material ( steel,copper )

2. Diameter of steel wire or steel tube or copper tube

3. Operating speed ( m / min )

4. Single plane or double plane

5. If need qucik lever, if need guide roller, if need solid base

Equipment Reconstruction and Update

Just tell us the maker or brand of used wire straightener, and then we help you to select, optimize the suitable resulatiuons.

Before making an order, had better consult with us.

We are leading manufacturer in China which specialized in products straightening and cutting machine supplying for over 10 years; good quality and professional service help us gain many good reputation all over the world; we hope you can join us in the future.

High-speed straightening and cutting machine Our company exhibit：

QIPANGN 1-6 MM high speed steel wire metal cable straightening pliers metal straightening and cutting machine

In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.

Since 2009, the metal products series machine has been provided.
