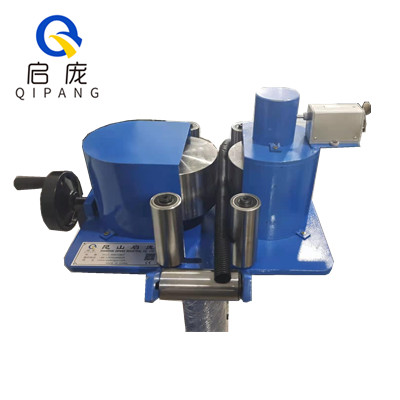

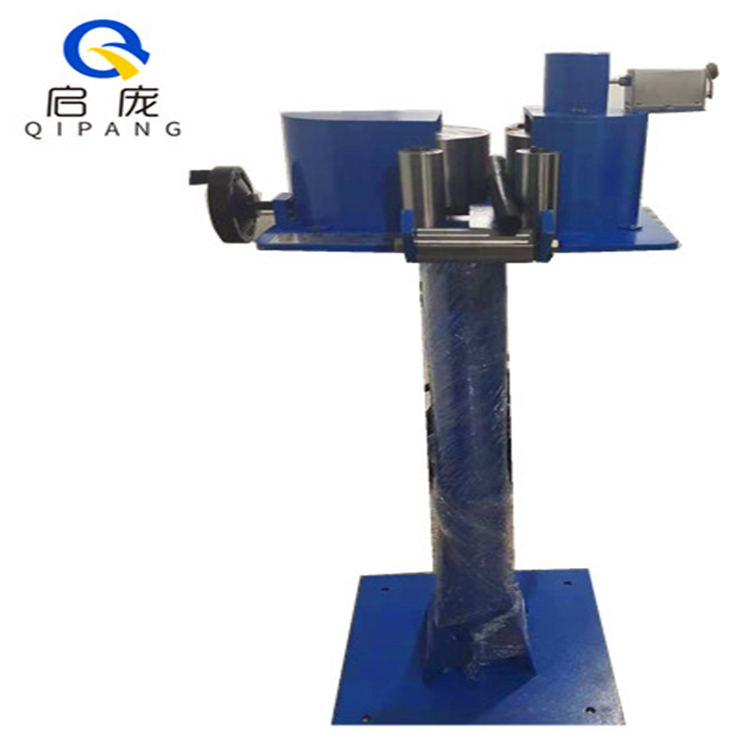

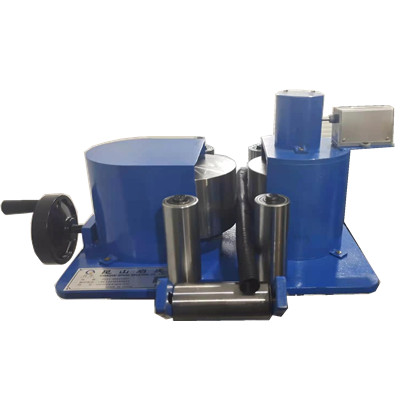

QIPANG 1-80mm Horizontal mechanical meter counter Meter-counting steel wheel drive
| Meter counting type | Vertical mechanical meter counter | Vertical mechanical meter counter | Crawler meter counter | Electronic meter counter | Horizontal mechanical meter counter |

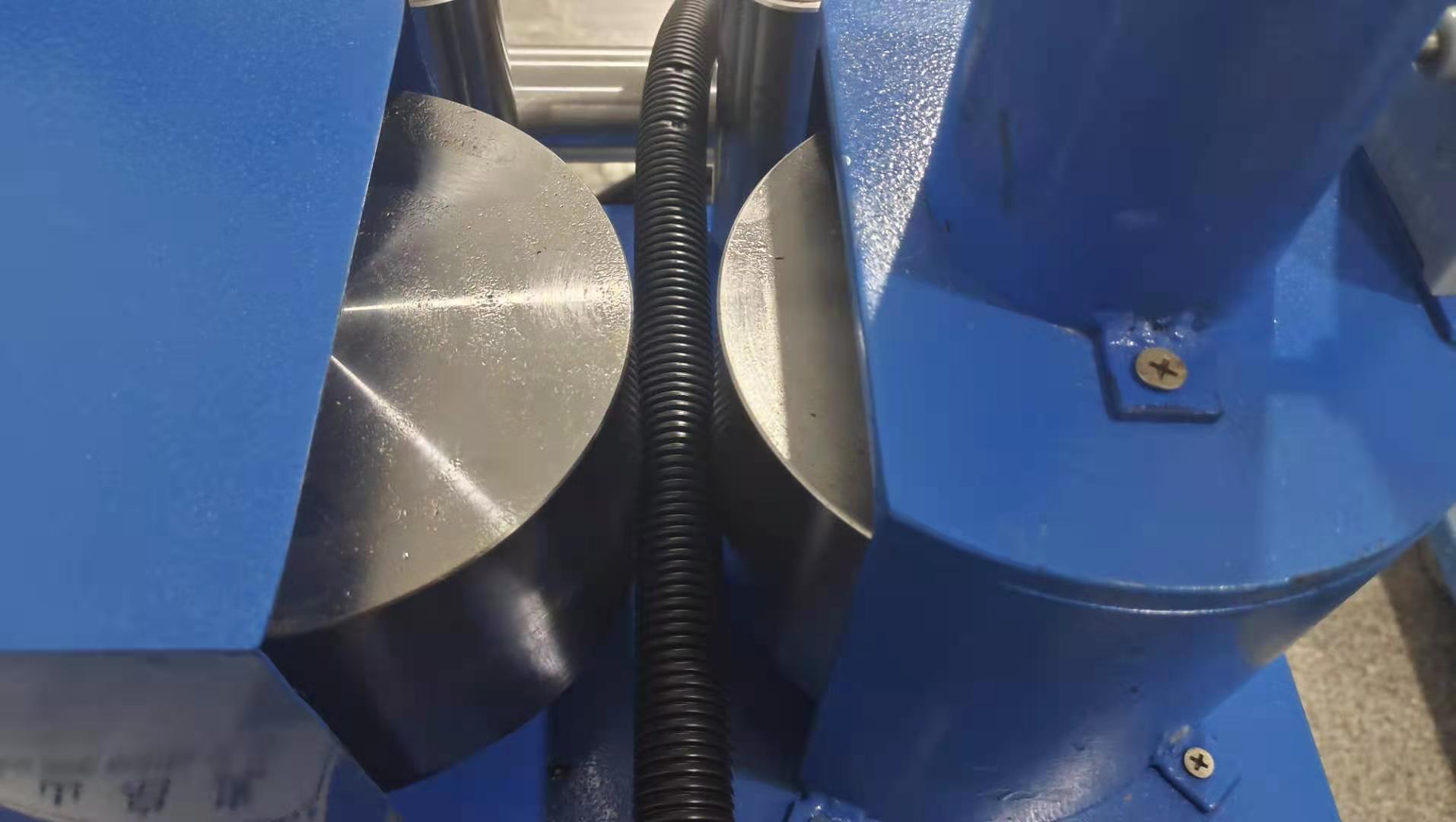

| Meter counting method | Meter-counting steel wheel drive | Meter-counting steel wheel drive | Track drive | Counting rubber wheel + porcelain spraying wheel drive | Meter-counting steel wheel drive |
| Meter wheel parameters | 159.15mm diameter | 159.15mm diameter | without | 159.15mm diameter | 159.15mm diameter |
| Synchronous wheel parameters | without | without | 5M*50*30 | without | without |
| Synchronous wheel parameters | without | without | HTD480- 5M | without | without |
| Meter range | 1-80mm | 3-150mm | 1-30mm (can be customized to increase 1-50mm) | 1-30mm | 1-80mm |
| Tolerance scope | 3‰ | 3‰ | 3‰ | 3‰ | 3‰ |
| Measuring speed | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min |
| Compression method | Handwheel screw type | Handwheel screw type | Spring tensioned | Handwheel screw type | Gravity compression |

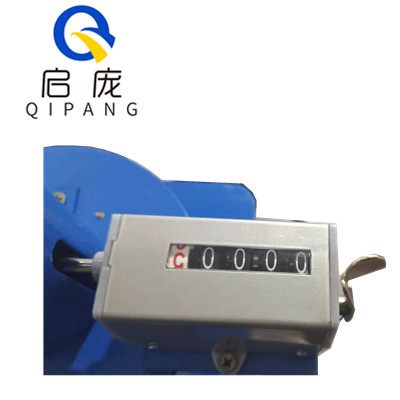

| Display method | Mechanical counter | Mechanical counter | Electronic display meter | Electronic display meter | Mechanical counter |
| Center height | Can provide parameter customization (Default one meter) | Can provide parameter customization (Default one meter) | Adjustable within the range of 300-1050mm | Can provide parameter customization (Default one meter) | Can provide parameter customization (Default one meter) |
| Measurement method | Mechanical counter | Mechanical counter | Encoder or induction can be used | Encoder or induction can be used | Mechanical counter |
| Incoming direction | Front and rear roller adjustment guide wire in and out | Front and rear roller adjustment guide wire in and out | Front and rear roller adjustment guide wire in and out | Front and rear roller adjustment guide wire in and out | Front and rear roller adjustment guide wire in and out |
| Overall appearance ruler | 620*690*1400mm | 620*690*1400mm | 600*260*1230mm | 500*360*1200mm | 500*360*1200mm |
| Weight | 66 kg | 80 kg | Total 42kg, 21kg without bracket | 40kg |
Horizontal mechanical meter counter Meter series：
About us
With more than 10 years of experience:
QIPANG has established an excellent reputation in the industry through the highest quality products designed and manufactured by outstanding engineering teams and providing our customers. After more than 10 years of continuous supply and maintenance of the highest quality machinery, tools, and accessories to the wire straightening industry, this excellent word of mouth continues today.
Committed to customer satisfaction:
QIPANG is known worldwide for developing and selling a wide range of straightening tools and accessories. We consistently use the highest quality materials and equipment to build our products, which has always been our corporate philosophy.
Here, we are committed to making quality and service satisfaction to our customers around the world. Whether our customers need standard products or custom-made products, QIPANG has the following qualities:
1. 10 years of development,manufacturing, market experience
2. A wide range of tool components
3. highest quality requirements and guarantees
4. Flexible development and customization tools
5. Excellent consulting team covering the world
6. Fast spare parts distribution and sufficient inventory
7. Guaranteed risk-free warranty management
8. Solutions, from the very beginning.
In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.
Since 2009, the metal products series machine has been provided.
After-sales service:
After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.
