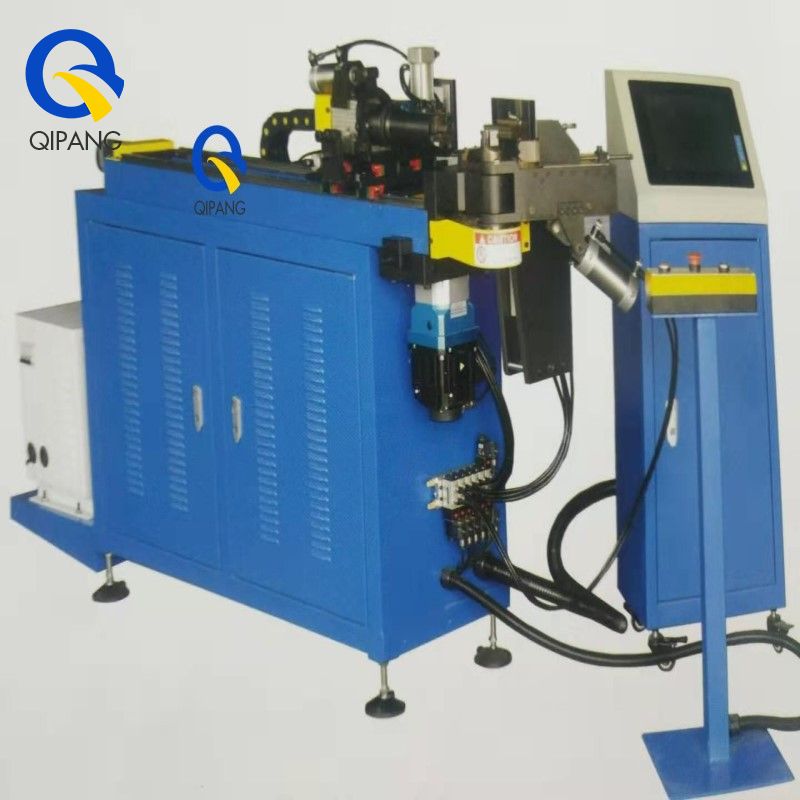

SB-38NC copper and aluminium tube bending machine

SB-38NC copper and aluminium tube bending machine

S-singal

B-bend

38-pipe diameter

NC-Automatic

Sb-38nc pipe bender is an automatic hydraulic pipe bender, which mainly consists of electrical control system, hydraulic system and mechanical structure.Its working principle is the working instruction by electric control system of electric hydraulic pump fluid pressure transferred to the cylinder, and driven by the main oil cylinder rack driving wheel is equipped with bend modulus gears on the spindle, the spindle drive curved pipe die do circular motion, at the same time, also by liquid pressure source make stuffing oil cylinder and guide die cylinder will be bent pipe tightly holding in round pipe bending die, so in round pipe bending die rotates to achieve the purpose of bend pipe coil.Each part of the action sequence program by the electronic control system PLC programming control.
