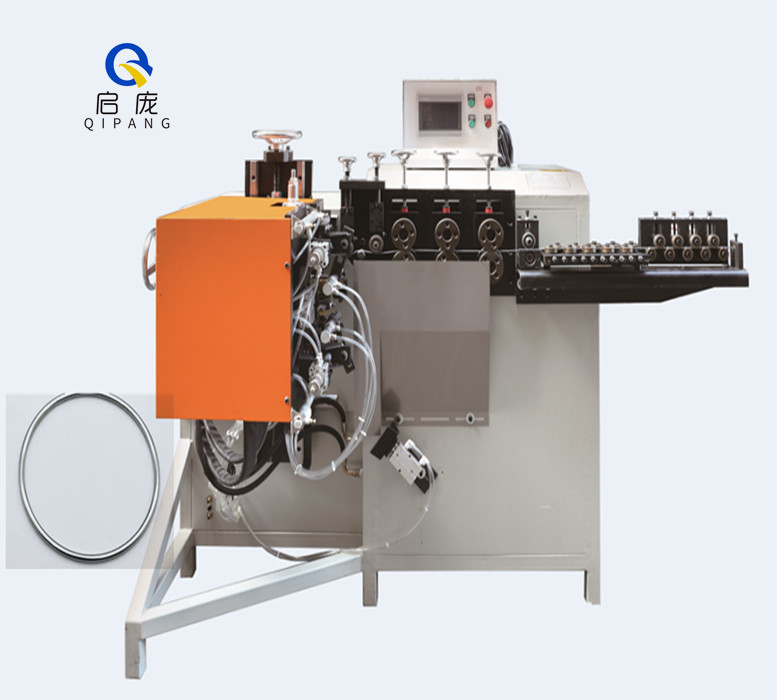

6mm stainless steel wire ring making 550mm diameter and Welding machine
3-8 Circular butt welding all-in-one machine parameters 30~600
Servo motor: 3.8KW
Hydraulic motor: 2.2KW
Feeding speed: 35m/min
Production speed: 15-18 pieces/minute (80 diameter as an example, the larger the diameter, the slower the speed)
Circle diameter: 30mm-600mm (more than 3mm wire diameter can make more than 400 large circles) 2-2.5mm circle diameter range 25-300 3-4mm up to 400 4-5mm up to 400 5-8mm up to 600
Circle diameter: 3mm-8mm (low carbon steel), perimeter tolerance: soil 0.2
Circle diameter tolerance: 0.5mm
Flatness: less than 0.5mm
Input voltage: 380V
Welding power: 120 intermediate frequency
Load duration: 50%
Compressed air pressure: 0.6MPa
Cooling water flow: 50L/min
Equipment dimensions (length*width*height) (mm): 1950*1450*1500
Total weight of equipment: 800KG
