Home > Qipang Product > Bending / Forming Machine

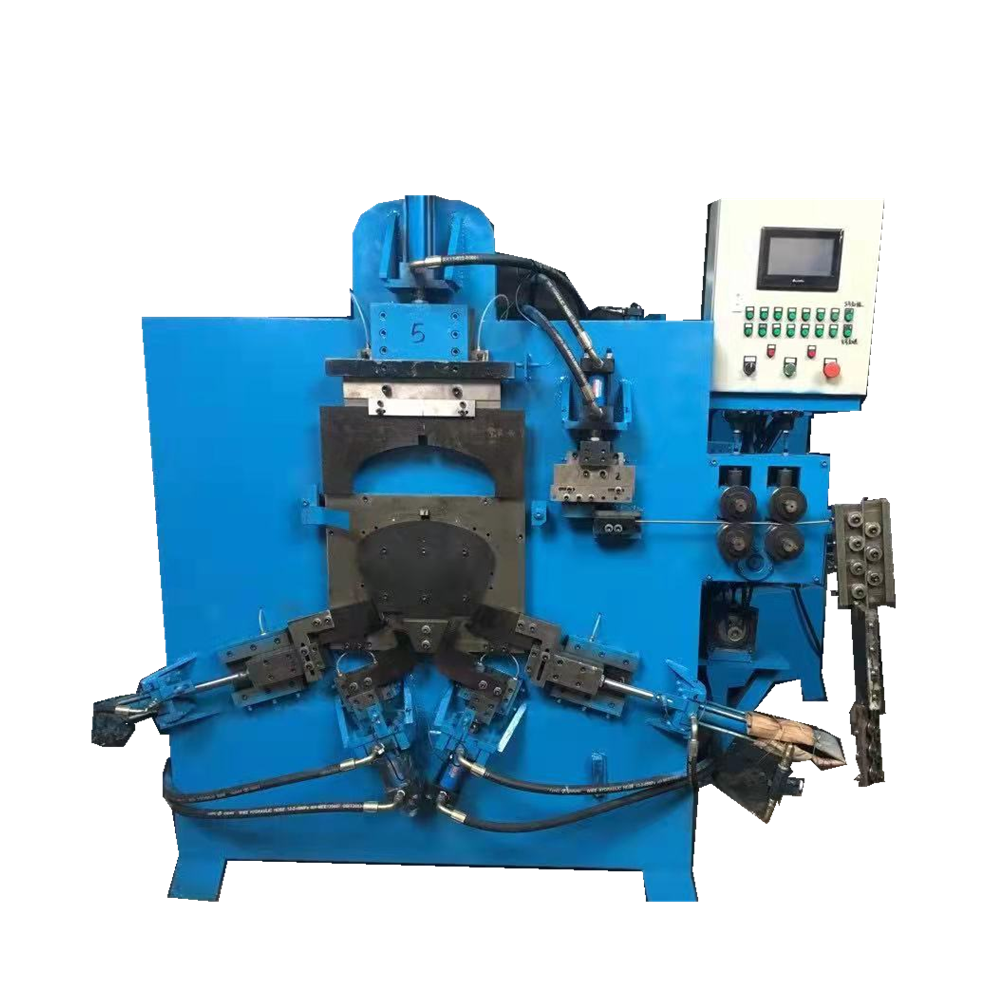

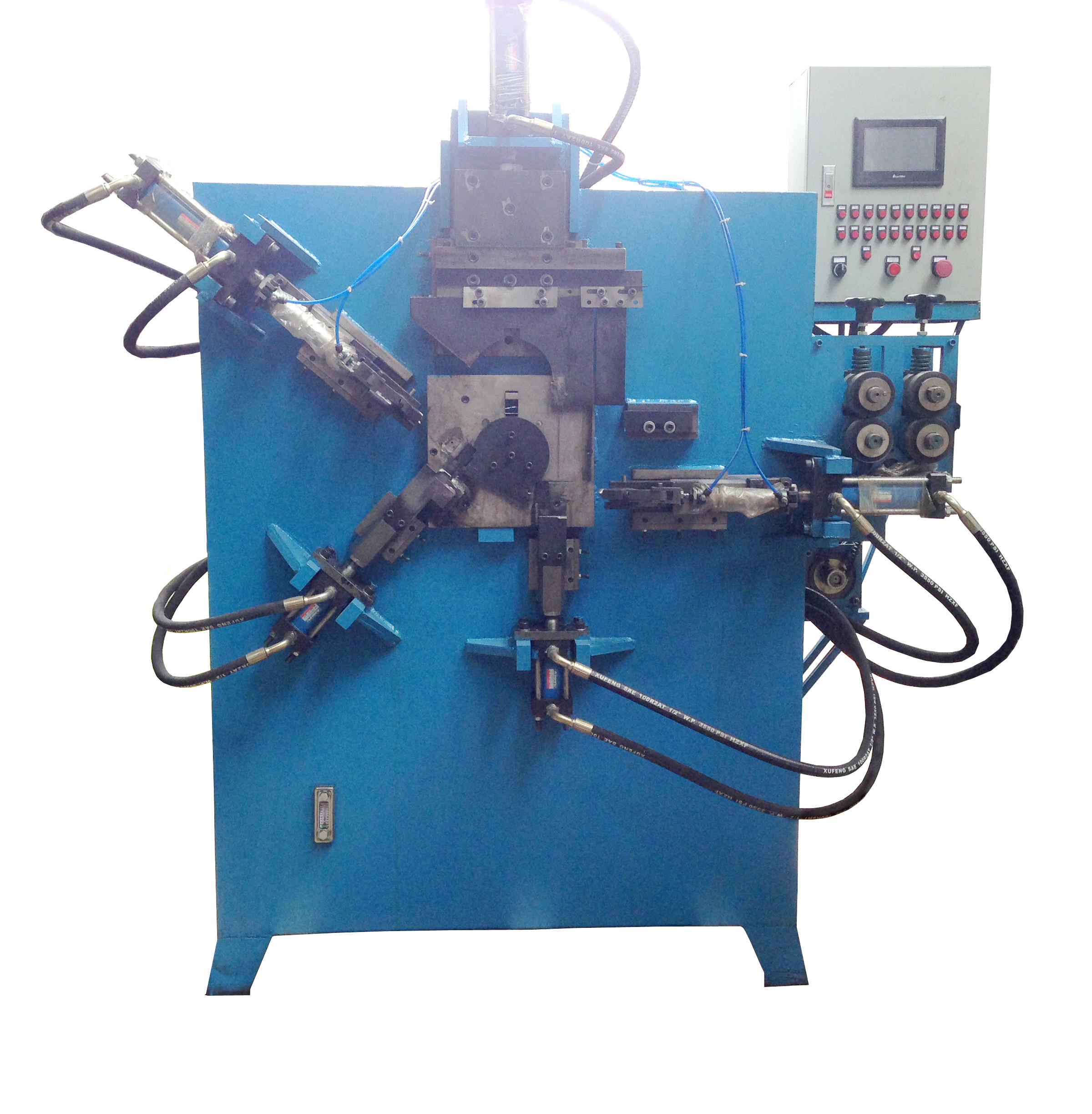

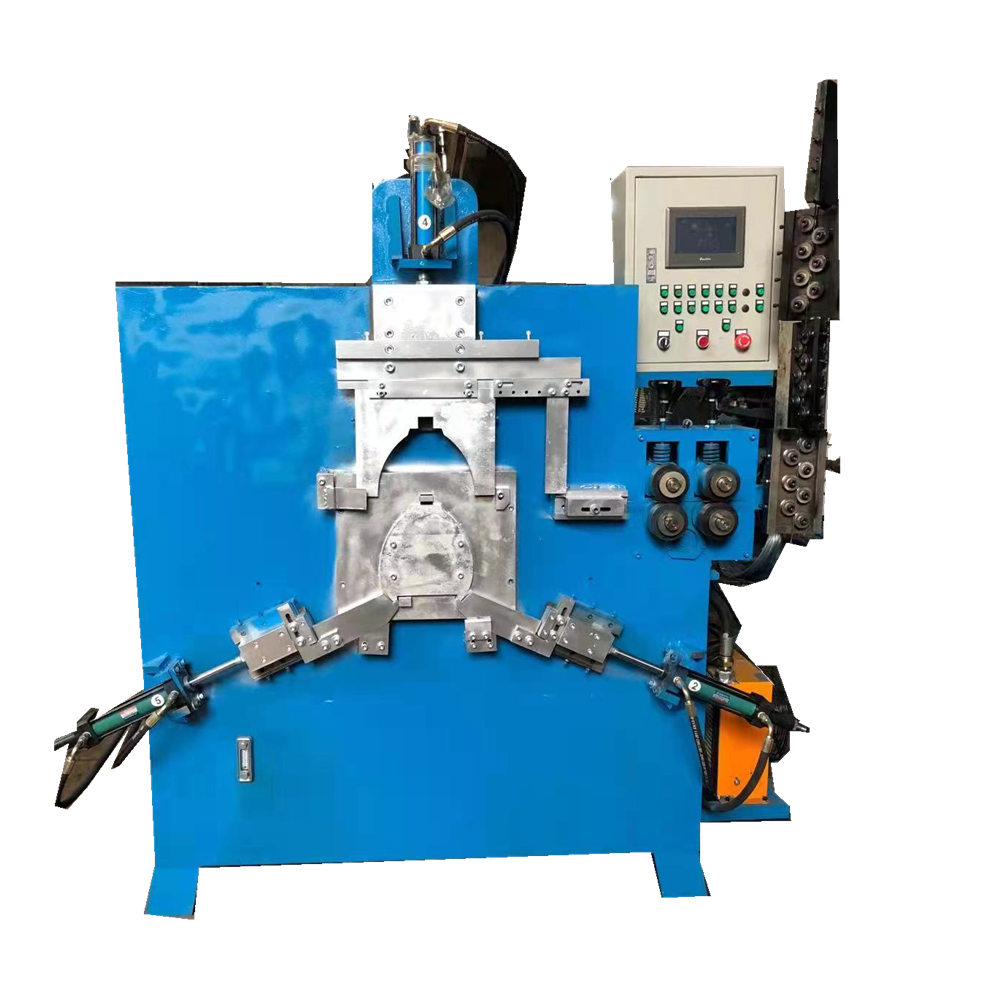

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wireHydraulic bending machine 2-6mm 2-7mm, bending machine for metal wireHydraulic bending machine 2-6mm 2-7mm, bending machine for metal wireHydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

1. We have CE&SGS certification,ISO1990 Quality system certification

2. Good quality and professional pre - sales, after - sales service

3. 10 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Greece), Southeast Asia, etc.

5. Excellent consulting team covering the world

6. Fast spare parts distribution and sufficient inventory


Share:
  • Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire
  • Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire
  • Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire
  • Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire
  • Description

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wireHydraulic steel wire bending machine equipped with stepping motor feeding, microcomputer control, make wire-feeding more accurate, with section counting, total counting function.

※ Roll head feeding, avoid scratching phenomenon of wire material.
※ Automatic feeding, cutting, forming, pushing, uninterrupted production.
※ Easy operation, stable quality, quick loading and high production efficiency.
※ Easy to adjust, only need to change the mold to produce different specifications.


Fine materials&workmanship, high comprehensive performance, long service life.


Specification


TYPE 1
Model1.5-5mm1.5-6mm1-5mm2-6mm2-7mm
Suitable wire diameter1.5-5.0mm1.5-6.0mm1.0-5.0mm2.0-6.0mm2.0-7.0mm
Max wire feeding length1000mm1000mm14"(600mm)650mm1000mm
Motor power5.5KW5.5KW3.0KW5.5KW7.5KW
Motivationhydrocylinder*1hydrocylinder*1stepmotor*1hydrocylinder*1hydrocylinder*1
Size(L*W*H)2450×1100×2100mm2450×1100×2100mm2000×700×1700mm2450×1100×2100mm2450×1100×2100mm
Weight1.2ton1.2ton800kgs1.2ton1.2ton
Production Ability16Arces/Min16Arces/Min20Arces/Min16Arces/Min14Arces/Min
ApplicationThis machine is suitable for the production of all kinds of steel wire, iron wire, stainless steel wire bucket handle, bucket hook, rubber bucket hook, different specifications only need to change the mold.Longer raw material can make finished product at one time



Factory Short & Packing

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

product details

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire


Others Products

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

Finished product display

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

Company development history

Shanghai Qibang Industrial Co., Ltd.Founded in 2000, with 13 years of experience, is a research and development, production, sales of wire straightening cutting machine, wire forming bending machine, molding machine, copper pipe cutting machine equipment as one of the large machinery manufacturing enterprises.

We believe that quality is survival, so we only provide you the best products.

High quality products, in line with international standards, well received by domestic and foreign customers.

All staff in our company are professionally trained, so we can recommend the most suitable equipment for you.

Every machine has to pass strict inspection before it goes out.

Any questions about the machine will be answered within 24 hours.

Welcome to be our new customer!

Shanghai Qi Pang Industrial Co., LTD. specializes in producing wire straightening machine and rebar and tube cutting machine with advanced production technology, modern production mode, complete varieties and diverse styles. We can provide you with not only the nice quality products but also the great services.




Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire


Hydraulic bending machine 2-6mm 2-7mm, bending machine for metal wire

QIPANG 1-20mm China made automatic coil pipe straightener and cutter for spring machine




In addition, QIPANG is located at Zhaofeng Road Subway Station, No. 11 Jiading Anting, Shanghai.

Since 2009, the metal products series machine has been provided.
