QIPANG belt traction outer diameter 42/53 roller straightener tube electric straightening machine
Mainly used on drawing machines
1, Single and dual plane straightener models JZQ 3-20mm/14BU
2, Quantity of roller in stock 14 rollers ，From 5 ~ 19 rollers per group (5+5,7+7,9+9,11+11,13+13,15+15,17+17,19+19)
3, Roller diameters Customizable 7-120mm (0.27559"-4.724409")
4, Adjustable rollers on the upper row
5, Rollers available for light or heavy duty applications
6, Model AS/AD for wire R = 60 N/mm2 (8400 psi) max. with normal rollers (single or double bearing)
7, Rollers are standard "U" grooves, according to customer requirements*Wire Guide
8, Belt traction, dedicated to hollow pipes
9, Motor 550W power, three-phase 380V 50HZ, or single-phase 220V 50HZ
10, With frequency control function
11, Speed : 8-10m/min, also can customized faster speed.
12, With a fixed plate

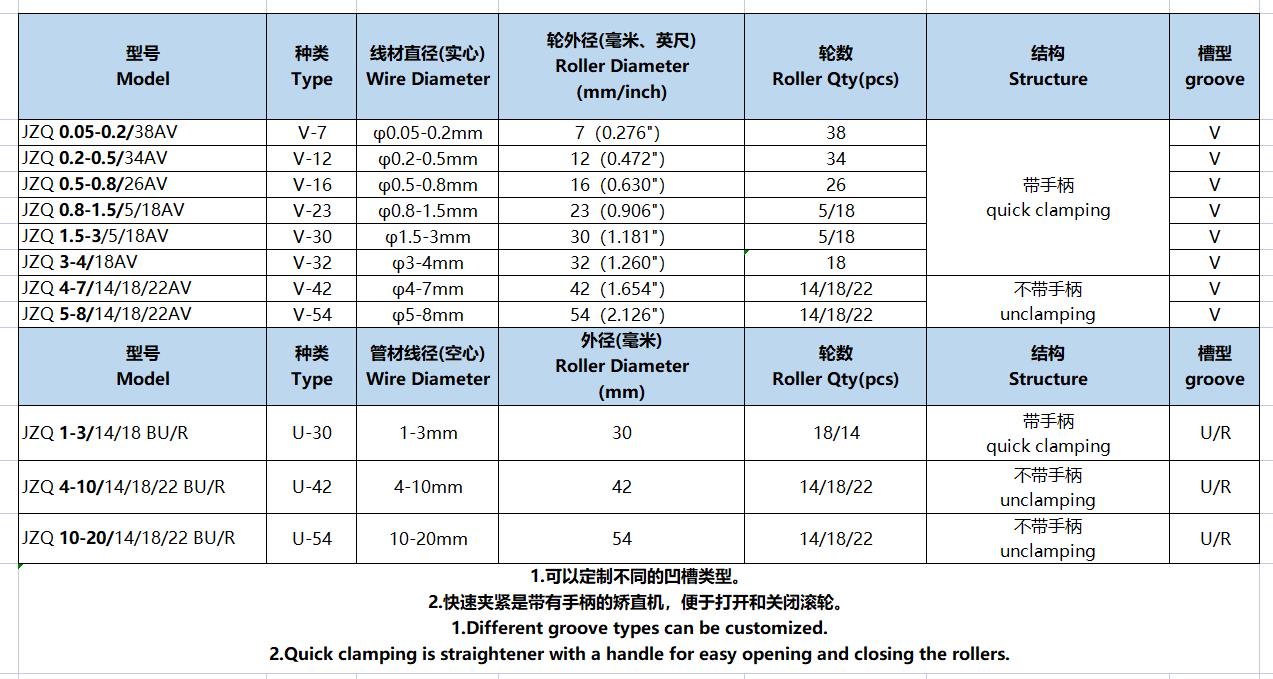

Straightener Type
Straightener adjustment diagram

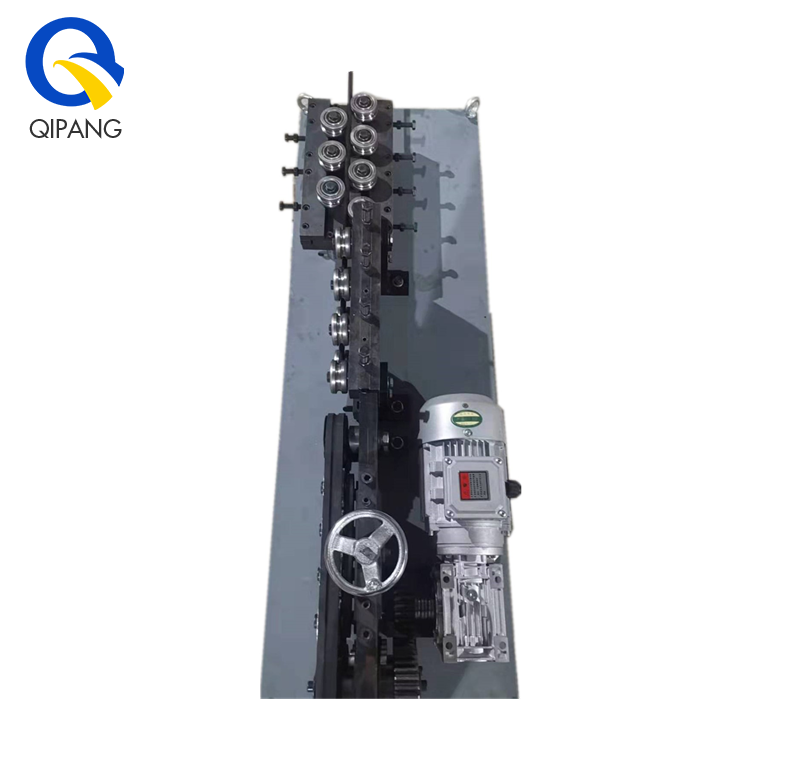

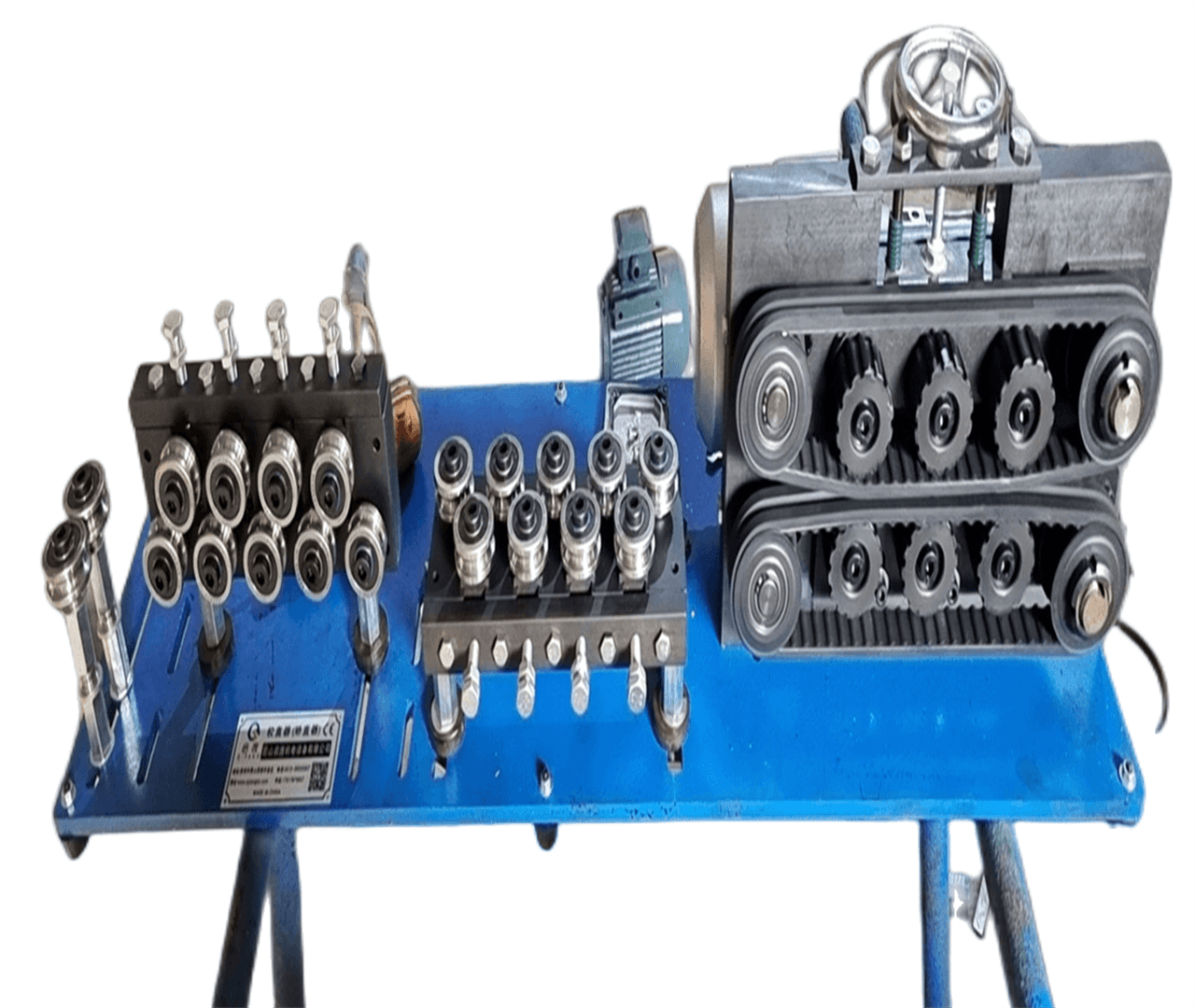

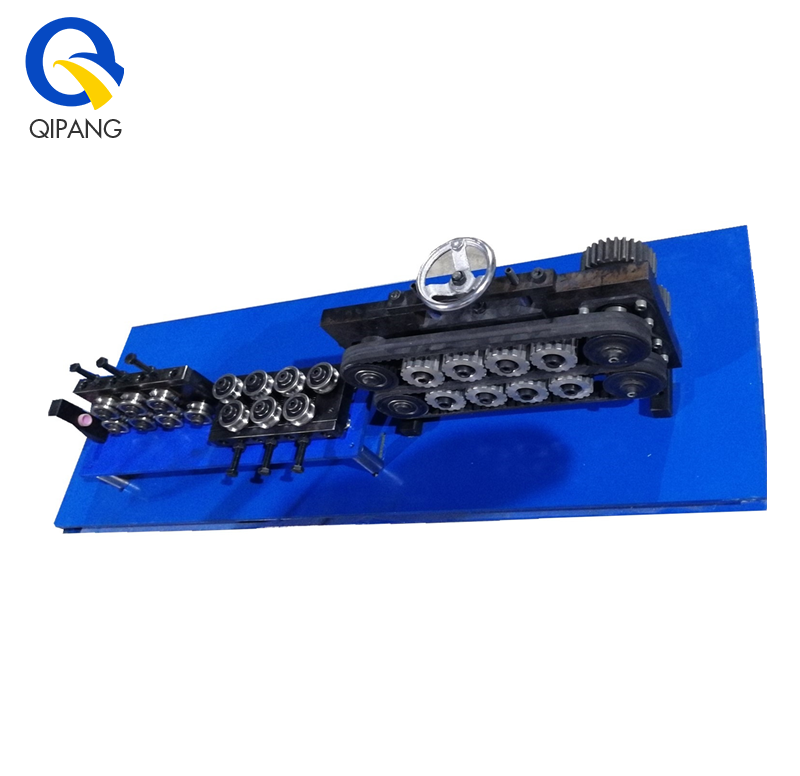

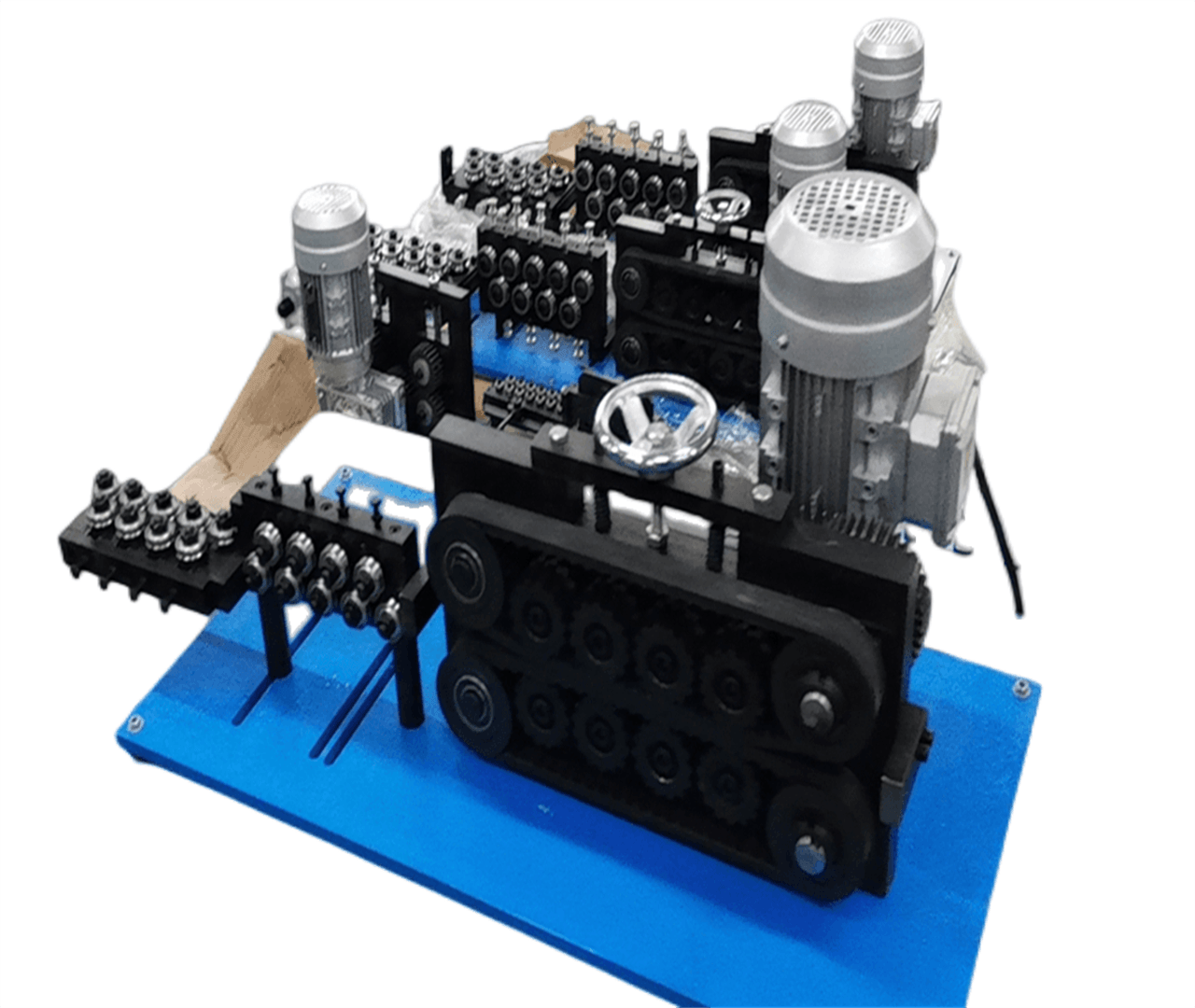

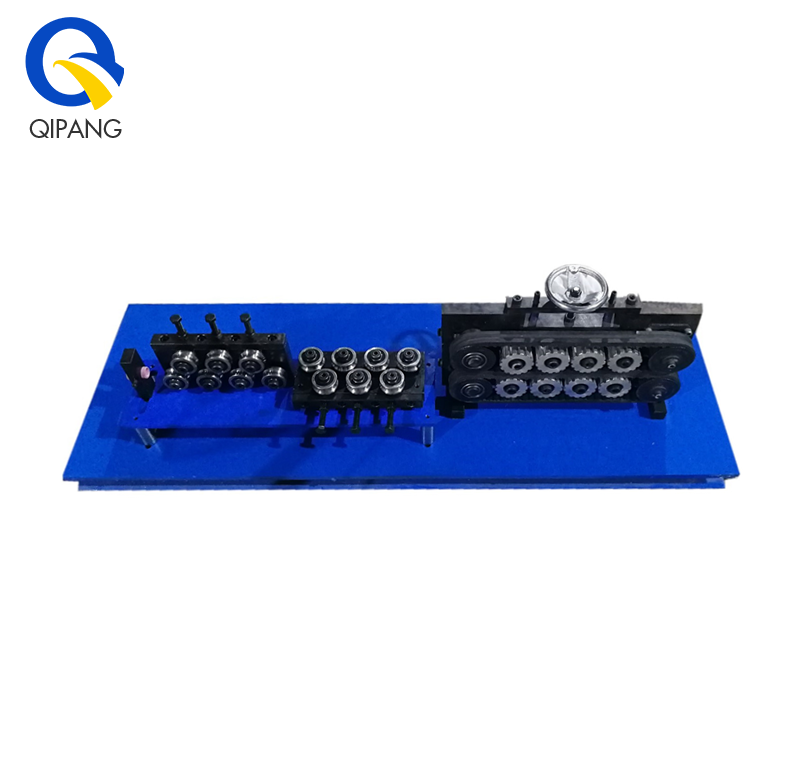

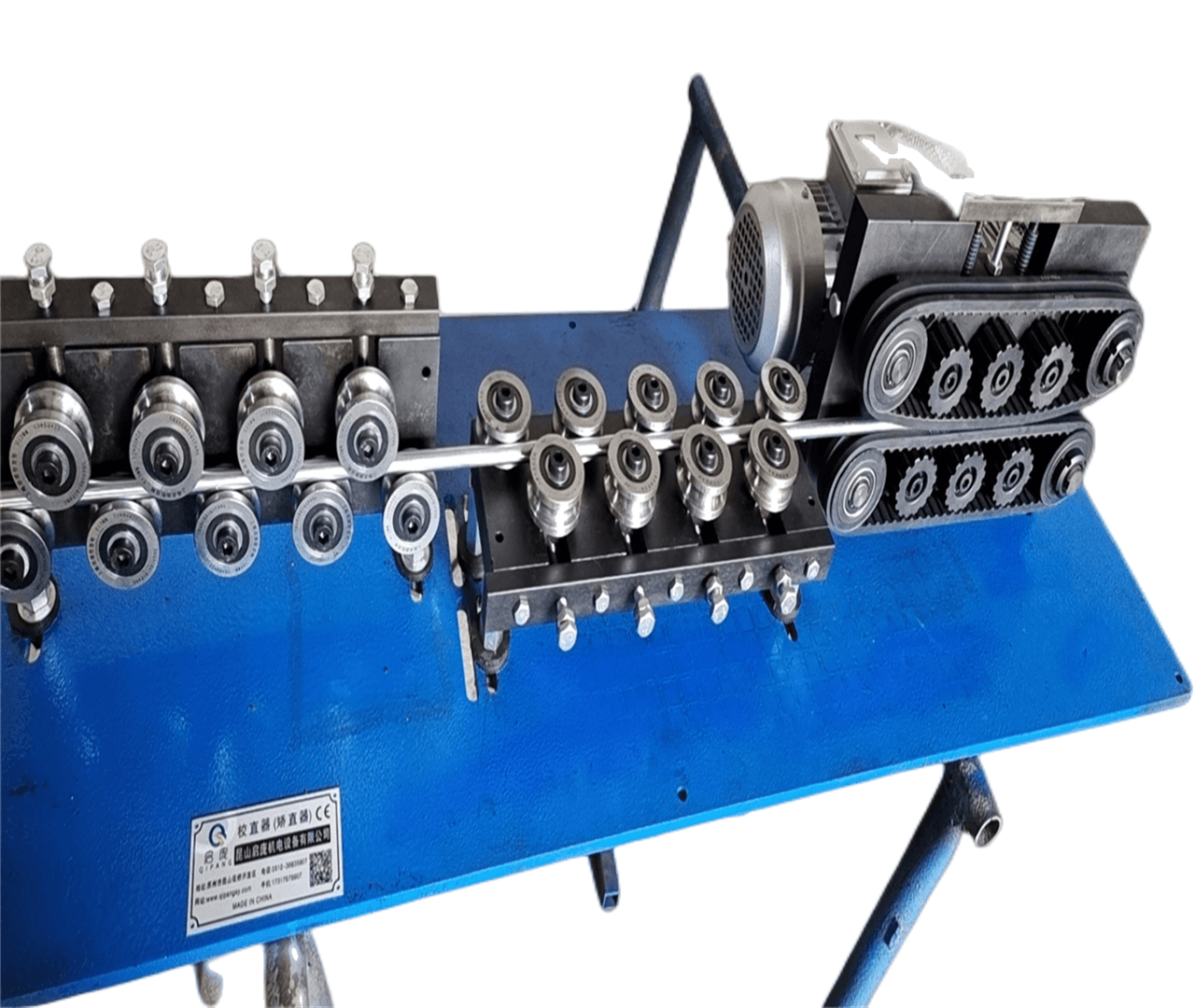

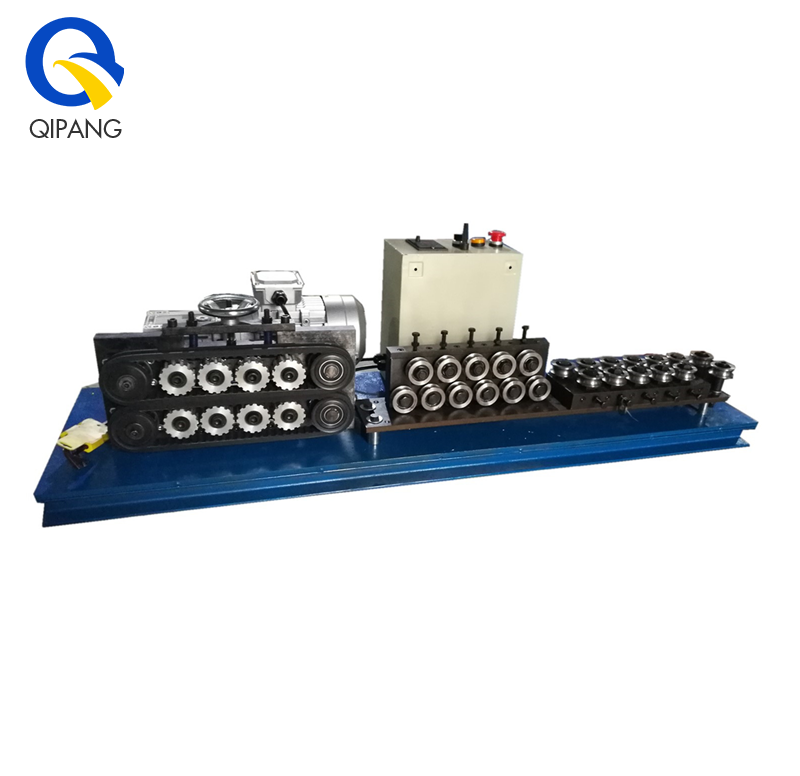

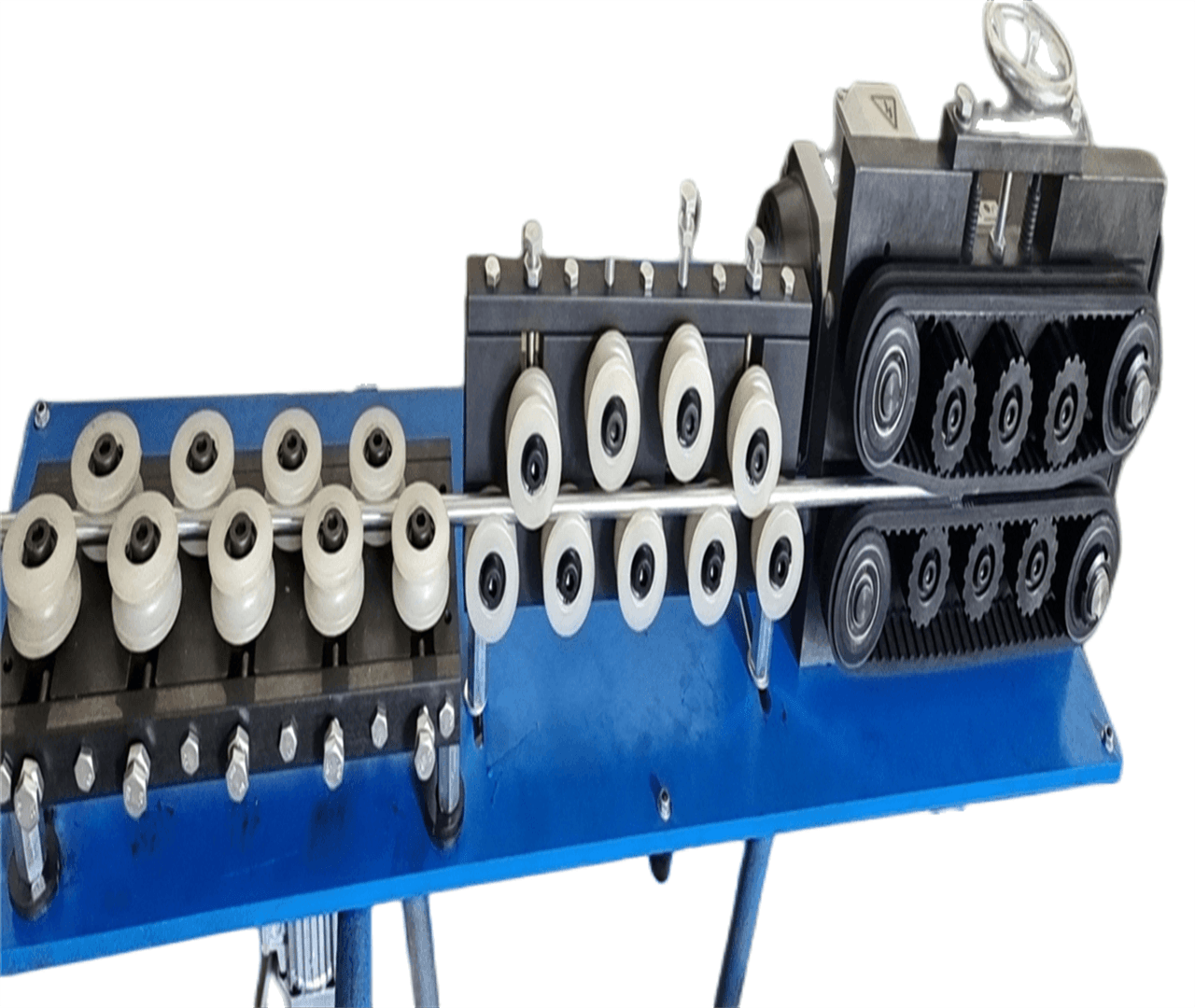

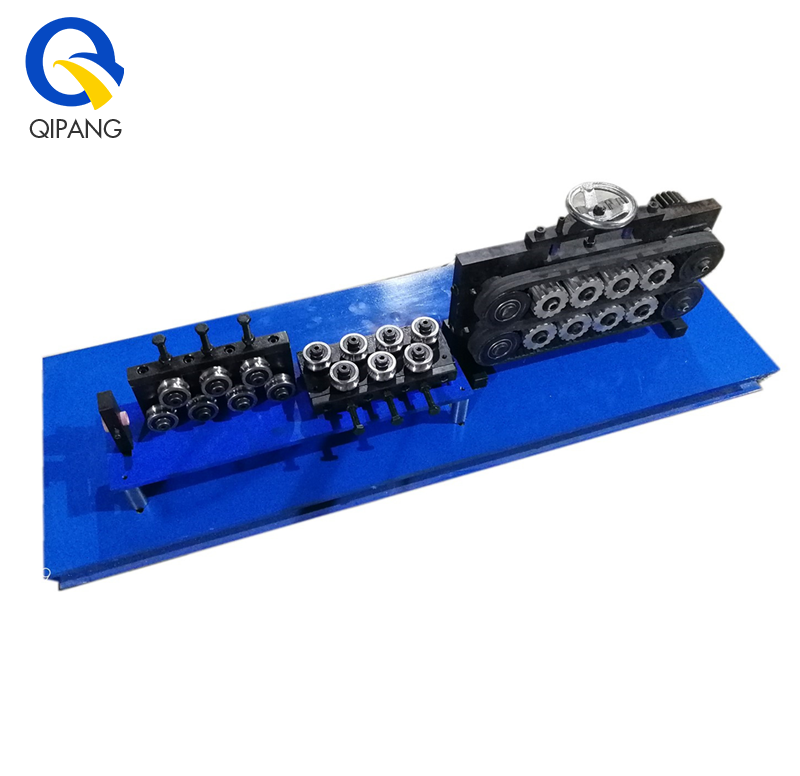

Product Display
